Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB11AP-FASWITCH PUSH SPST-NO 0.4VA 28V |
899 | - |
|
Datasheet | AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
BB16AH-FCSWITCH PUSH SPDT 0.4VA 28V |
1,570 | - |
|
Datasheet | BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

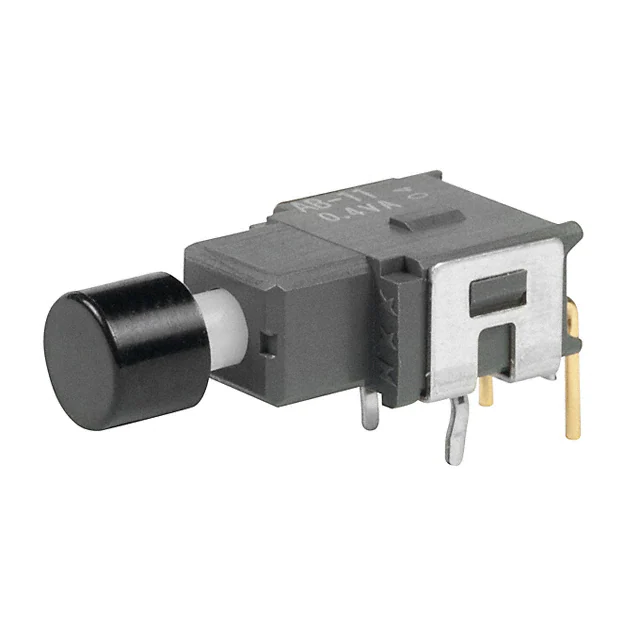

AB11AH-FASWITCH PUSH SPST-NO 0.4VA 28V |
701 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

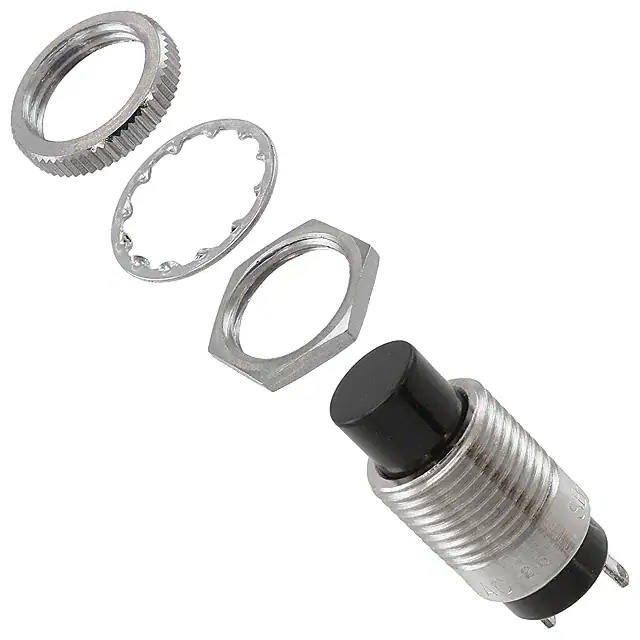

SB4011NOMSWITCH PUSH SPST-NO 3A 125V |
1,198 |
1+：$9.68800 10+：$8.36160 25+：$7.88416 50+：$7.54064 100+：$7.21160 250+：$6.79773 500+：$6.49982 1000+：$6.21442 |
|
Datasheet | SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
M2B15BA5G13-CGSWITCH PUSH SPDT 0.4VA 28V |
5,387 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

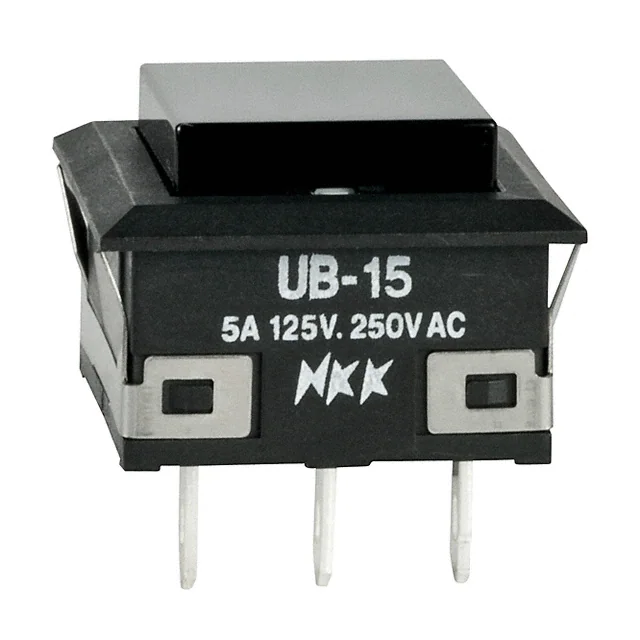

UB15KKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
406 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
G3B25AH-R-XCSWITCH PUSH DPDT 0.4VA 28V |
2,453 | - |
|
Datasheet | G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
UB15SKG035F-FFSWITCH PUSH SPDT 0.4VA 28V |
192 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15SKW035F-JFSWITCH PUSHBUTTON SPDT 5A 125V |
446 | - |
|
Datasheet | UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

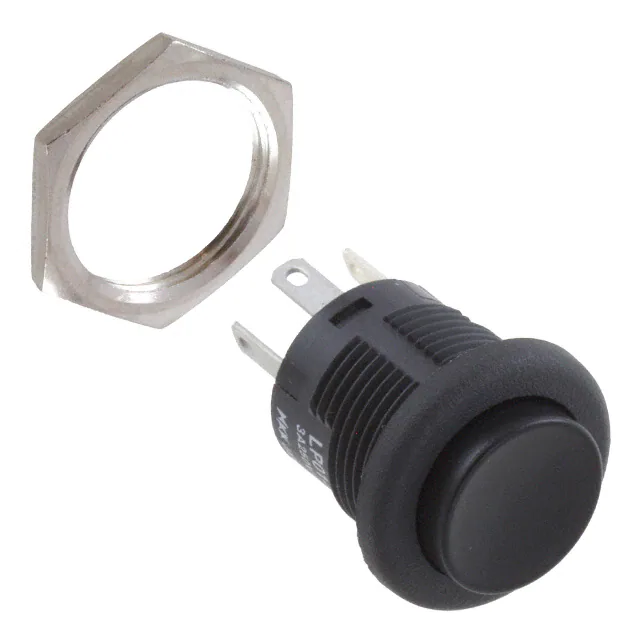

LP0115CCKW01ASWITCH PUSHBUTTON SPDT 3A 125V |
1,018 | - |
|
Datasheet | LP01 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
