Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BB16AHSWITCH PUSH SPDT 0.4VA 28V |
962 | - |
|
Datasheet | BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
BB16AP-HASWITCH PUSH SPDT 0.4VA 28V |
2,051 | - |
|
Datasheet | BB | Box | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
FB15ANEP2-HBSWITCH PUSH SPST-NO 0.5A 125V |
1,148 | - |
|
Datasheet | FB | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
AB15AVSWITCH PUSH SPDT 0.4VA 28V |
1,319 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
BB15ABSWITCH PUSH SPDT 0.4VA 28V |
131 | - |
|
Datasheet | BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

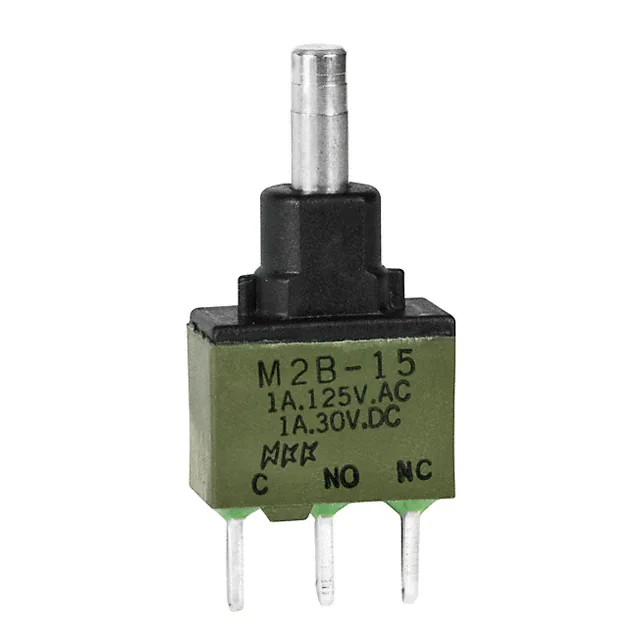

M2B15AA5W03SWITCH PUSHBUTTON SPDT 1A 125V |
2,558 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

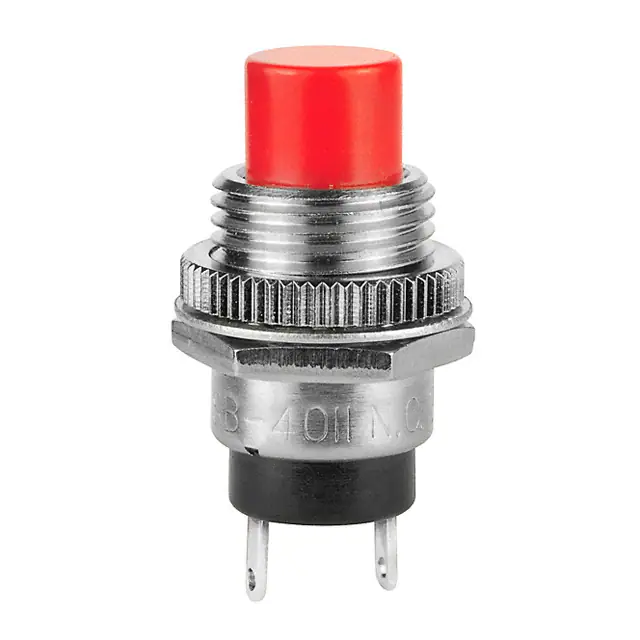

SB4011NCMCSWITCH PUSH SPST-NC 3A 125V |
339 | - |
|
Datasheet | SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

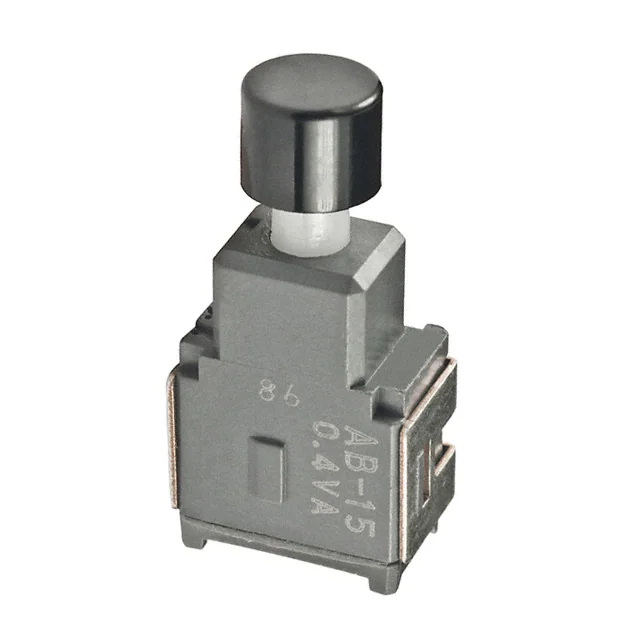

AB15AH-FASWITCH PUSH SPDT 0.4VA 28V |
10,057 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
FB15ANEP4SWITCH PUSH SPST-NO 0.4VA 28V |
1,979 | - |
|
Datasheet | FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
M2B15AA5G13-HASWITCH PUSHBUTTON SPDT 0.4VA 28V |
314 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
