Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB25AP-HASUBMINIATURE PUSHBUTTON/PC |
3,513 | - |
|
Datasheet | AB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
M2B15BA5W03SWITCH PUSHBUTTON SPDT 1A 125V |
100 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
BB26AV-FASWITCH PUSH DPDT 0.4VA 28V |
1,725 | - |
|
Datasheet | BB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
AB15AB-FASWITCH PUSH SPDT 0.4VA 28V |
4,387 | - |
|
Datasheet | AB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11AB-HCSWITCH PUSH SPST-NO 0.4VA 28V |
2,293 | - |
|
Datasheet | AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

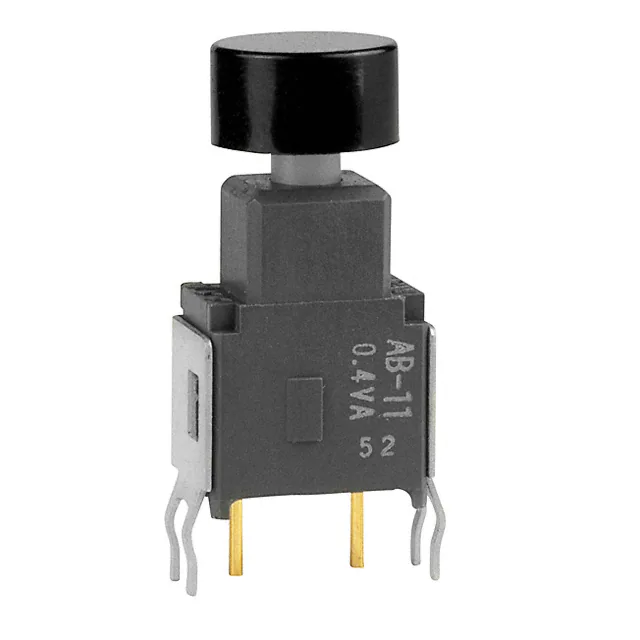

AB11BB-HASWITCH PUSH SPST-NO 0.4VA 28V |
2,820 | - |
|
Datasheet | AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
UB15NBKG01N-GSWITCH PUSH SPDT 0.4VA 28V |
2,712 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Blue | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
M2B15AA5W13SWITCH PUSHBUTTON SPDT 1A 125V |
4,714 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
AB11AV-FASWITCH PUSH SPST-NO 0.4VA 28V |
4,257 | - |
|
Datasheet | AB | Box | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

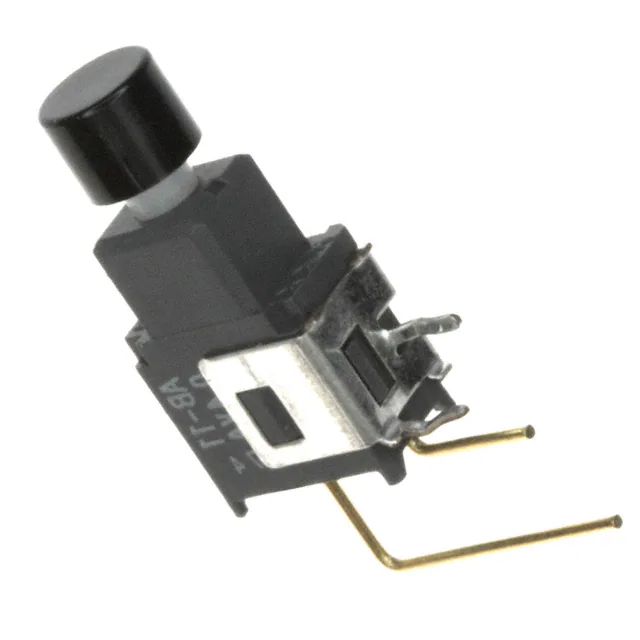

AB11BV-FASWITCH PUSH SPST-NO 0.4VA 28V |
1,737 | - |
|
Datasheet | AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
