Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

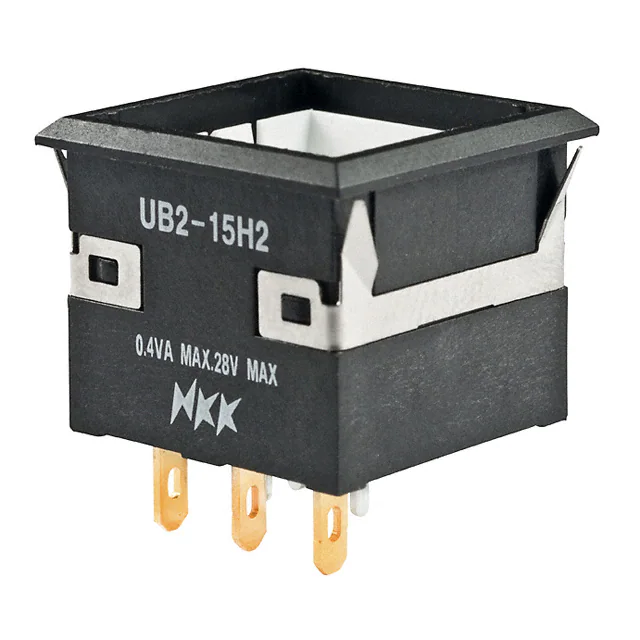

UB215KKG016CFSWITCH PUSH SPDT 0.4VA 28V |
4,058 | - |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Process Sealed Plunger | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

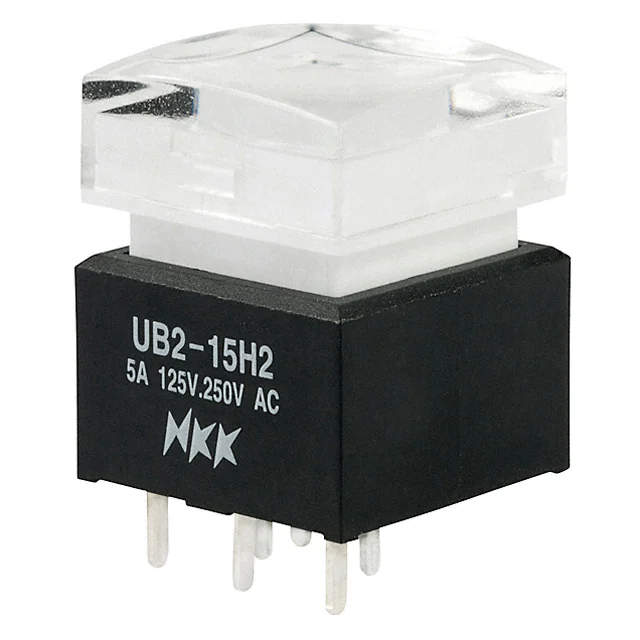

UB215SKW036CF-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
1,173 | - |
|
Datasheet | UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
YB15CKG01-6G-GBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,420 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
LB26SKW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V |
4,668 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

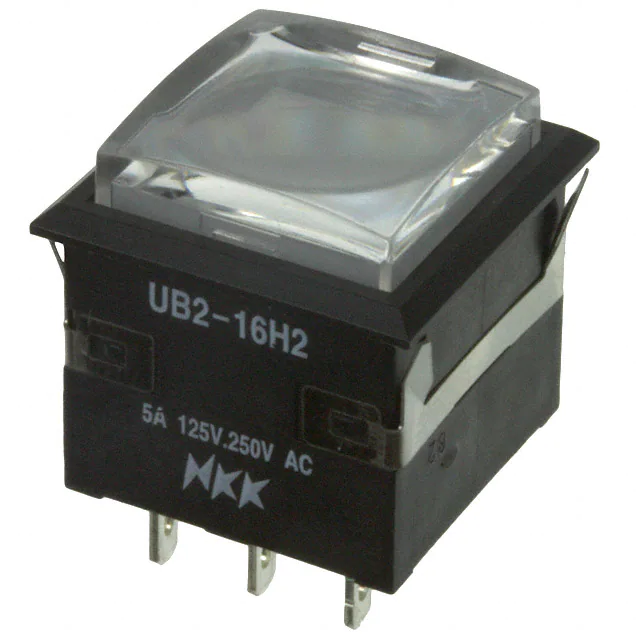

UB216KKW016CF-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
4,257 | - |
|
Datasheet | UB2 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
LB26CKW01-5F-JFSWITCH PUSHBUTTON DPDT 3A 125V |
1,522 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB16CKW01-5C-JBSWITCH PUSHBUTTON SPDT 3A 125V |
4,629 | - |
|
Datasheet | YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

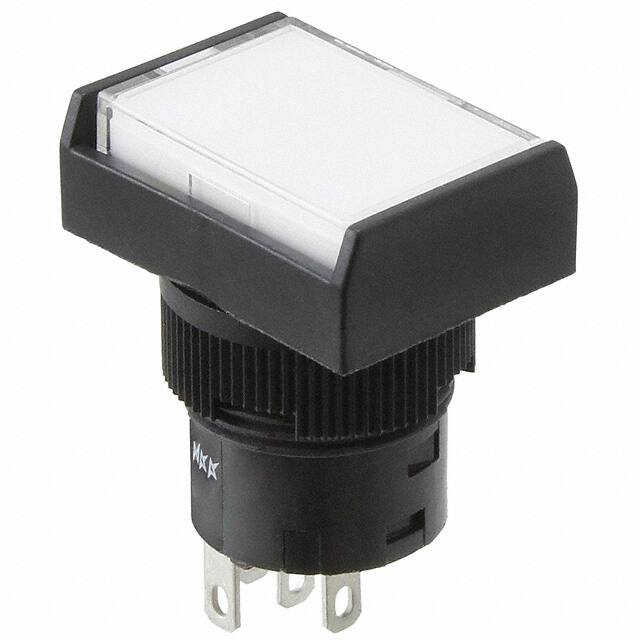

YB16RKW01-6B-JBSWITCH PUSHBUTTON SPDT 3A 125V |
4,037 | - |
|
Datasheet | YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15NKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
4,783 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
WB12T-DCSWITCH PUSHBUTTON SPDT 6A 125V |
2,438 | - |
|
Datasheet | WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
