Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB4011NCM-2ASWITCH PUSH SPST-NC 3A 125V |
1,533 | - |
|
Datasheet | SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
EB2011P-CFSWITCH PUSHBUTTON SPDT 3A 125V |
4,007 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EB2011P-CASWITCH PUSHBUTTON SPDT 3A 125V |
1,535 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

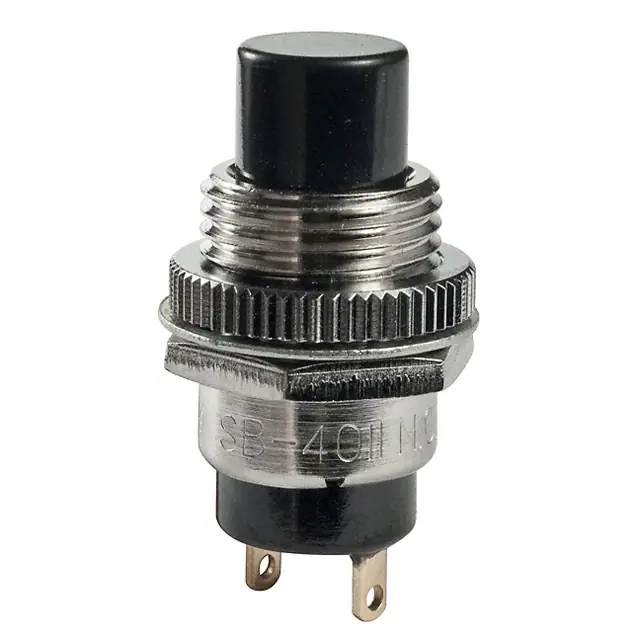

SB4011NOMGSWITCH PUSH SPST-NO 0.4VA 28V |
294 | - |
|
Datasheet | SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
HB15CKW01-CSWITCH PUSH SPDT 0.1A 30V |
121 | - |
|
Datasheet | HB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
BB26AP-FBSWITCH PUSH DPDT 0.4VA 28V |
2,416 | - |
|
Datasheet | BB | Box | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
M2B15AA5G40SWITCH PUSH SPDT 0.4VA 28V |
198 | - |
|
Datasheet | M2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
EB2085P-BCSWITCH PUSHBUTTON DPDT 3A 125V |
1,432 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

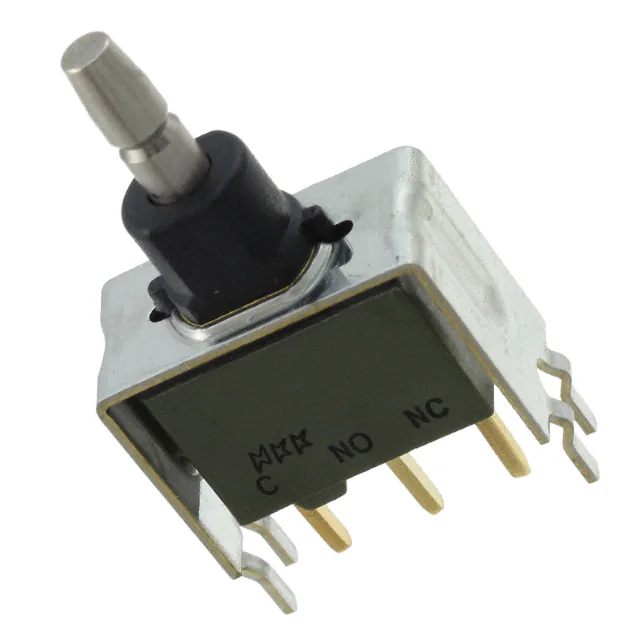

M2B15BA5G13-CASWITCH PUSH SPDT 0.4VA 28V |
2,010 | - |
|
Datasheet | M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G13-CCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
4,895 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
