Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

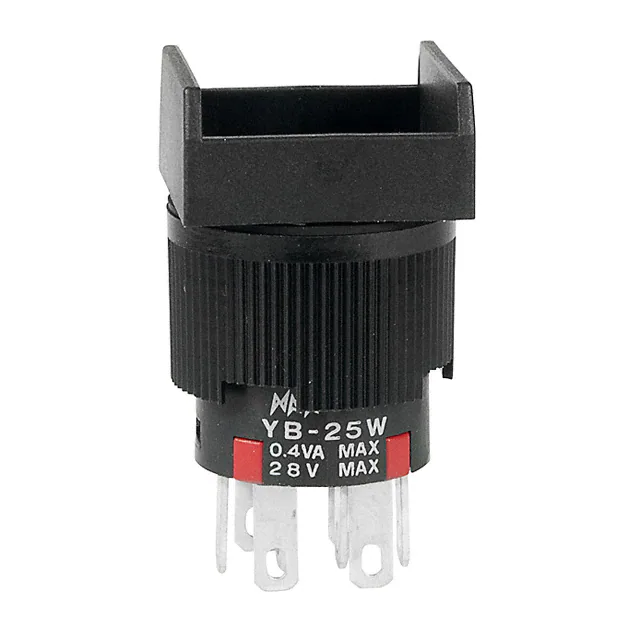

YB25WSKG01SWITCH PUSH DPDT 0.4VA 28V |
3,919 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

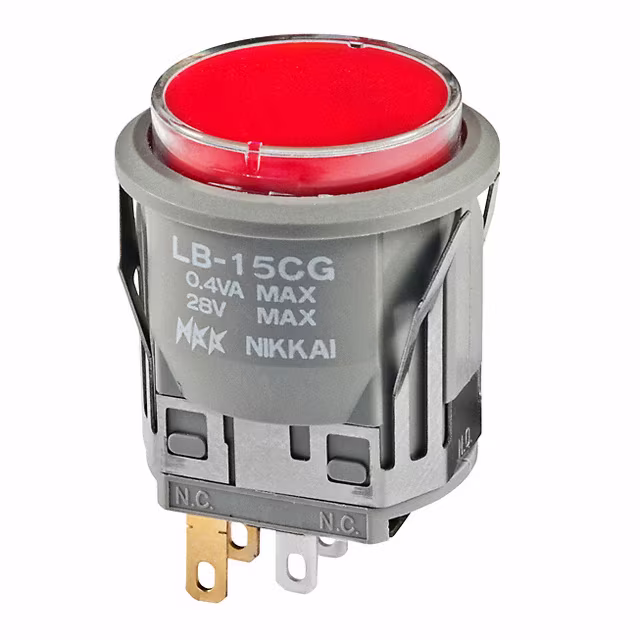

LB15CGG01-5C-JCSWITCH PUSH SPDT 0.4VA 28V |
1,376 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB16WSKW01-5F-JBSWITCH PUSHBUTTON SPDT 3A 125V |
4,018 | - |
|
Datasheet | YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB216SKW036CF-3JBSWITCH PUSHBUTTON SPDT 5A 125V |
1,593 | - |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
YB15CKG01-2CF02-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,359 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

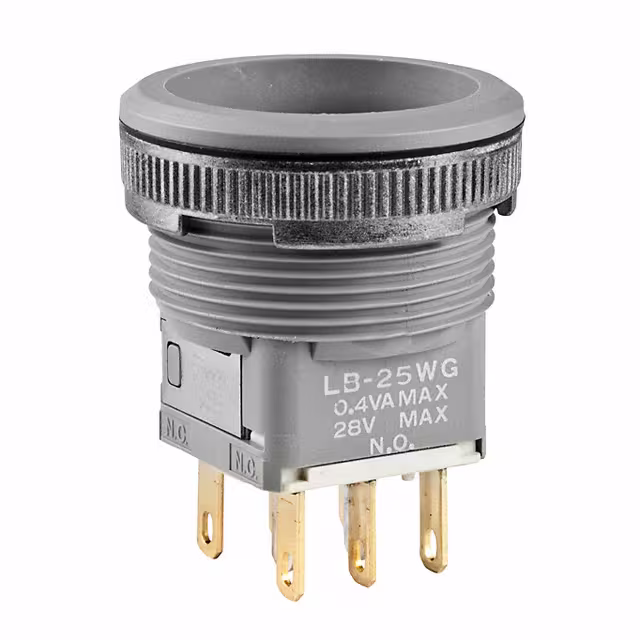

LB25WGG01SWITCH PUSH DPDT 0.4VA 28V |
2,717 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB16CKW01-5F24-JBSWITCH PUSHBUTTON SPDT 3A 125V |
1,609 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
LB16RKW01-6B-JBSWITCH PUSHBUTTON SPDT 3A 125V |
2,241 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
YB25SKW01-5C12-JCSWITCH PUSHBUTTON DPDT 3A 125V |
3,401 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB215SKG036DGLOW PROFILE PUSHBUTTON/ILLUMINAT |
3,920 | - |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | - | LED, Amber/Blue | 2.8, 2 VDC | PC Pin | - | Sealed | - | -25°C ~ 50°C |
