Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB16NKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
4,909 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

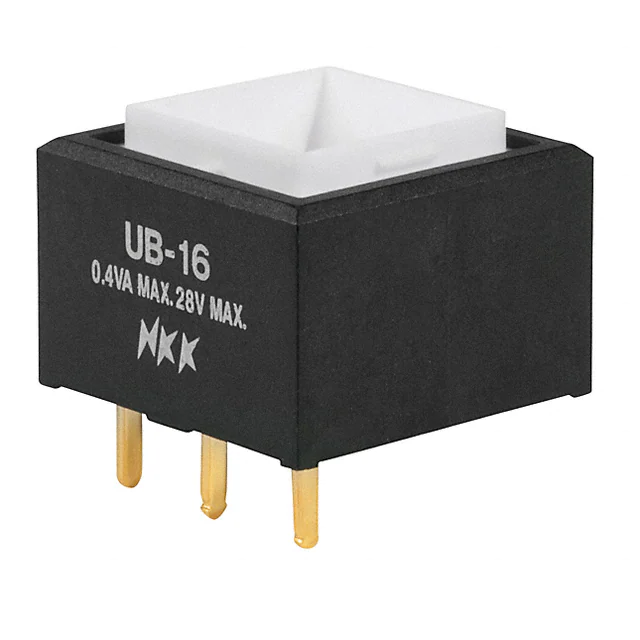

UB16SKG03NSWITCH PUSH SPDT 0.4VA 28V |
3,625 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

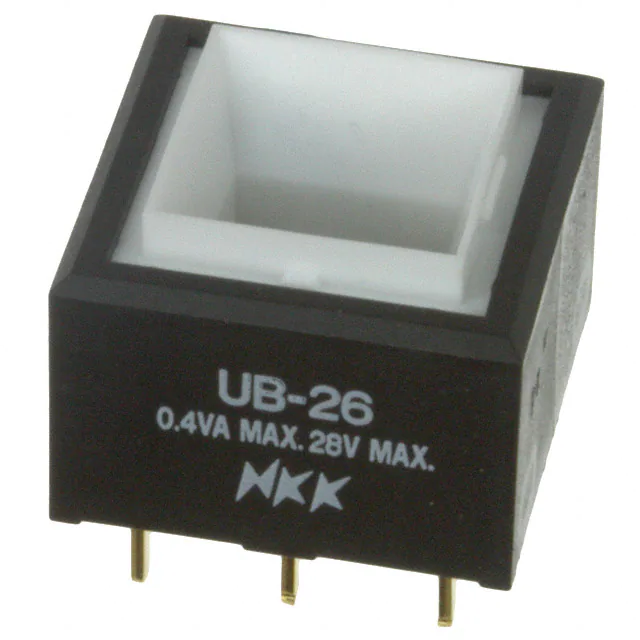

UB26SKG03NSWITCH PUSH DPDT 0.4VA 28V |
4,797 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
HB16SKW01-FMINIATURE PUSHBUTTON/ILLUMINATED |
1,956 | - |
|
Datasheet | HB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (DC) | 30 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
UB15RKW035FSWITCH PUSHBUTTON SPDT 5A 125V |
4,825 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

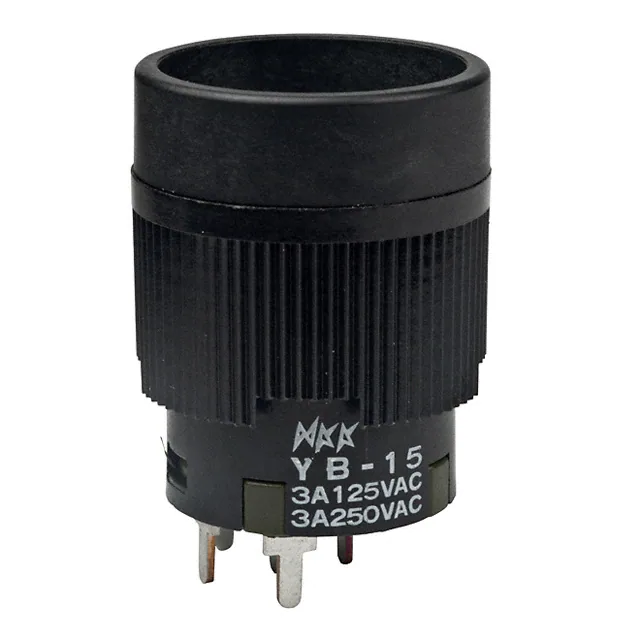

YB15CKW03SWITCH PUSHBUTTON SPDT 3A 125V |
1,928 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

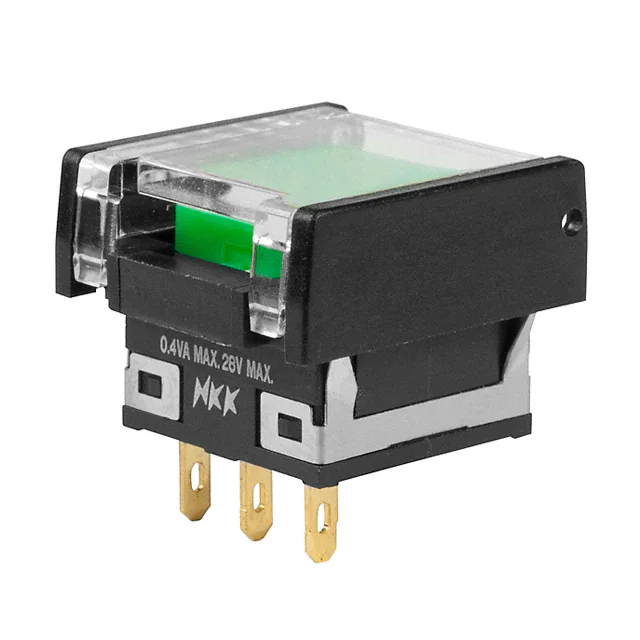

UB15KKG01N-F/AT499SWITCH PUSH SPDT 0.4VA 28V |
3,088 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
MBNF15S4G01SNAP-ACTION BUSHING MOUNT PUSHBU |
4,000 | - |
|
Datasheet | MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN12SS1W01-CABUSHING MOUNT MINIATURE PUSHBUTT |
4,764 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KP0215ANAKG03RGBP-1FJBSWITCH PB MINI ILLUMINATED RGB |
1,165 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
