Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2B15BA5G40-BASWITCH PUSH SPDT 0.4VA 28V |
1,526 | - |
|
Datasheet | M2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G30-CASWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,196 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G30-CCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,400 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G30-CFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,415 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G30-CGSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2,877 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5G30-CHSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,137 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Gray | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

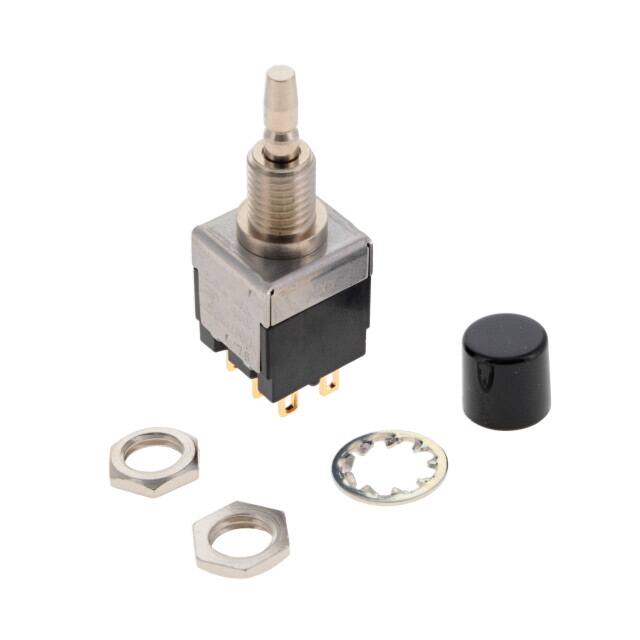

EB2061G-BASWITCH PUSHBUTTON DPDT 0.4VA 28V |
4,056 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

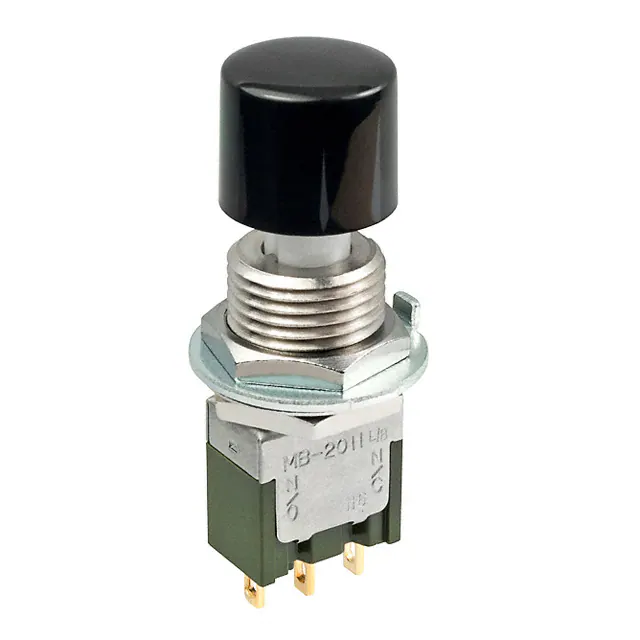

MB2011SB1G01-DASWITCH PUSH SPDT 0.4VA 28V |
4,523 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

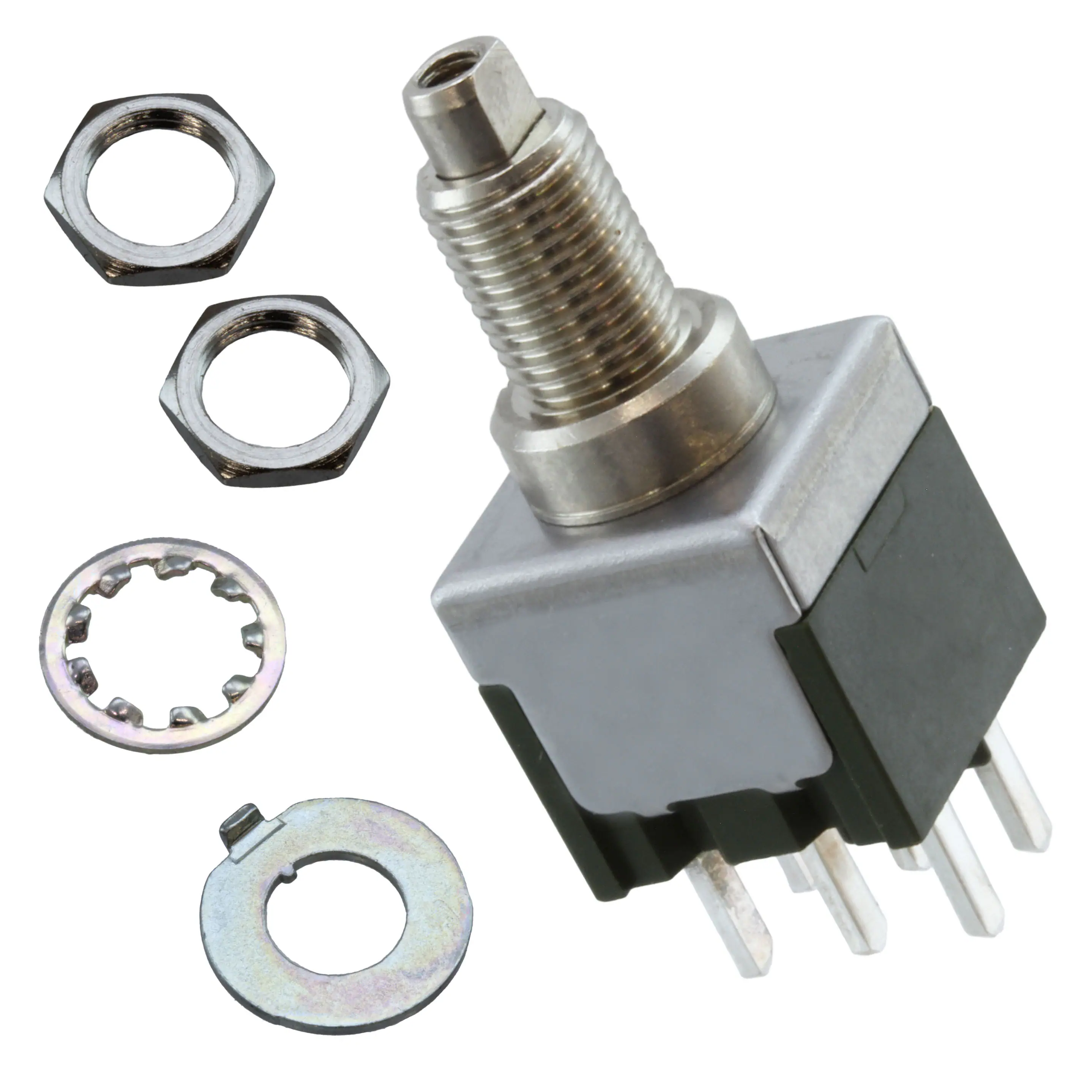

MB2061SS1W02SWITCH PUSHBUTTON DPDT 6A 125V |
4,094 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2061SS1W03SWITCH PUSHBUTTON DPDT 6A 125V |
4,806 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
