Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2011SS1G03-CFSPDT ON-(ON) SCREW-ON CAP PLUNGE |
4,211 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085LD1W01MINIATURE PUSHBUTTON/MULTI-FUNCT |
4,545 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB15RKG035FSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,155 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15RKG035DSWITCH PUSH SPDT 0.4VA 28V |
4,807 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
EB2085-A-J50SWITCH PUSHBUTTON DPDT 3A 125V |
3,572 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|

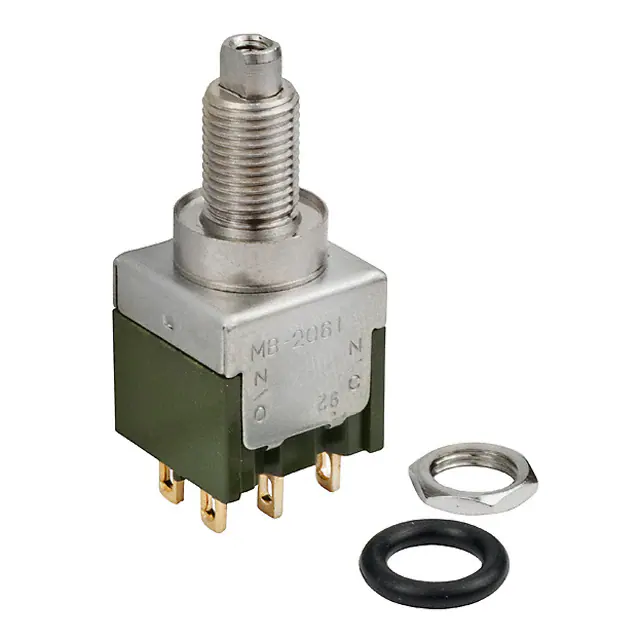

MB2061SD3G01SWITCH PUSH DPDT 0.4VA 28V |
4,167 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
EB2065-G-J31ASWITCH PUSHBUTTON SPDT 3A 125V |
2,440 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
EB2065-A-J31BMINIATURE PUSHBUTTON/BUSHING MOU |
4,484 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
EB2065-A-J51BMINIATURE PUSHBUTTON/BUSHING MOU |
2,101 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
MB2061SB1W03-DASWITCH PUSHBUTTON DPDT 6A 125V |
3,912 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
