Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2065SS2W13-BASWITCH PUSHBUTTON SPDT 6A 125V |
3,083 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2065SS2W13-BGSPDT ON-ON .335" SMOOTH BUSHING |
1,253 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
JPL16B-CSWITCH PUSH SPST 16A 125V |
1,548 | - |
|
Datasheet | JP | Tray | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
|
JPL16B-HSWITCH PUSH SPST 16A 125V |
2,983 | - |
|
Datasheet | JP | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Gray | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
|
JPL16B-BINTERNATIONALLY APPROVED PUSHBUT |
1,270 | - |
|
Datasheet | JB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | - | Ivory | - | - | Solder Lug | - | - | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|

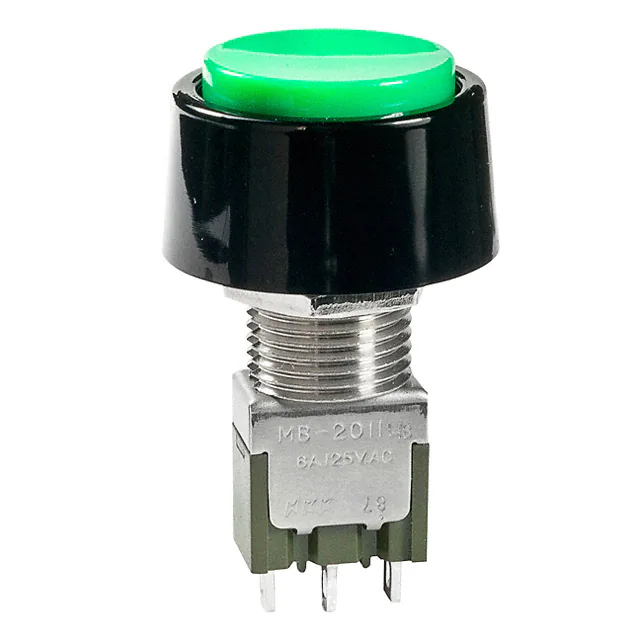

MB2061SB1W01-4F-ASWITCH PUSHBUTTON DPDT 6A 125V |
2,789 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2061SS1W13-CAMINIATURE PUSHBUTTON/MULTI-FUNCT |
4,452 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SS2W13-CASWITCH PUSHBUTTON SPDT 6A 125V |
3,787 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2065SS2W13-CBSWITCH PUSHBUTTON SPDT 6A 125V |
2,791 | - |
|
Datasheet | MB2000 | Box | Obsolete | Through Hole | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2065SS2W13-CCSWITCH PUSHBUTTON SPDT 6A 125V |
3,704 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
