Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25NKW015C-JCSWITCH PUSHBUTTON DPDT 5A 125V |
3,284 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16CGW01-BSWITCH PUSHBUTTON SPDT 3A 125V |
2,153 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB16RKW01-GSWITCH PUSHBUTTON SPDT 3A 125V |
3,913 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
YB16NKW01SWITCH PUSHBUTTON SPDT 3A 125V |
4,109 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
MB2411A1G40-FCSWITCH PUSH SPDT 0.4VA 28V |
3,806 | - |
|
Datasheet | MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2411A1G40-FASWITCH PUSH SPDT 0.4VA 28V |
4,225 | - |
|
Datasheet | MB2400 | Box | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB15NKW015C-ABLOW PROFILE PUSHBUTTON/ILLUMINAT |
1,701 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26NKW015FSWITCH PUSHBUTTON DPDT 5A 125V |
4,088 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

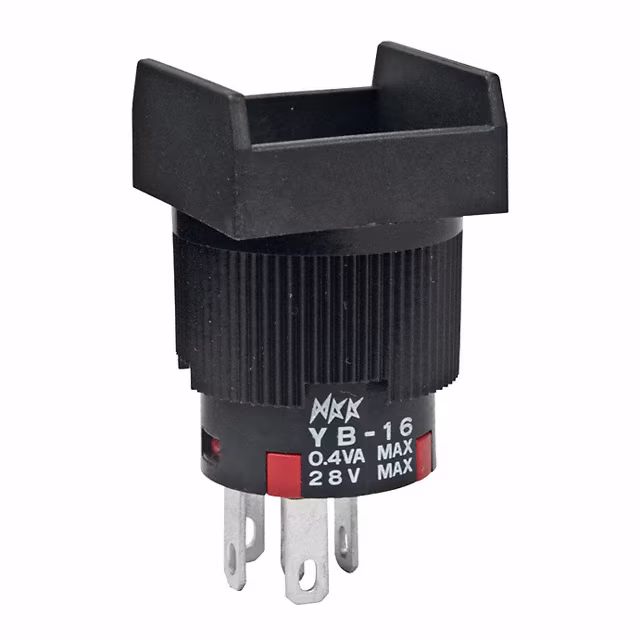

YB16SKG01SWITCH PUSH SPDT 0.4VA 28V |
2,338 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB25RKG035F-JBSWITCH PUSH DPDT 0.4VA 28V |
2,429 | - |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
