Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

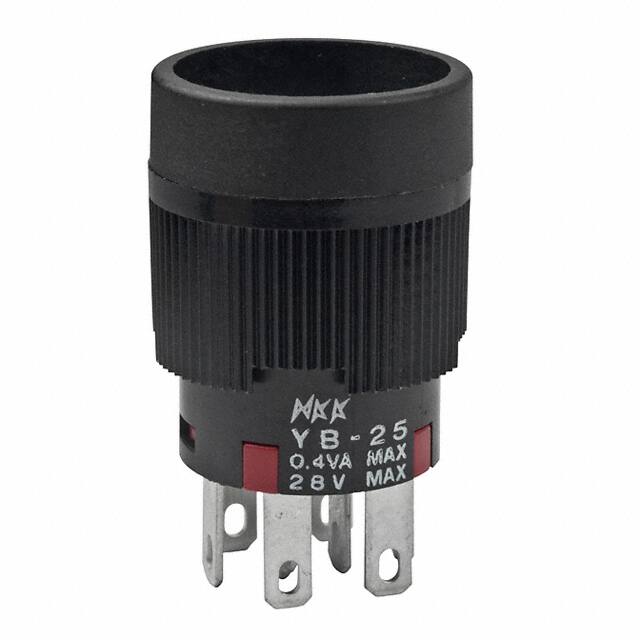

YB25CKG01SWITCH PUSH DPDT 0.4VA 28V |
2,946 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile/Audible Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LB25RKW01-BSWITCH PUSHBUTTON DPDT 3A 125V |
3,770 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
YB25SKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,012 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
MB2411JW01-A-3A-CFSWITCH PUSHBUTTON SPDT 3A 125V |
4,493 | - |
|
Datasheet | MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -30°C ~ 85°C |
|
|
EB2011P-F-J22ACSWITCH PUSHBUTTON SPDT 3A 125V |
3,120 | - |
|
Datasheet | EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Green | LED, Red | 2.8 VDC | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
MB2411JW01-F-4A-FESWITCH PUSHBUTTON SPDT 3A 125V |
1,756 | - |
|
Datasheet | MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Green | LED, Green/Yellow | 2.0, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -30°C ~ 85°C |
|
|
MB2411JW01-H-4A-FESWITCH PUSHBUTTON SPDT 3A 125V |
2,686 | - |
|
Datasheet | MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Gray | LED, Green/Yellow | 2.0, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -30°C ~ 85°C |
|
|
MB2411JW01-A-4A-EFMINIATURE PUSHBUTTON/MOMENTARY |
3,727 | - |
|
Datasheet | MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Green/Yellow | 2.0, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -30°C ~ 85°C |
|

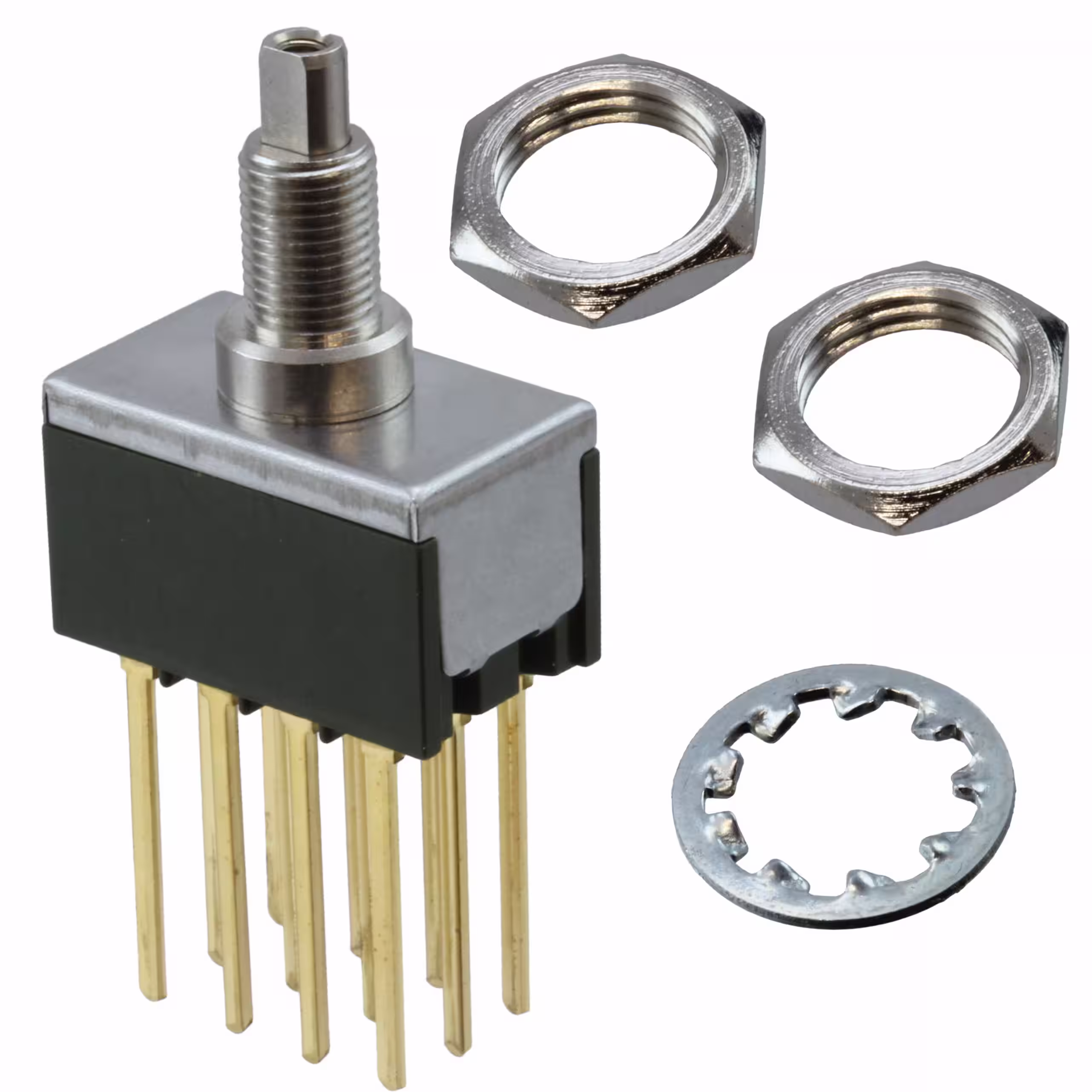

MB2185SS1G06SWITCH PUSHBUTTON 4PDT 0.4VA 28V |
3,165 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
LB15CGW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
4,406 | - |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
