Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2B15BA5W30-BCSWITCH PUSHBUTTON SPDT 1A 125V |
2,831 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15AA5W40-FASWITCH PUSHBUTTON SPDT 1A 125V |
3,036 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
MB2065SB1W01-DASWITCH PUSHBUTTON SPDT 6A 125V |
3,791 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
BB26AHSWITCH PUSH DPDT 0.4VA 28V |
4,483 | - |
|
Datasheet | BB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
M2B15BA5W30-CASWITCH PUSHBUTTON SPDT 1A 125V |
2,183 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B15BA5W30-CCSWITCH PUSHBUTTON SPDT 1A 125V |
4,392 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
G3B15AH-YBULTRA-MINIATURE PROCESS SEALED S |
3,624 | - |
|
Datasheet | G3B | Bulk | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | Gull Wing | - | - | - | -30°C ~ 85°C |
|
|
SB4011NOM/CUL-2C3 AMP MOMENTARY PUSHBUTTON |
4,108 | - |
|
Datasheet | SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | - | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
M2B15BA5W40-CASPDT ON-(ON) .307" PLUNGER 1A 12 |
1,590 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

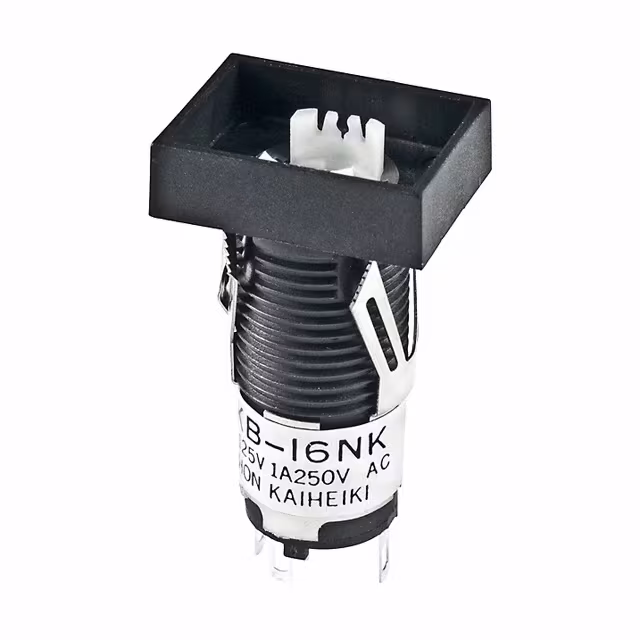

KB16NKW01SWITCH PUSHBUTTON SPDT 1A 125V |
2,689 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
