Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBNF15S4W01-CASNAP-ACTION BUSHING MOUNT PUSHBU |
2,311 | - |
|
Datasheet | MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNF15S4W01-CBSNAP-ACTION BUSHING MOUNT PUSHBU |
4,839 | - |
|
Datasheet | MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNF15S4W01-CCSNAP-ACTION BUSHING MOUNT PUSHBU |
4,265 | - |
|
Datasheet | MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNF15S4W01-CGSNAP-ACTION BUSHING MOUNT PUSHBU |
1,805 | - |
|
Datasheet | MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Blue | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNF15S4W01-CESNAP-ACTION BUSHING MOUNT PUSHBU |
3,233 | - |
|
Datasheet | MB2500 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Yellow | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNR15JW01-B-1ASNAP-ACTION SNAP-IN MOUNT PUSHBU |
1,752 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

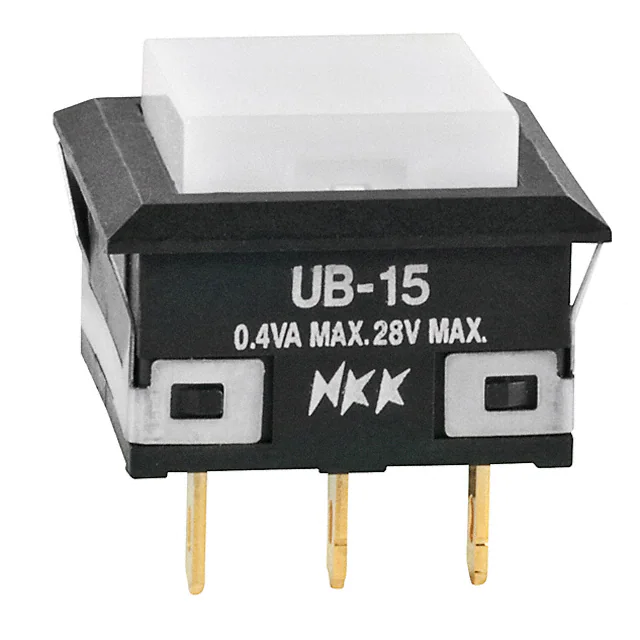

UB15KKG01N-BSWITCH PUSH SPDT 0.4VA 28V |
4,037 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
M2B25BA5W13SWITCH PUSHBUTTON DPDT 1A 125V |
1,012 | - |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
SCB25P15A-2ASWITCH PUSHBUTTON DPDT 15A 125V |
4,456 | - |
|
Datasheet | SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
YB16WCKG01-FBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,951 | - |
|
Datasheet | YB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
