Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

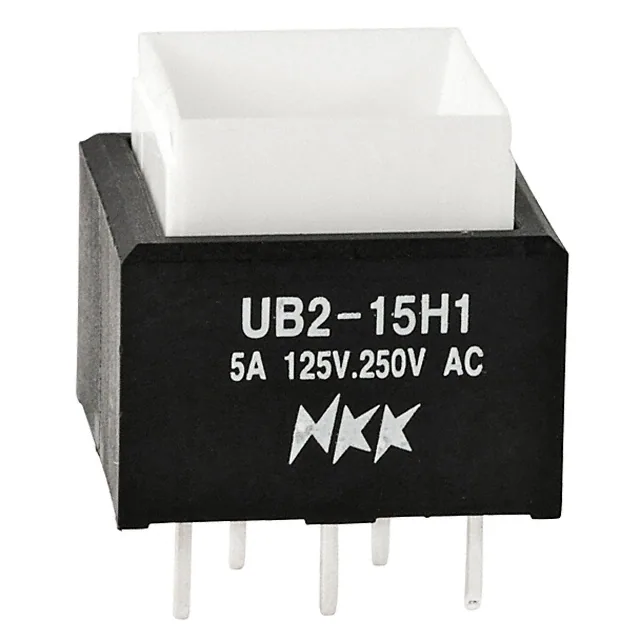

UB215SKW035DSWITCH PUSHBUTTON SPDT 5A 125V |
3,187 | - |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
YB16KKW01-05-FBSWITCH PUSHBUTTON SPDT 3A 125V |
2,412 | - |
|
Datasheet | YB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
UB226KKW01N-5ALOW PROFILE PUSHBUTTON |
1,171 | - |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | - | Black | - | - | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
MBNR25E1W01-FASNAP-ACTION BUSHING MOUNT PUSHBU |
4,461 | - |
|
Datasheet | MB2400 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNR15A2G30-HCSNAP-ACTION BRACKET PC MOUNT PUS |
2,099 | - |
|
Datasheet | MB2400 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBNR25E1W01-FCSNAP-ACTION BUSHING MOUNT PUSHBU |
4,114 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|
|
YB15NKW01-1C02-JCSWITCH PUSHBUTTON SPDT 3A 125V |
3,085 | - |
|
Datasheet | YB | Bulk | Last Time Buy | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15NKW01-1F02-JFSWITCH PUSHBUTTON SPDT 3A 125V |
2,111 | - |
|
Datasheet | YB | Bulk | Last Time Buy | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB226KKW015C-2CSWITCH PUSHBUTTON DPDT 5A 125V |
4,952 | - |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB226SKW035D-1JDSWITCH PUSHBUTTON DPDT 5A 125V |
1,249 | - |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
