Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN25SS1W01-CEBUSHING MOUNT MINIATURE PUSHBUTT |
1,600 | - |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Yellow | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
EB2011-B-J23ACFSWITCH PUSHBUTTON SPDT 3A 125V |
2,441 | - |
|
Datasheet | EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
MBN25SS2G13-BCBRACKET PC MOUNT MINIATURE PUSHB |
4,189 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN12SS2W45BRACKET PC MOUNT MINIATURE PUSHB |
1,729 | - |
|
Datasheet | MB2000 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

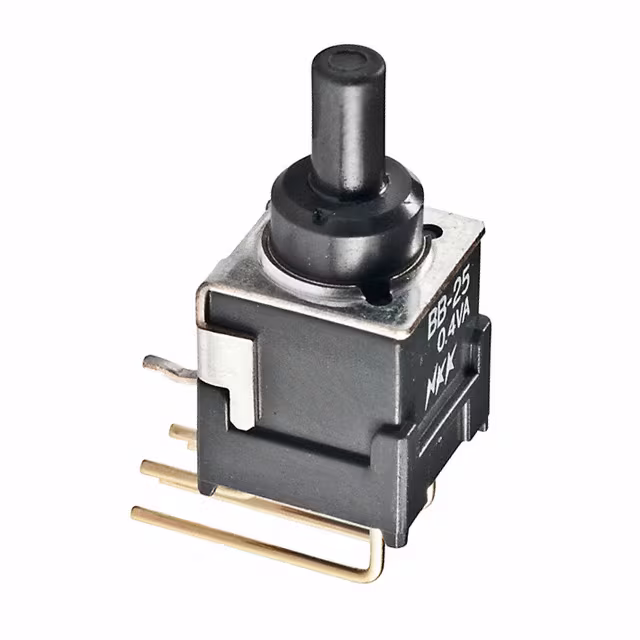

BB25AH/M4GSWITCH PUSH DPDT 0.4VA 28V |
4,603 | - |
|
Datasheet | BB | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
DB2521VSWITCH PUSHBUTTON DPDT 0.4VA 28V |
3,891 | - |
|
Datasheet | DB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
|
UB16SKW035F-ABSWITCH PUSHBUTTON SPDT 5A 125V |
4,908 | - |
|
Datasheet | UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
MBN12SS2W30BRACKET PC MOUNT MINIATURE PUSHB |
1,679 | - |
|
Datasheet | MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN25SS1W01-CA/AT507HBUSHING MOUNT MINIATURE PUSHBUTT |
4,851 | - |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
SCB15P10DSWITCH PUSHBUTTON SPDT 10A 125V |
1,694 | - |
|
Datasheet | SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
