Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2411A2W13-HASWITCH PUSHBUTTON SPDT 3A 125V |
2,840 | - |
|
Datasheet | MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MB2411A2W13-HCSWITCH PUSHBUTTON SPDT 3A 125V |
1,799 | - |
|
Datasheet | MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
KP0115ANBKG03RGBP-2SJBSWITCH PB MINI ILLUMINATED RGB |
3,474 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
KP0115ANAKG03RGBP-1FJBSWITCH PB MINI ILLUMINATED RGB |
4,538 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
KP0115ANAKG03RGBP-1SJBSWITCH PB MINI ILLUMINATED RGB |
2,972 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

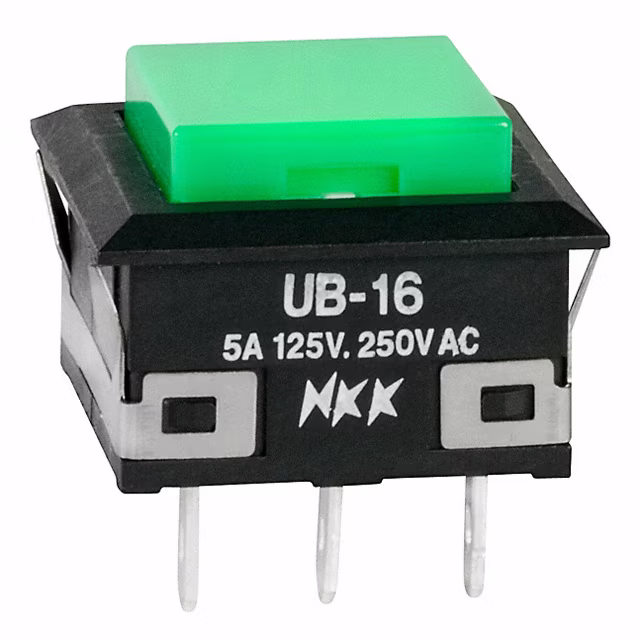

UB16KKW01N-FSWITCH PUSHBUTTON SPDT 5A 125V |
3,442 | - |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
UB16KKW01N-ESWITCH PUSHBUTTON SPDT 5A 125V |
3,292 | - |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
KP0215ACBKG03RGBP-3SJBSWITCH PB MINI ILLUMINATED RGB |
4,291 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0215ACBKG03RGBP-3FJBSWITCH PB MINI ILLUMINATED RGB |
4,001 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0115ANBKG03RGBP-3FJBSWITCH PB MINI ILLUMINATED RGB |
1,136 | - |
|
Datasheet | KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
