Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15MKW01-5F24-JFSWITCH PUSHBUTTON SPDT 3A 125V |
4,243 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW01-5D05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
3,426 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-2CF02-JBSWITCH PUSHBUTTON SPDT 3A 125V |
3,403 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-5C12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
1,738 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-5F05-JFSWITCH PUSHBUTTON SPDT 3A 125V |
1,479 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-5F12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
1,182 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15NKW01-5D12-JDSHORT BODY PUSHBUTTON |
2,974 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | - | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15RKG01-5D24-JDSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,324 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15RKG01-5D24-JBSHORT BODY PUSHBUTTON |
2,906 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | - | Clear (White Filter/Diffuser) | LED, Amber | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

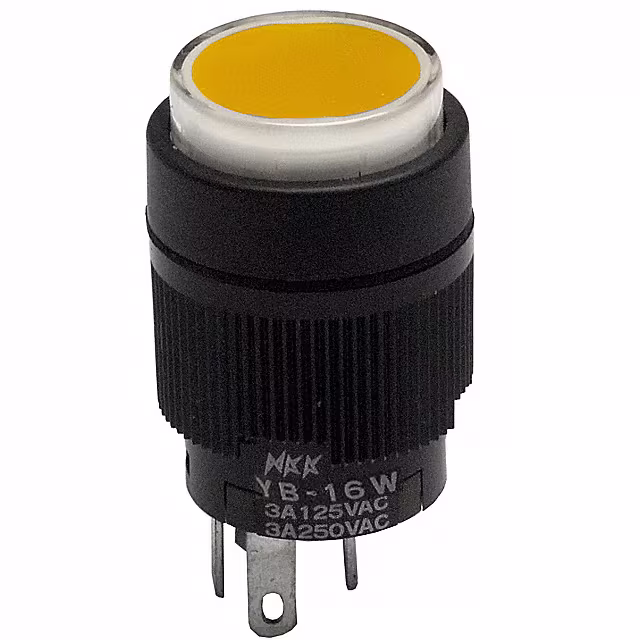

YB16WCKW01-5D-JDSWITCH PUSHBUTTON SPDT 3A 125V |
1,099 | - |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
