Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

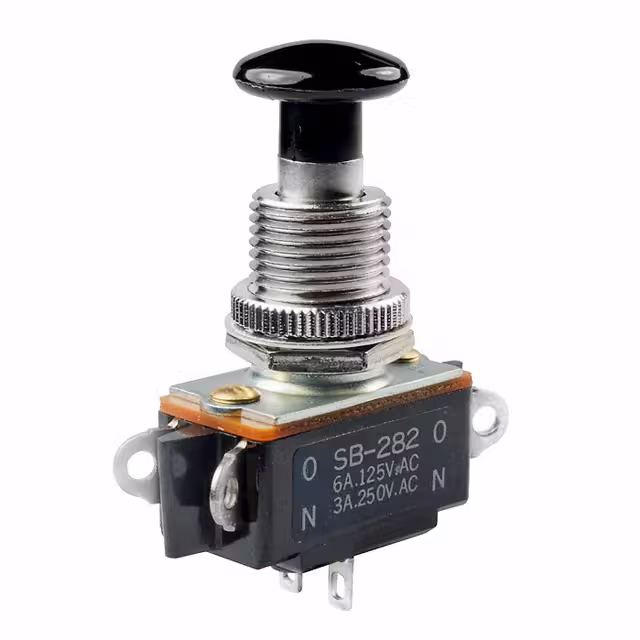

SB282SWITCH PUSHBUTTON DPDT 6A 125V |
1,295 | - |
|
Datasheet | SB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
MB2411E1G01SWITCH PUSH SPDT 0.4VA 28V |
3,358 | - |
|
Datasheet | MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SS2W13-CASWITCH PUSHBUTTON SPDT 6A 125V |
3,425 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MB2065SS1W01-CASWITCH PUSHBUTTON SPDT 6A 125V |
2,051 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2085SS1W01-CASWITCH PUSHBUTTON DPDT 6A 125V |
2,981 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
FP0115CAC1BFSWITCH PUSHBUTTON |
1,713 | - |
|
Datasheet | FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | White | LED, Green | 2.25 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|

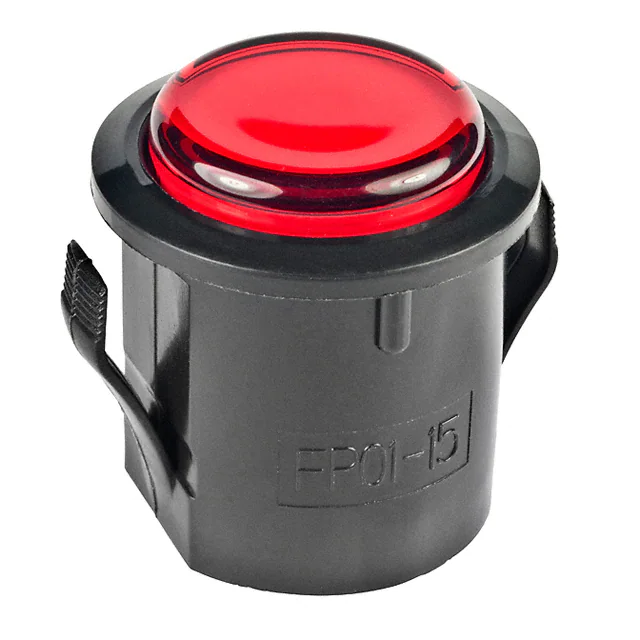

FP0115CAC1CCSWITCH PUSHBUTTON |
1,850 | - |
|
Datasheet | FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Red | LED, Red | 1.85 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|

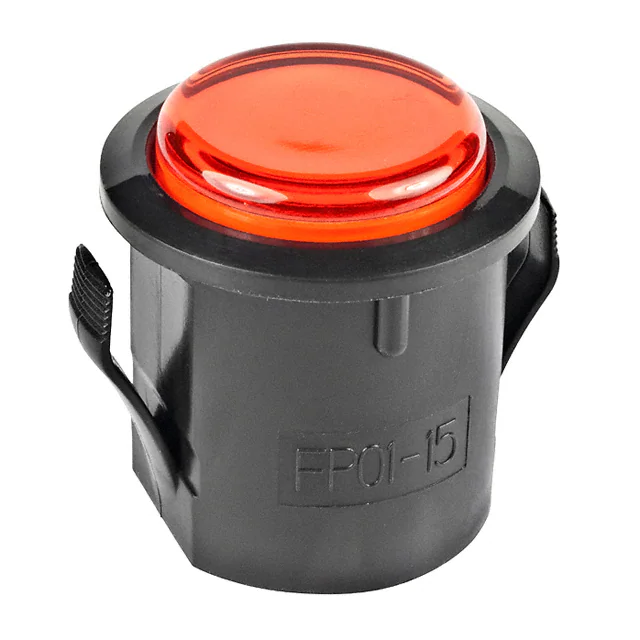

FP0115CAC1DDSWITCH PUSHBUTTON |
3,113 | - |
|
Datasheet | FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Amber | LED, Amber | 2 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
KB16SKW01-05-FFSWITCH PUSHBUTTON SPDT 1A 125V |
1,017 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
MB2011SB1W01-EFSWITCH PUSHBUTTON SPDT 6A 125V |
2,745 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
