Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLB2141A01-D7F-RSWITCH PUSH DPDT 0.4VA 28V |
2,069 | - |
|
Datasheet | DLB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Solder Lug | - | - | Circular - 23.30mm Dia | -10°C ~ 50°C |
|

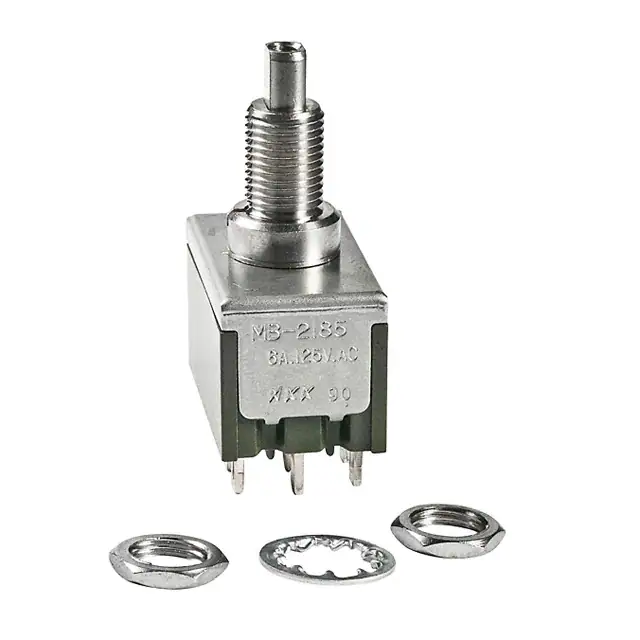

MB2185SS1W01SWITCH PUSHBUTTON 4PDT 6A 125V |
2,399 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
DLB2141W01-01BSWITCH PUSHBUTTON DPDT 5A 125V |
4,789 | - |
|
Datasheet | DLB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 50°C |
|
|
SB862SWITCH PUSH SPST 10A 125V |
3,749 | - |
|
Datasheet | SB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
DLB2145W01SWITCH PUSHBUTTON DPDT 5A 125V |
3,379 | - |
|
Datasheet | DLB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 50°C |
|
MB2065SB1W01-6A-ASWITCH PUSHBUTTON SPDT 6A 125V |
4,647 | - |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 23.30mm Dia | -30°C ~ 85°C |
|
|
DLB2141W03SWITCH PUSHBUTTON DPDT 5A 125V |
4,099 | - |
|
Datasheet | DLB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 12.50mm Dia | -10°C ~ 50°C |
|
|
LB15SKG01-05-FJSWITCH PUSH SPDT 0.4VA 28V |
1,557 | - |
|
Datasheet | LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | Incandescent, Green | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16SKW01-12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
2,485 | - |
|
Datasheet | LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | Incandescent, White | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
DLB2141W01-L1CSWITCH PUSHBUTTON DPDT 5A 125V |
2,755 | - |
|
Datasheet | DLB | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | Incandescent, Red | 28 VAC | Solder Lug | - | - | Circular - 12.50mm Dia | -20°C ~ 50°C |
