Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB15MKG01-6F-JBSWITCH PUSH SPDT 0.4VA 28V |
1,989 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKW01-6G-JBSWITCH PUSHBUTTON SPDT 1A 125V |
1,976 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16SKW01-6G-JBSWITCH PUSHBUTTON SPDT 1A 125V |
2,915 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKW01-6F-JBSWITCH PUSHBUTTON SPDT 1A 125V |
3,645 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-6B-JBSWITCH PUSH SPDT 0.4VA 28V |
4,483 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

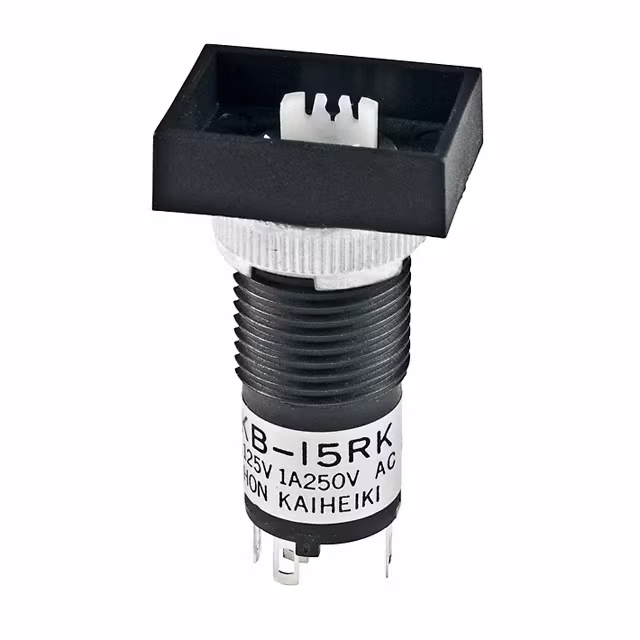

KB15RKW01SWITCH PUSHBUTTON SPDT 1A 125V |
2,480 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
YB25WSKW01-05-EBSWITCH PUSHBUTTON DPDT 3A 125V |
1,951 | - |
|
Datasheet | YB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

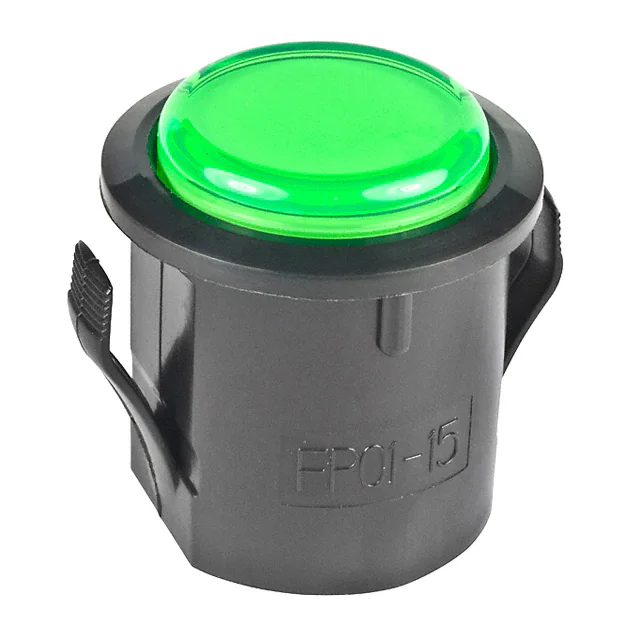

FP0115CAC1FFSWITCH PUSHBUTTON |
1,315 | - |
|
Datasheet | FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Green | LED, Green | 2.25 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|

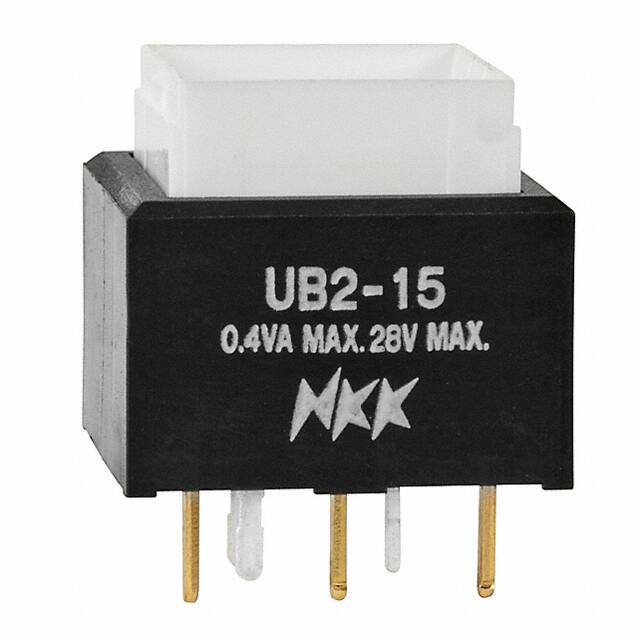

UB215SKG03CFSWITCH PUSH SPDT 0.4VA 28V |
3,722 | - |
|
Datasheet | UB2 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 50°C |
|
|
KB15CKG01-5D24-JDSWITCH PUSH SPDT 0.4VA 28V |
1,667 | - |
|
Datasheet | KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
