Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB25CKG01-5C12-JBSWITCH PUSH DPDT 0.4VA 28V |
3,618 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26CKG01-5D12-JBSWITCH PUSH DPDT 0.4VA 28V |
4,577 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15RKW01-01-JBSWITCH PUSHBUTTON SPDT 1A 125V |
3,032 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | Neon, White | 110 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15RKW01-12-CBSWITCH PUSHBUTTON SPDT 1A 125V |
4,431 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB26SKG01-6G-JBSWITCH PUSH DPDT 0.4VA 28V |
1,993 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
YB15WSKW01-12-FBSWITCH PUSHBUTTON SPDT 3A 125V |
1,588 | - |
|
Datasheet | YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

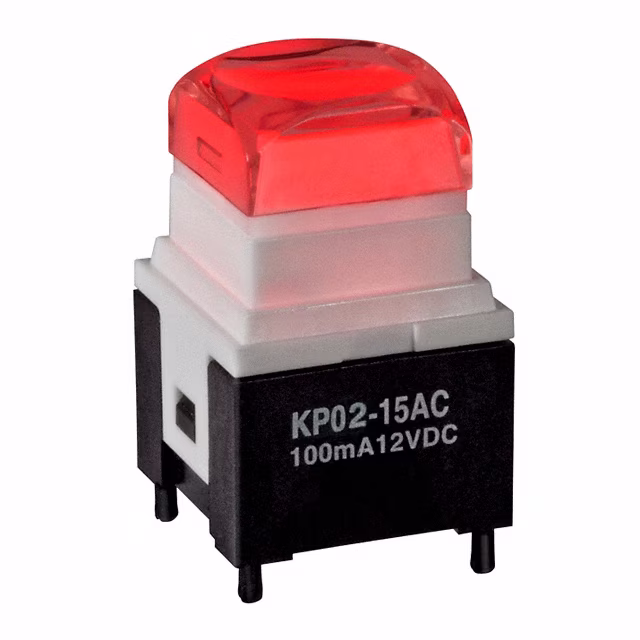

KP0215ACAKG036CF-1SJBSWITCH PUSH SPST-NO 0.1A 12V |
3,895 | - |
|
Datasheet | KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|

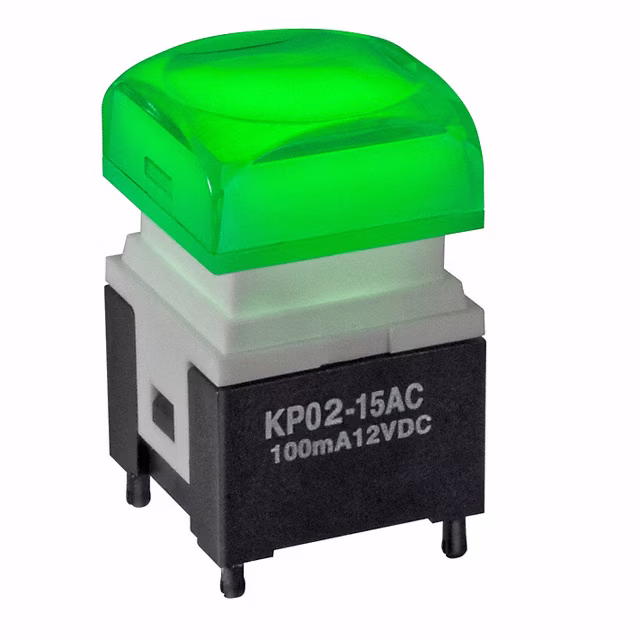

KP0215ACBKG036CF-2SJBSWITCH PUSH SPST-NO 0.1A 12V |
4,416 | - |
|
Datasheet | KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0215ACBKG036CF-3SJBSWITCH PUSH SPST-NO 0.1A 12V |
1,395 | - |
|
Datasheet | KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0215ANAKG036CF-1SJBSWITCH PUSH SPST-NO 0.1A 12V |
4,729 | - |
|
Datasheet | KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
