Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB15CKW01-05-BBSWITCH PUSHBUTTON SPDT 1A 125V |
3,106 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-CBSWITCH PUSHBUTTON SPDT 1A 125V |
4,335 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-EBSWITCH PUSHBUTTON SPDT 1A 125V |
3,354 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-GBSWITCH PUSHBUTTON SPDT 1A 125V |
2,768 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-JBSWITCH PUSHBUTTON SPDT 1A 125V |
2,780 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | Incandescent, White | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-JCSWITCH PUSHBUTTON SPDT 1A 125V |
4,593 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-JESWITCH PUSHBUTTON SPDT 1A 125V |
1,627 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | Incandescent, Yellow | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-JFSWITCH PUSHBUTTON SPDT 1A 125V |
1,355 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-05-JGSWITCH PUSHBUTTON SPDT 1A 125V |
4,896 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | Incandescent, Blue | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

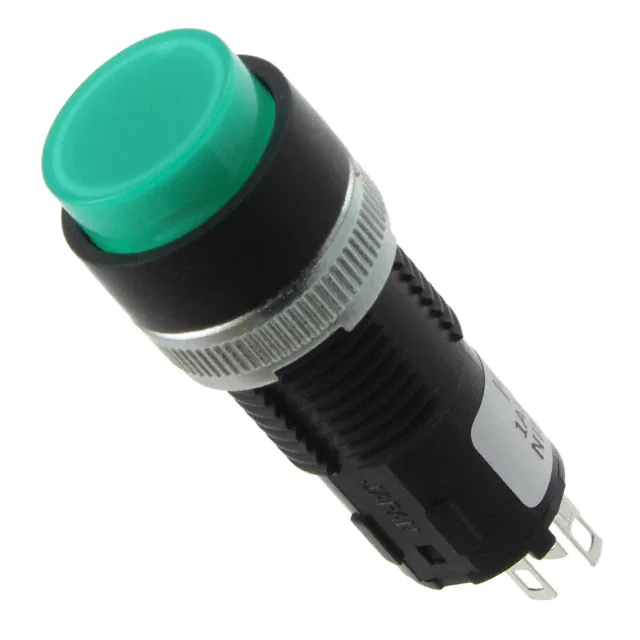

KB15CKW01-12-FFSWITCH PUSHBUTTON SPDT 1A 125V |
3,417 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | Incandescent, Green | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
