Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB25CKG01-12-GGSWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,671 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | Incandescent, Blue | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

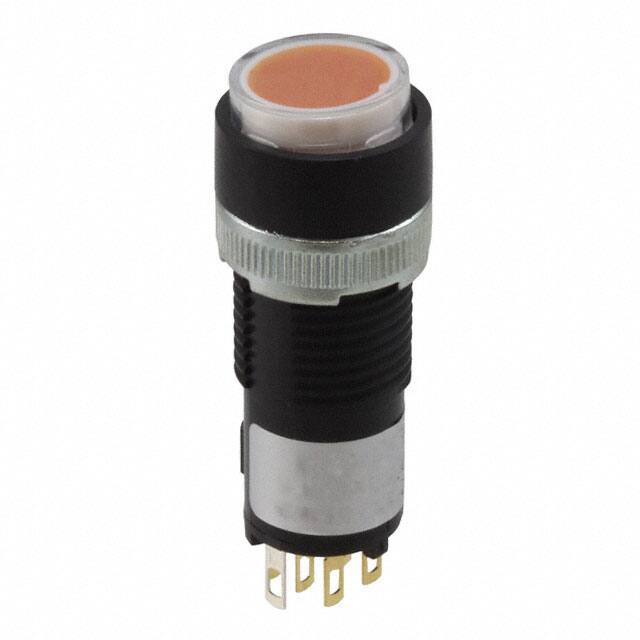

KB25CKG01-5D24-JDSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2,826 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKG01-5F05-JFSWITCH PUSHBUTTON DPDT 0.4VA 28V |
4,119 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

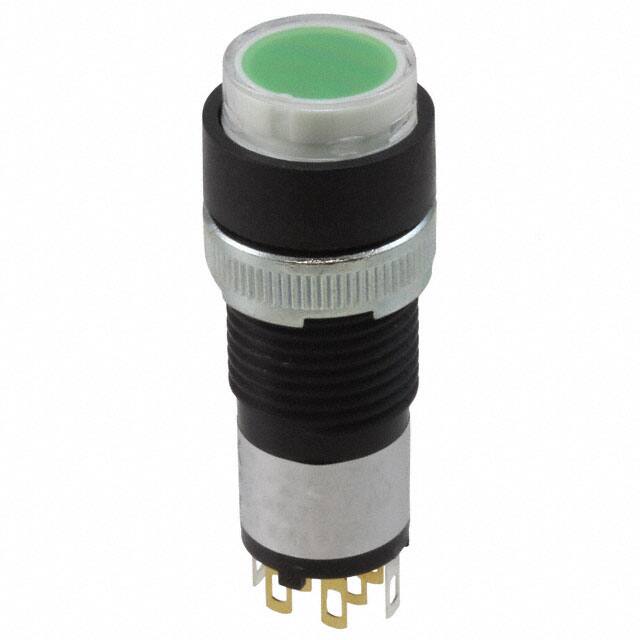

KB25CKG01-5F24-JFSWITCH PUSHBUTTON DPDT 0.4VA 28V |
3,118 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKG01-5F-JFSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2,234 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKW01-05-FBSWITCH PUSHBUTTON DPDT 1A 125V |
4,818 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKW01-05-GGSWITCH PUSHBUTTON DPDT 1A 125V |
4,386 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue | Incandescent, Blue | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKW01-12-GBSWITCH PUSHBUTTON DPDT 1A 125V |
2,475 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKW01-12-JFSWITCH PUSHBUTTON DPDT 1A 125V |
2,221 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB25CKW01-28-EBSWITCH PUSHBUTTON DPDT 1A 125V |
2,679 | - |
|
Datasheet | KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
