Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

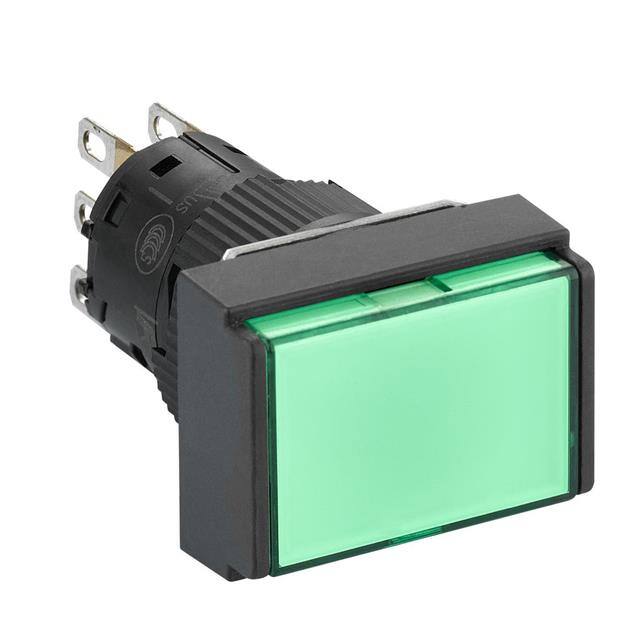

XB6EDW3B1PILLUMINATED MONOLITHIC PUSH BUTT |
4,303 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Rectangular, Button, Flush | - | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

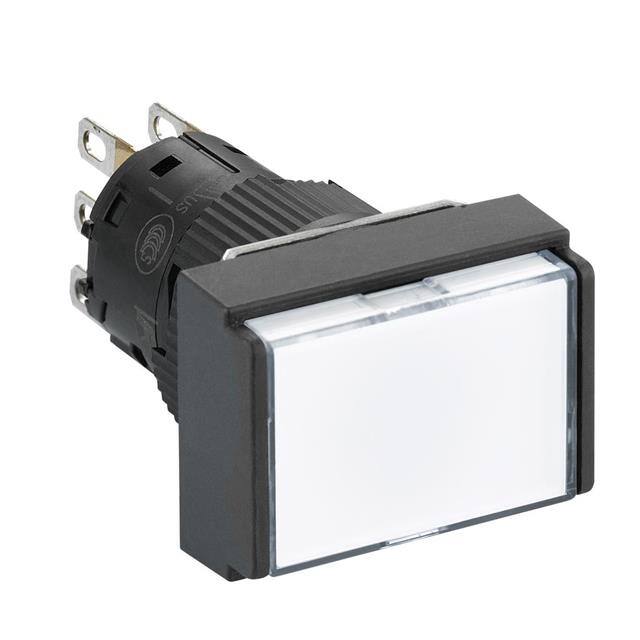

XB6EDW1B1PILLUMINATED MONOLITHIC PUSH BUTT |
1,193 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Rectangular, Button, Flush | - | White | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB6ECW6B2PILLUMINATED MONOLITHIC PUSH BUTT |
3,318 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | Off-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | Blue | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB6ECF1B2PILLUMINATED MONOLITHIC PUSH BUTT |
2,839 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | DPDT | Off-On | - | - | - | Square, Button | - | White | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB7NA81PUSH BUTTON, HARMONY XB7, PB, SP |
3,419 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NA11341HARMONY XB7, MONOLITHIC PUSH BUT |
3,228 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB6EDW4B1PILLUMINATED MONOLITHIC PUSH BUTT |
2,151 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Rectangular, Button, Flush | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

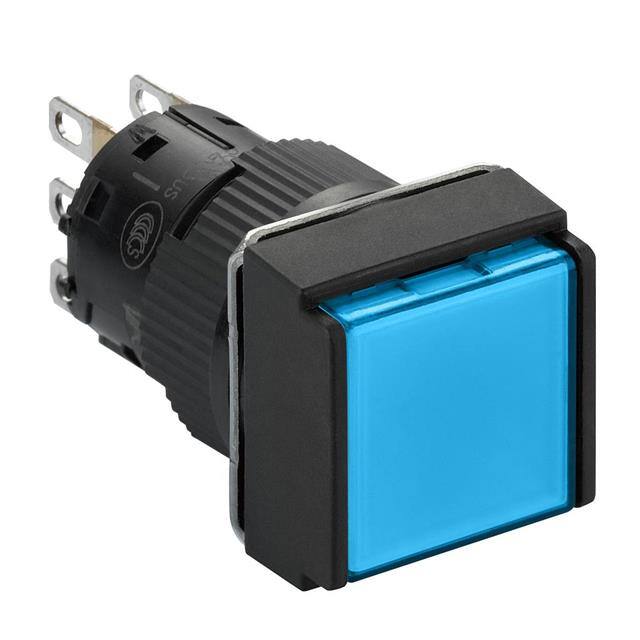

XB6ECF6B1PILLUMINATED MONOLITHIC PUSH BUTT |
3,600 | - |
|
Datasheet | Harmony XB6E | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | - | - | - | Square, Button | - | Blue | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
XB7NA65HARMONY XB7, MONOLITHIC PUSH BUT |
4,981 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB7NA23PUSH BUTTON, HARMONY XB7, PB, SP |
3,704 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
