Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB5FA3341HARMONY XB5, ANTIMICROBIAL PUSH |
4,651 | - |
|
Datasheet | XB5F | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB5FA3351HARMONY XB5, ANTIMICROBIAL PUSH |
4,085 | - |
|
Datasheet | XB5F | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
XB7NW34M2HARMONY XB7, MONOLITHIC ILLUMINA |
3,438 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 230 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

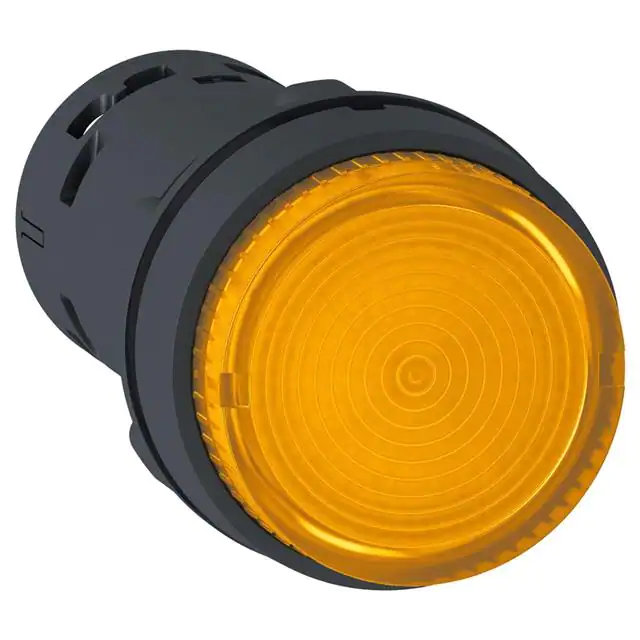

XB7NW35B1HARMONY XB7, MONOLITHIC ILLUMINA |
4,215 | - |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | LED, Orange | 24 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
ZB5AW062COMPLETE BODY/CONTACT ASSEMBLY A |
4,485 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | - | - | 250 VAC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
ZB5AW0B13HARMONY XB5, LIGHT BLOCK WITH BO |
1,563 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | White | LED, White | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
|
XB5FW35B5HARMONY XB5, ANTIMICROBIAL ILLUM |
4,380 | - |
|
Datasheet | XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Orange | Incandescent, Orange | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|

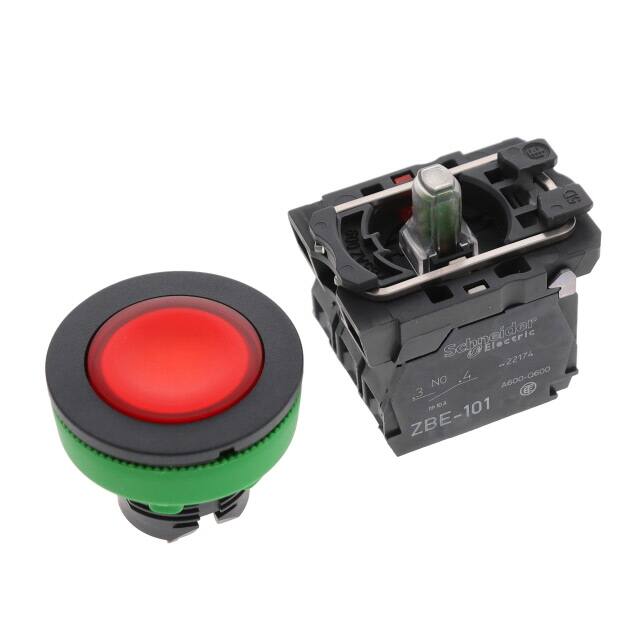

XB5FW34G5HARMONY XB5, ANTIMICROBIAL ILLUM |
2,164 | - |
|
Datasheet | XB5F | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|

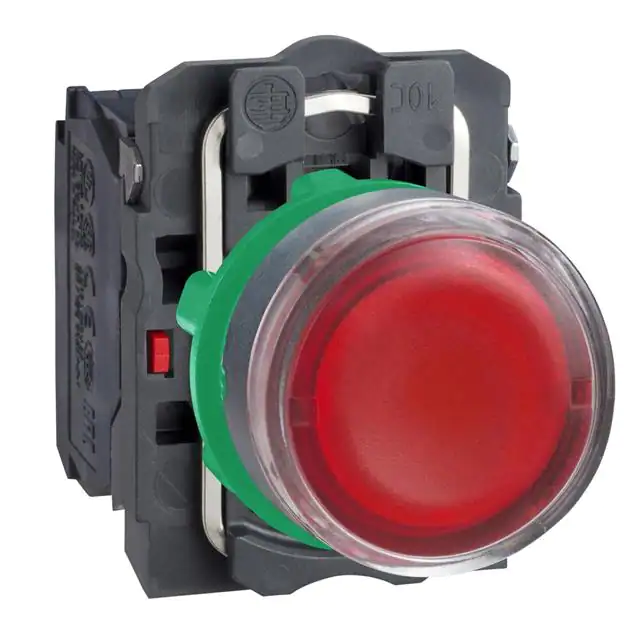

XB5AW3465HARMONY XB5, ILLUMINATED PUSH BU |
1,827 | - |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 250 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

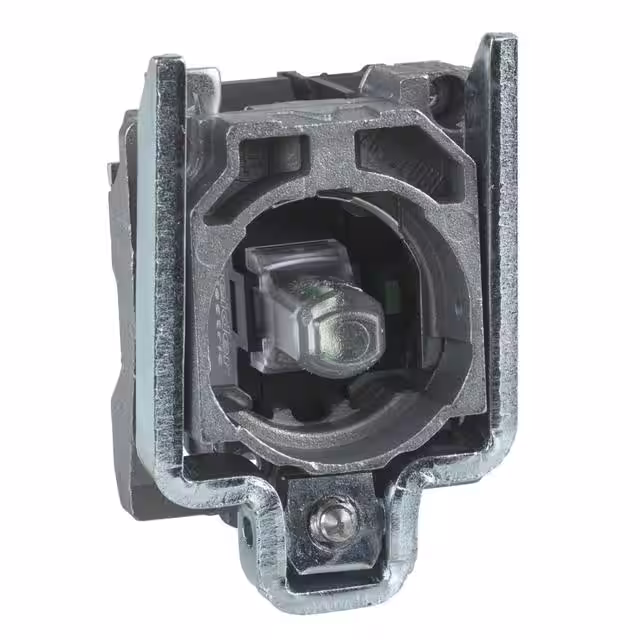

ZB4BW0B12COMPLETE BODY/CONTACT ASSEMBLY A |
3,625 | - |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Rectangular, Button (Not Included) | - | White | LED, White | 24 VDC | Screw Terminal | - | - | - | -40°C ~ 70°C |
