Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSP103BSWITCH PUSH SPST-NC 3A 125V |
3,890 | - |
|
Datasheet | MSP3 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
PBS8MTRESSWITCH PUSHBUTTON SPDT 0.4VA 20V |
102 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C |
|
PBS8MZRESSWITCH PUSHBUTTON SPDT 0.4VA 20V |
353 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | Process Sealed | - | -30°C ~ 85°C |
|
TPB11CGPC0SWITCH PUSH SPST-NO 0.4VA 20V |
3,386 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

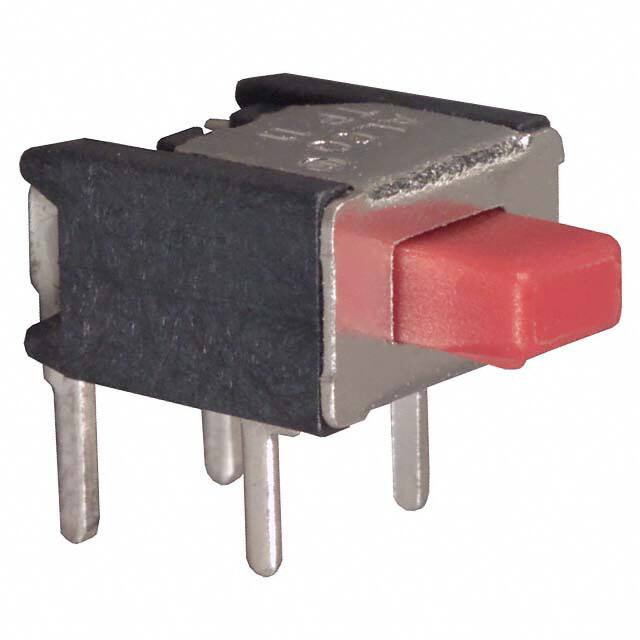

TP11CGRA2SWITCH PUSH SPST-NO 0.4VA 20V |
3,674 | - |
|
Datasheet | TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

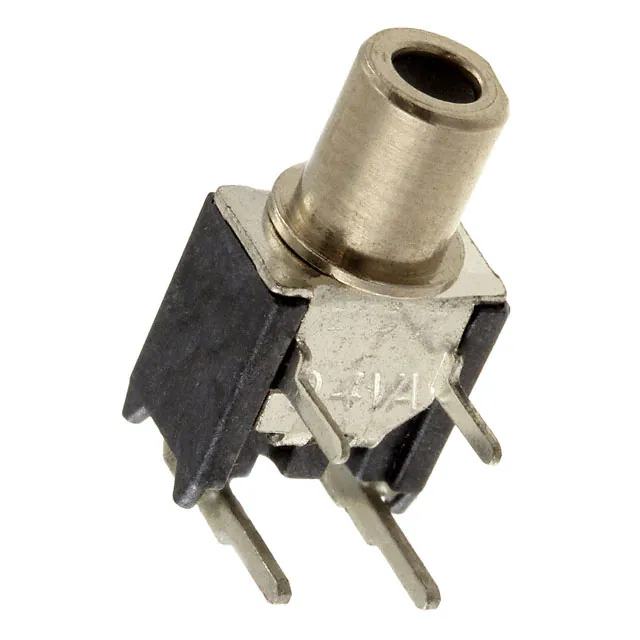

2-1825097-1SWITCH PUSH SPST-NO 0.4VA 20V |
1,390 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
1825096-7SWITCH PUSHBUTTON SPDT 0.4VA 20V |
1,427 | - |
|
Datasheet | TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

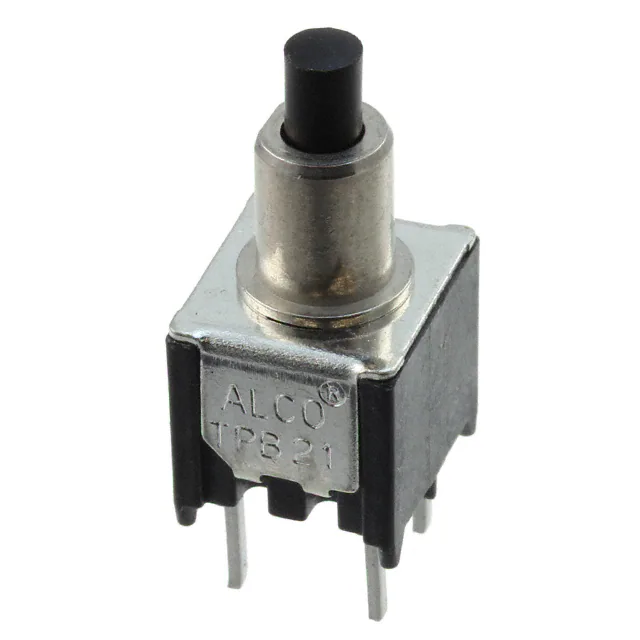

1-1825097-7SWITCH PUSH DPST-NO 0.4VA 20V |
4,482 | - |
|
Datasheet | TP | Bulk | Active | Through Hole | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

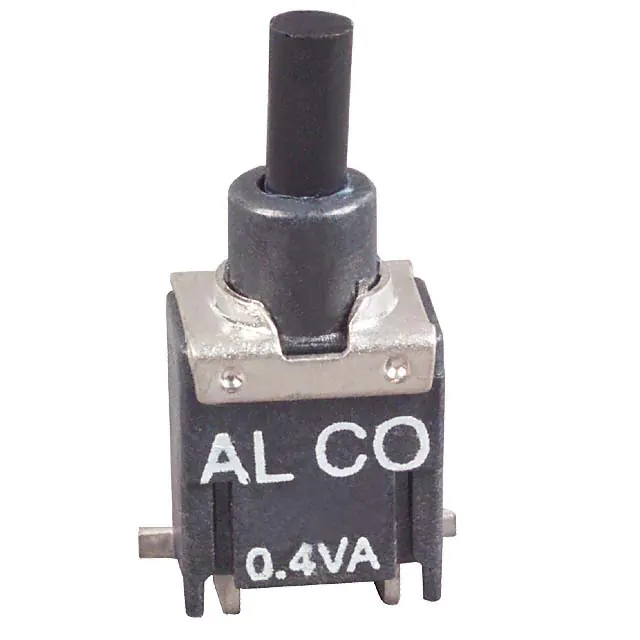

TSPD11CGSRA0SWITCH PUSH SPST-NO 0.4VA 20V |
4,029 | - |
|
Datasheet | TSP | Bulk | Obsolete | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
1825099-2SWITCH PUSH SPST-NO 0.4VA 20V |
3,397 | - |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
