Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV2221E712Q04SWITCH PUSHBUTTON DPDT 3A 250V |
3,795 | - |
|
Datasheet | AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2220E124Q04SWITCH PUSHBUTTON DPDT 3A 250V |
2,108 | - |
|
Datasheet | AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2220E112Q04SWITCH PUSHBUTTON DPDT 3A 250V |
2,143 | - |
|
Datasheet | AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2210E324R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
2,722 | - |
|
Datasheet | AV22 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
AVH22MSSFE17242604SWITCH PUSHBUTTON SPDT 26A 125V |
3,147 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 26A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
AV1920EG12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
100 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

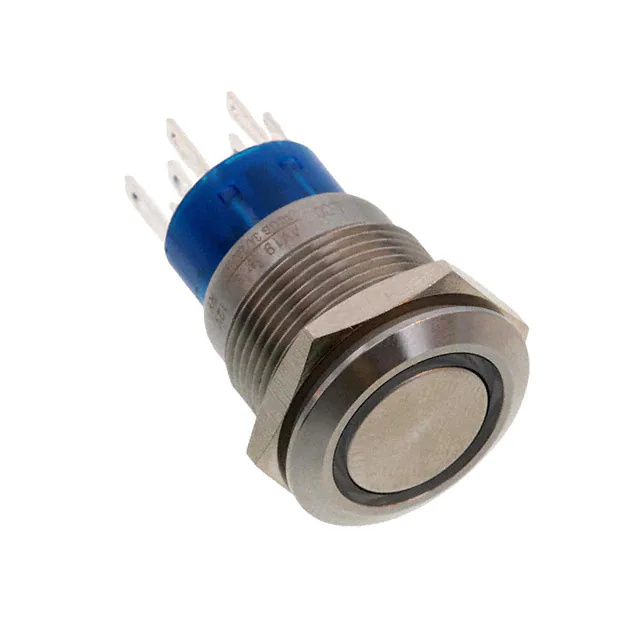

AV1920RG12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
1,804 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1920EB12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
3,501 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920RA12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
3,981 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

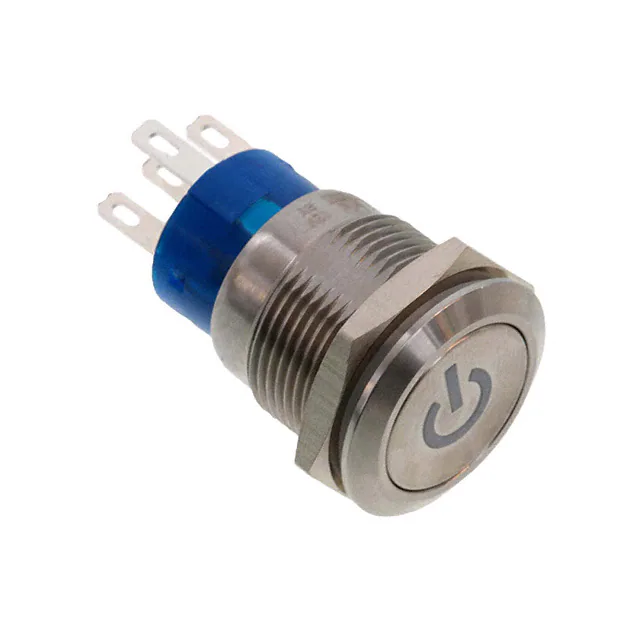

AV1911PG12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
1,364 | - |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red/Yellow | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
