Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH19LSFEA121604SWITCH PUSHBUTTON SPDT 16A 125V |
2,582 | - |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFP7121604SWITCH PUSHBUTTON SPDT 16A 125V |
2,084 | - |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFP7121604SWITCH PUSHBUTTON SPDT 16A 125V |
3,125 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFP6241604SWITCH PUSHBUTTON SPDT 16A 125V |
2,187 | - |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|

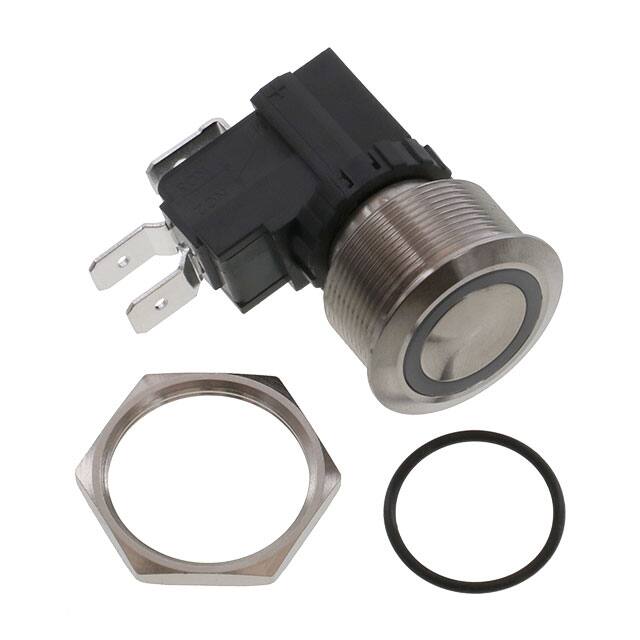

AVH25MSSFO002604SWITCH PUSHBUTTON SPDT 26A 125V |
4,296 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH19LSFE16241604SWITCH PUSHBUTTON SPDT 16A 125V |
1,930 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFP6121604SWITCH PUSHBUTTON SPDT 16A 125V |
4,861 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFEB241604SWITCH PUSHBUTTON SPDT 16A 125V |
2,006 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|

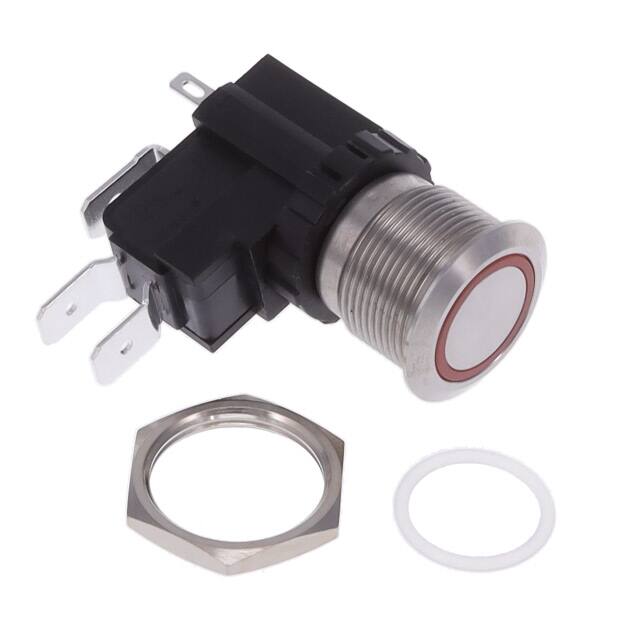

AVH19LSFE3122604SWITCH PUSHBUTTON SPDT 26A 125V |
3,197 | - |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AV2510MA12T5Q04SWITCH PUSHBUTTON SPDT 3A 250V |
2,704 | - |
|
Datasheet | AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
