Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PN22LESA03QESWITCH PUSH DPDT 0.2A 30V |
320 | - |
|
Datasheet | PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
K12PBK23.5NSWITCH PUSH SPST-NO 0.1A 30V |
443 | - |
|
Datasheet | K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|

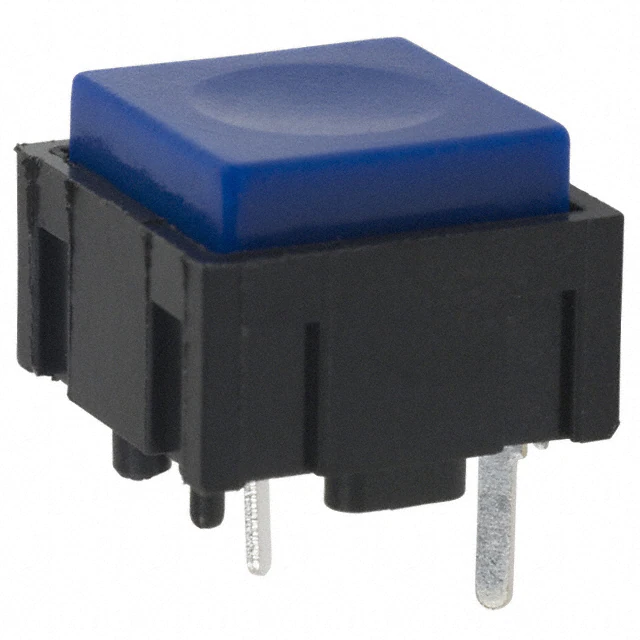

KS11R27CQDSWITCH PUSH SPST-NO 0.025A 50V |
500 | - |
|
Datasheet | KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
FLT2UEETBSWITCH PUSH DPDT 0.5A 125V |
472 | - |
|
Datasheet | F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|

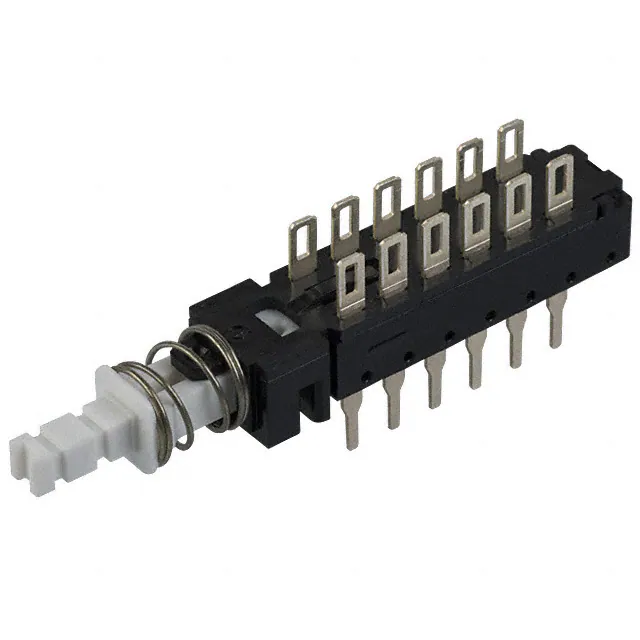

F4UOASWITCH PUSH 4PDT 0.5A 125V |
729 | - |
|
Datasheet | F | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
F2UOA TBSWITCH PUSH DPDT 0.5A 125V |
237 | - |
|
Datasheet | F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
K12PL GN 1.5 5N LV306SWITCH PUSH SPST-NO 0.1A 30V |
163 | - |
|
Datasheet | K12 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Green | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
K12SCLOR01.56NOLFTXSWITCH PUSH SPST-NO 0.1A 30V |
2,669 | - |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Orange | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
|
K12SC S 1.5 5N O LFTXSWITCH PUSH SPST-NO 0.1A 30V |
8,481 | - |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
|
K12SCD1.56/12NOOLFTXSWITCH PUSH DPST-NO 0.1A 30V |
3,328 | - |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
