Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5511MYELYELSWITCH PUSH SPDT 0.3A 12V |
4,512 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

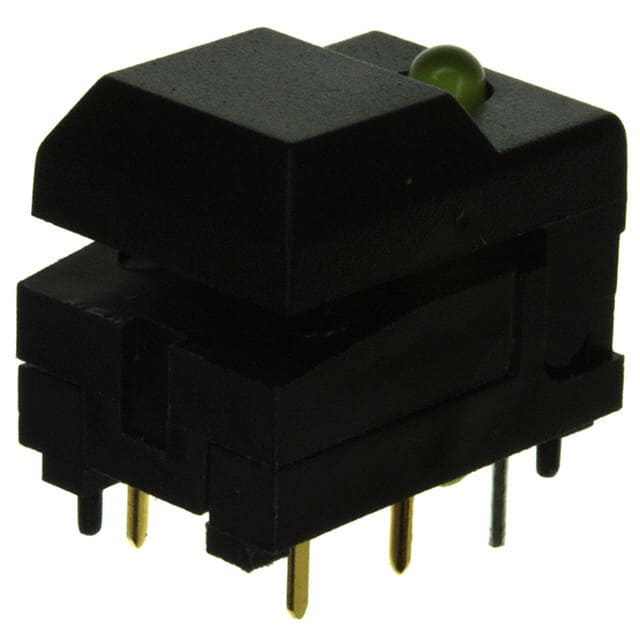

5501MBLKYELSWITCH PUSH SPDT 0.3A 12V |
2,885 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MYELXSWITCH PUSH SPDT 0.3A 12V |
3,889 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MYELYELSWITCH PUSH SPDT 0.3A 12V |
1,790 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MREDYELSWITCH PUSH SPDT 0.3A 12V |
4,286 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501M71SWITCH PUSH SPDT 0.3A 12V |
3,059 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | - | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MGRNGRNSWITCH PUSH SPDT 0.3A 12V |
1,437 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Green | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5501MORGREDSWITCH PUSH SPDT 0.3A 12V |
1,009 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Orange | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5511MBLUREDSWITCH PUSH SPDT 0.3A 12V |
3,733 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Blue | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
5511MGRNGRNSWITCH PUSH SPDT 0.3A 12V |
2,638 | - |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Green | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
