Pushbutton Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

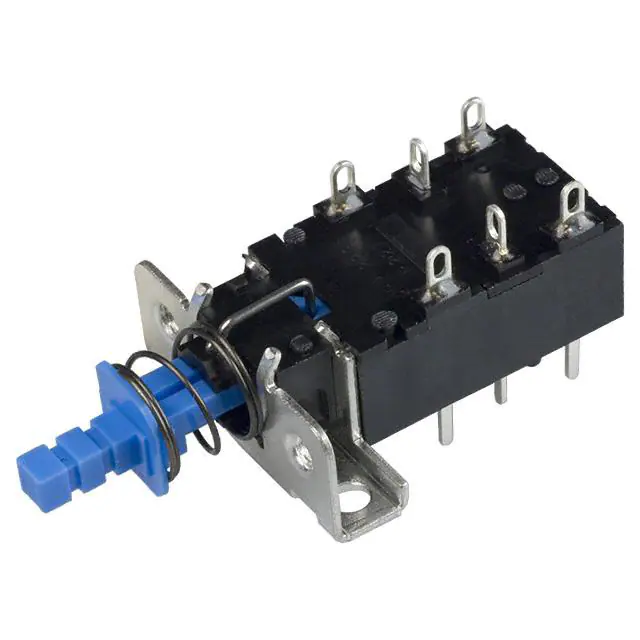

P227EE2B20ASWITCH PUSHBUTTON DPDT 7A 125V |
3,785 | - |
|
Datasheet | P227 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 7A (AC) | 125 V | - | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
1XTA000302/2UEEAAGPNSWITCH PUSH DPDT 0.5A 100V |
1,063 | - |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
1XMTH2UEESWITCH PUSH DPDT 0.1A 30V |
4,958 | - |
|
Datasheet | MTH | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

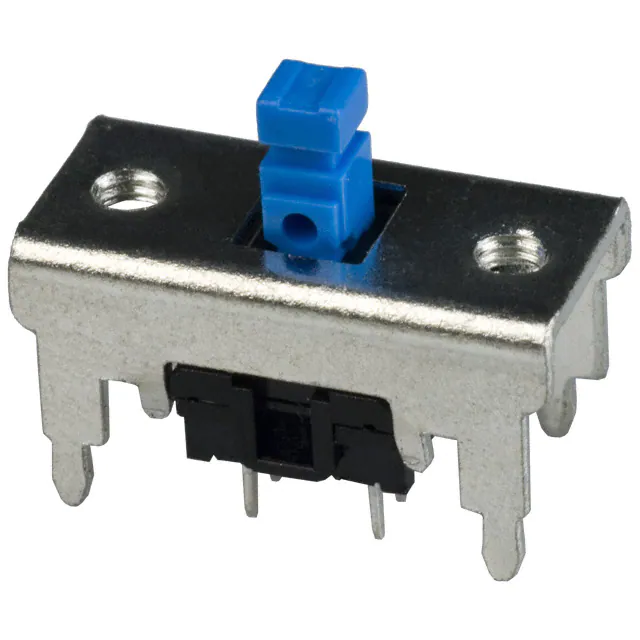

1XJN002UEESWITCH PUSH DPDT 0.1A 30V |
4,600 | - |
|
Datasheet | JN | Bulk | Obsolete | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
|
TA2UEEAAGPNSWITCH PUSH DPDT 0.5A 100V |
1,384 | - |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA2UOAAAGPNSWITCH PUSH DPDT 0.5A 100V |
1,591 | - |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA2UEECAGPNSWITCH PUSH DPDT 0.5A 100V |
2,804 | - |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA4UOAAAGPNSWITCH PUSH 4PDT 0.5A 100V |
4,248 | - |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA4UEEAAGPNSWITCH PUSH 4PDT 0.5A 100V |
3,828 | - |
|
Datasheet | TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
P227EE2B18ASWITCH PUSHBUTTON DPDT 7A 125V |
1,395 | - |
|
Datasheet | P227 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 7A (AC) | 125 V | - | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
