RF Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

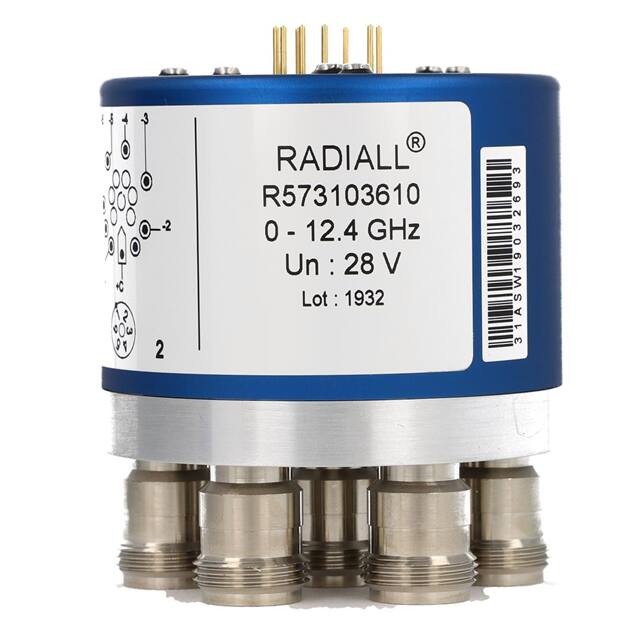

R574122340IC RF SWITCH SP3T 12.4GHZ |
4,631 | - |
|
Datasheet | SPnT | Module | Bulk | Active | General Purpose | - | SP3T | 0Hz ~ 12.4GHz | 60dB (min) | 0.5dB (max) | 12.4GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | - |
|
R573882420IC RF SWITCH SP4T 40GHZ |
2,480 | - |
|
Datasheet | SPnT | Module | Bulk | Active | General Purpose | - | SP4T | 0Hz ~ 40GHz | 50dB (min) | 1.1dB (max) | 40GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | - |
|
R574F03615IC RF SWITCH SP6T 26.5GHZ |
1,510 | - |
|
Datasheet | SPnT | Module | Bulk | Active | General Purpose | - | SP6T | 0Hz ~ 26.5GHz | 50dB (min) | 0.7dB (max) | 26.5GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | - |
|
R574803400IC RF SWITCH SP4T 40GHZ |
3,107 | - |
|
Datasheet | SPnT | Module | Bulk | Active | General Purpose | - | SP4T | 0Hz ~ 40GHz | 50dB (min) | 1.1dB (max) | 40GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | - |
|
R574802400IC RF SWITCH SP4T 40GHZ |
2,008 | - |
|
Datasheet | SPnT | Module | Bulk | Active | General Purpose | - | SP4T | 0Hz ~ 40GHz | 50dB (min) | 1.1dB (max) | 40GHz | - | - | - | 50Ohm | 10.2V ~ 13V | -40°C ~ 85°C | - | - | - | - |
|
|
FMWGS6028WG EM RELAY SWITCH WR-187 5.85 G |
3,718 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 3.95GHz ~ 5.85GHz | 80dB (min) | 0.02dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6032WG EM RELAY SWITCH WR-159 7.05 G |
3,566 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 4.9GHz ~ 7.05GHz | 70dB (min) | 0.02dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6038WG EM RELAY SWITCH WR-102 11 GHZ |
1,678 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7GHz ~ 11GHz | 80dB (min) | 0.06dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6062WG EM RELAY SWITCH WR-90 12.4 GH |
4,691 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Absorptive | SPDT, DPDT | 8.2GHz ~ 12.4GHz | 85dB | 0.05dB | - | - | - | - | 50Ohm | 10.8V ~ 13.2V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6042WG EM RELAY SWITCH WR-34 33 GHZ |
1,424 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 22GHz ~ 33GHz | 60dB (min) | 0.15dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6063WG EM RELAY SWITCH WR-90 12.4 GH |
4,045 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Absorptive | SPDT, DPDT | 8.2GHz ~ 12.4GHz | 85dB | 0.05dB | - | - | - | - | 50Ohm | 25.2V ~ 30.8V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6056WG EM RELAY SWITCH WR-28 40 GHZ |
2,956 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Absorptive | SPDT, DPDT | 26.5GHz ~ 40GHz | 69dB | 0.07dB | - | - | - | - | 50Ohm | 10.8V ~ 13.2V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6037WG EM RELAY SWITCH WR-102 11 GHZ |
1,645 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7GHz ~ 11GHz | 80dB (min) | 0.06dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6057WG EM RELAY SWITCH WR-28 40 GHZ |
2,356 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Absorptive | SPDT, DPDT | 26.5GHz ~ 40GHz | 69dB | 0.07dB | - | - | - | - | 50Ohm | 25.2V ~ 30.8V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6034WG EM RELAY SWITCH WR-159 7.05 G |
1,848 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 4.9GHz ~ 7.05GHz | 70dB (min) | 0.02dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6036WG EM RELAY SWITCH WR-102 11 GHZ |
1,173 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 7GHz ~ 11GHz | 80dB (min) | 0.06dB (max) | - | - | - | - | - | 21V ~ 32V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
FMWGS6030WG EM RELAY SWITCH WR-187 5.85 G |
3,320 | - |
|
Datasheet | - | - | Bag | Active | Radar, VSAT | Reflective | SPDT, DPDT | 3.95GHz ~ 5.85GHz | 80dB (min) | 0.02dB (max) | - | - | - | - | - | 10V ~ 20V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
R574G13420IC RF SWITCH SP4T 18GHZ |
4,080 | - |
|
Datasheet | RAMSES | Module, SMA Connectors | Bulk | Active | General Purpose | - | SP4T | DC ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | - | - |
|
|
FMSW6371EM RELAY SWITCH 26.5 GHZ 28 V SM |
1,444 | - |
|
Datasheet | - | - | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMSW6206EM RELAY SWITCH 8 GHZ 12 V TNC |
1,977 | - |
|
Datasheet | - | - | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
