Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA1113112RSWITCH ROCKER SPST 10A 125V |
8,888 | - |
|
Datasheet | RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA11131121SWITCH ROCKER SPST 10A 125V |
15,771 |
1+：$0.51200 10+：$0.44320 25+：$0.41824 50+：$0.40016 200+：$0.36620 400+：$0.35032 600+：$0.34134 1000+：$0.33033 |
|
Datasheet | RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
GRS-2011-2000SWITCH ROCKER SPST 16A 125V |
11,144 | - |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
GRS-2013A-2000SWITCH ROCKER SPDT 16A 125V |
0 | - |
|
Datasheet | 2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
RR511D1121SWITCH ROCKER SPST 20A 125V |
9,475 |
1+：$1.04800 10+：$0.90800 25+：$0.85632 50+：$0.81936 100+：$0.78384 400+：$0.71720 800+：$0.68597 1200+：$0.66832 |
|
Datasheet | RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|
GRS-4011-1600SWITCH ROCKER SPST 16A 125V |
0 | - |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4012-1600SWITCH ROCKER SPDT 16A 125V |
6,204 |
1+：$0.97600 10+：$0.84160 25+：$0.79360 50+：$0.75920 100+：$0.72632 250+：$0.68496 500+：$0.65515 1000+：$0.62661 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
CRE22F4DBBNESWITCH ROCKER SPST 20A 125V |
22,160 | - |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
SRB22A2FBBNNSWITCH ROCKER SPST 10A 125V |
5,952 |
1+：$1.08800 10+：$0.94240 25+：$0.88896 50+：$0.85040 100+：$0.81344 300+：$0.75818 500+：$0.73371 1000+：$0.70174 |
|
Datasheet | SR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | - |
|
R1966ABLKBLKFFSWITCH ROCKER SPST 15A 125V |
7,766 |
1+：$1.25600 10+：$1.08400 25+：$1.02208 50+：$0.97792 100+：$0.93552 250+：$0.88218 500+：$0.84378 1000+：$0.80698 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
GRS-4022-1600SWITCH ROCKER DPDT 16A 125V |
523 |
1+：$1.49600 10+：$1.28960 25+：$1.21600 50+：$1.16336 100+：$1.11288 250+：$1.04941 500+：$1.00370 |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
CRE22F4BBBNESWITCH ROCKER SPST 20A 125V |
7,511 |
1+：$1.48000 10+：$1.28000 25+：$1.20736 50+：$1.15488 100+：$1.10480 300+：$1.02968 500+：$0.99643 1000+：$0.95297 |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
CRE22F2FBBNESWITCH ROCKER SPST 20A 125V |
5,858 |
1+：$1.36000 10+：$1.17440 25+：$1.10784 50+：$1.06000 100+：$1.01392 300+：$0.94496 500+：$0.91446 1000+：$0.87458 |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
LRA32H2FBBNNSWITCH ROCKER DPST 10A 125V |
2,165 | - |
|
Datasheet | LR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|
PRK22J5DBBNNSWITCH ROCKER SPST 6A 125V |
9,958 | - |
|
Datasheet | PR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Flat | Black | ON OFF, Vertical | - | - | Solder Lug | - | - | Rectangular - 13.60mm x 9.20mm | -20°C ~ 65°C | - |
|

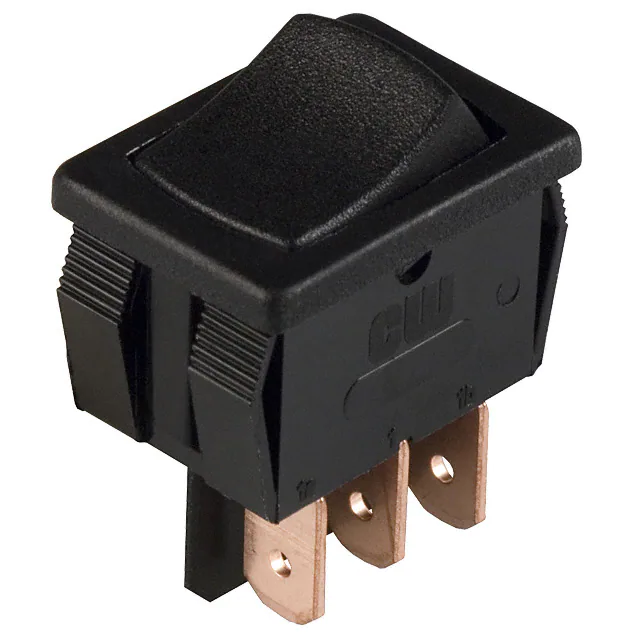

GRS-4013C-0001SWITCH ROCKER SPDT 8A 125V |
5,101 | - |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
R1966ABLKBLKGRSWITCH ROCKER SPST 15A 125V |
9,742 |
1+：$1.58400 10+：$1.37040 25+：$1.29248 84+：$1.19600 168+：$1.14400 252+：$1.11460 504+：$1.06606 1008+：$1.01955 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

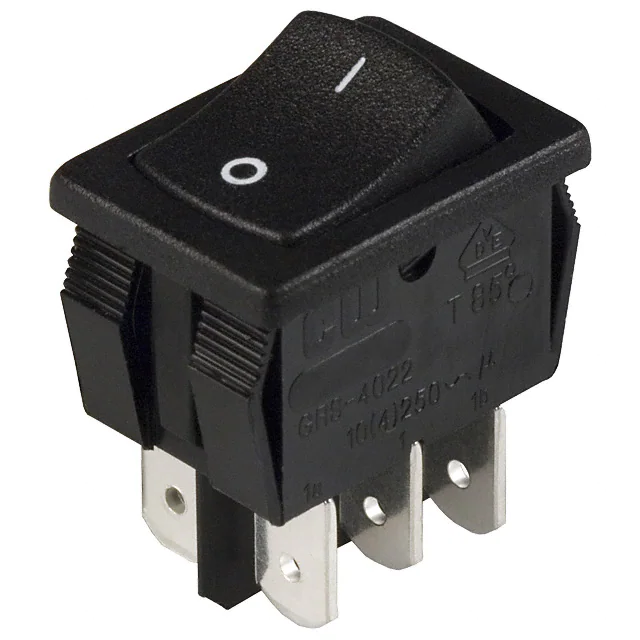

GRS-4022-0013SWITCH ROCKER DPDT 16A 125V |
3,155 | - |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
CRE24F2HBBNESWITCH ROCKER SPDT 20A 125V |
3,978 |
1+：$1.96000 10+：$1.69200 25+：$1.59552 50+：$1.52640 100+：$1.46008 300+：$1.36066 500+：$1.31669 1000+：$1.25919 |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
R4GBLKBLKEF0SWITCH ROCKER SPDT 15A 125V |
10,213 | - |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
