Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A29K1P-DASWITCH ROCKER DPDT 0.4VA 28V |
2,704 | - |
|
Datasheet | A | Box | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A29K1P-EASWITCH ROCKER DPDT 0.4VA 28V |
2,522 | - |
|
Datasheet | A | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3019/USWITCH ROCKER SPDT 5A 125V |
4,105 | - |
|
Datasheet | MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|

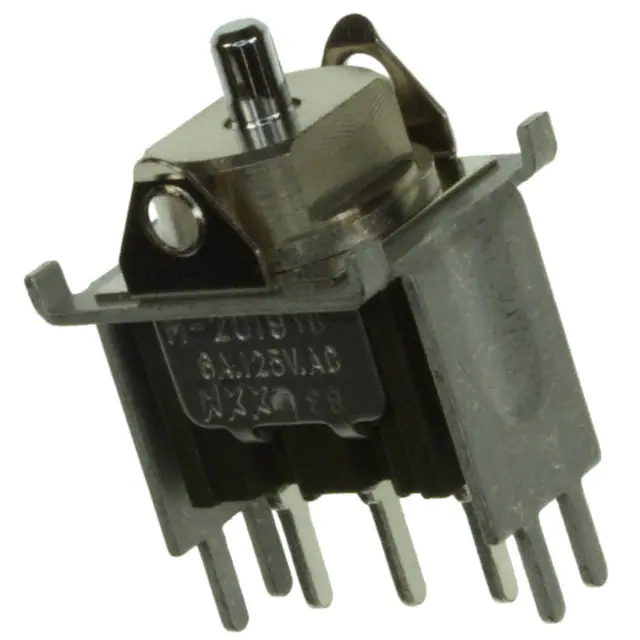

M2019TZW13SWITCH ROCKER SPDT 6A 125V |
3,664 | - |
|
Datasheet | M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2T18TXG30-DBSWITCH ROCKER SPDT 0.4VA 28V |
2,774 | - |
|
Datasheet | M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A18K1PSWITCH ROCKER SPDT 0.4VA 28V |
1,363 | - |
|
Datasheet | A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A18K1WSWITCH ROCKER SPDT 0.4VA 28V |
1,227 | - |
|
Datasheet | A | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3012-00-LC-1ASWITCH ROCKER SPDT 5A 125V |
2,352 | - |
|
Datasheet | MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
A25K1H-EASWITCH ROCKER DPDT 0.4VA 28V |
2,964 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

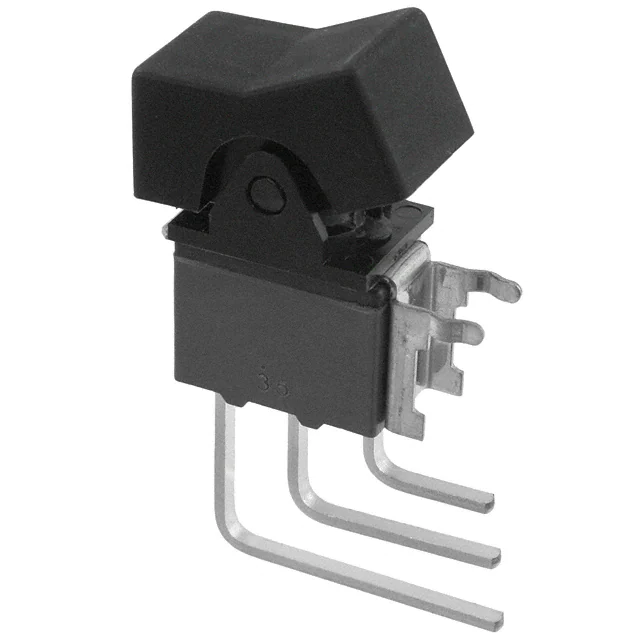

M2T12TXW41-DASWITCH ROCKER SPDT 6A 125V |
3,183 | - |
|
Datasheet | M2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
