Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN13TNW03FLAT FRAME MOUNT MINIATURE ROCKE |
4,434 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN12TXW13-GBSWITCH ROCKER MINI PC MOUNT |
2,917 | - |
|
Datasheet | M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | White | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN12TXW13-DFSWITCH ROCKER MINIATURE PC MNT |
4,283 | - |
|
Datasheet | M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Green | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN12TXW13-EABRACKET PC MOUNT MINIATURE ROCKE |
3,666 | - |
|
Datasheet | M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | - | - | - | - |
|
|
MLW3013-N-RB-1ASWITCH ROCKER SPDT 5A 125V |
3,825 | - |
|
Datasheet | MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Neon, White | 110 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
M2022TJW01-FA-2A-CSWITCH ROCKER DPDT 6A 125V |
4,301 | - |
|
Datasheet | M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
A2SKVSWITCH ROCKER DPDT 0.4VA 28V |
4,546 | - |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
MN12TJG01SWITCH ROCKER MINIATURE SNAP |
2,109 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
|

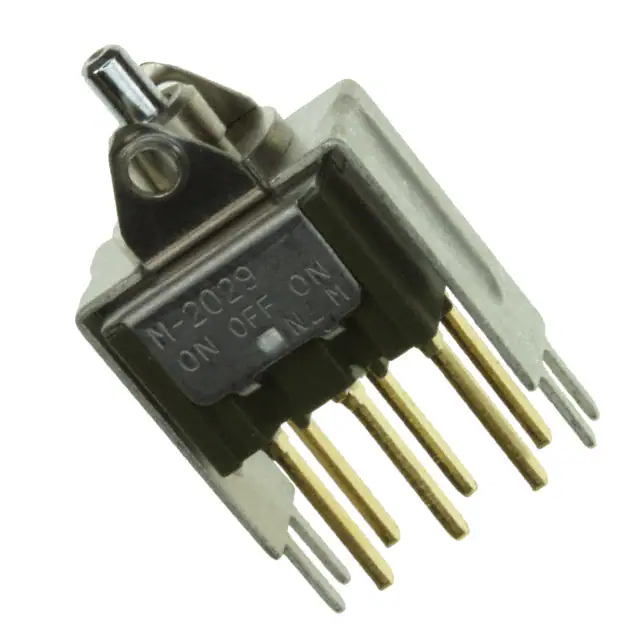

M2029TXG15SWITCH ROCKER DPDT 0.4VA 28V |
3,573 | - |
|
Datasheet | M | Bulk | Obsolete | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
MN12TZW13-JCSWITCH ROCKER MINI PC MOUNT |
3,454 | - |
|
Datasheet | M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
