Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN29TJW01-GA-1ASNAP-IN MOUNT MINIATURE ROCKER |
3,152 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN29TJW01-GG-1ASNAP-IN MOUNT MINIATURE ROCKER |
3,196 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN29TJW01-GC-1ASNAP-IN MOUNT MINIATURE ROCKER |
1,524 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN29TJW01-FA-1ASNAP-IN MOUNT MINIATURE ROCKER |
1,033 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN18TJG01-FB-3A-EESWITCH ROCKER MINIATURE SNAP |
3,639 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | White | No Marking | LED, Yellow/Yellow | 2.1 VDC | Solder Lug | - | - | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | UL |
|

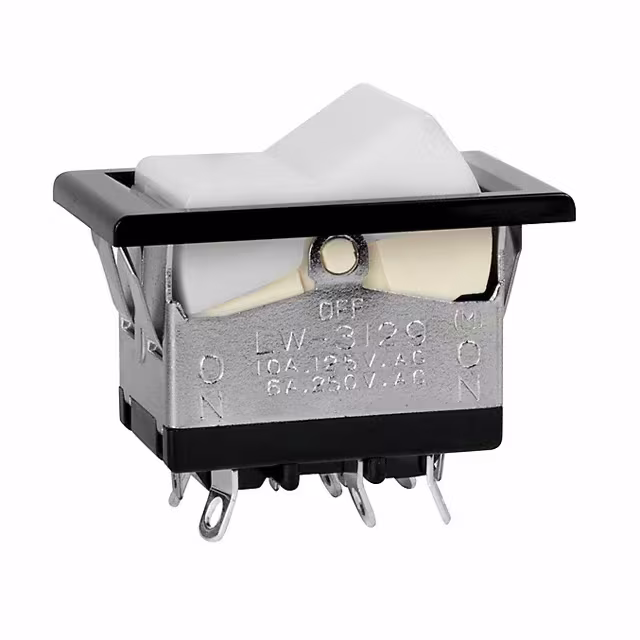

LW3129-0100-ASWITCH ROCKER DPDT 10A 125V |
2,929 | - |
|
Datasheet | LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
MN28TJW01-FC-1ASWITCH ROCKER MINIATURE SNAP |
1,234 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | UL |
|
|
MN28TJW01-FB-1BSWITCH ROCKER MINIATURE SNAP |
3,715 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | UL |
|
|
MN26TJW01-FA-1ASNAP-IN MOUNT MINIATURE ROCKER |
1,874 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN28TJW01-FG-1BSWITCH ROCKER MINIATURE SNAP |
1,223 | - |
|
Datasheet | M | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Blue | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | UL |
