Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW3821/A/UCSWITCH ROCKER DPST 30A 125V |
3,830 | - |
|
Datasheet | SW | Bulk | Obsolete | Panel Mount, Flange | DPST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
MNL13JCFW01-HLED TIPPED ROCKER |
3,061 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MNL13JCFW01-ALED TIPPED ROCKER |
1,366 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MNL13JCFW01-GLED TIPPED ROCKER |
4,648 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

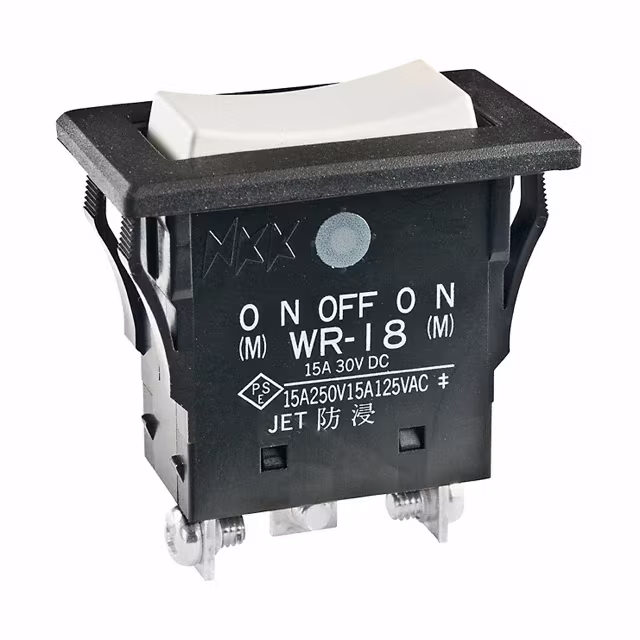

WR18BTSWITCH ROCKER SPDT 15A 125V |
4,662 | - |
|
Datasheet | WR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
WR19AT/CULSWITCH ROCKER SPDT 15A 125V |
4,143 | - |
|
Datasheet | WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
MLW3022-00-RCSWITCH ROCKER DPDT 5A 125V |
4,234 | - |
|
Datasheet | MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3022-C-SC-1ASWITCH ROCKER DPDT 5A 125V |
1,588 | - |
|
Datasheet | MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Red | No Marking | LED, Red | 1.85 VDC | Solder Lug | - | - | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
WR19AL/CULSWITCH ROCKER SPDT 15A 125V |
3,291 | - |
|
Datasheet | WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
LW3129-N2FC-ASWITCH ROCKER DPDT 10A 125V |
3,676 | - |
|
Datasheet | LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White (Red, Green Filter/Diffuser) | No Marking | Neon, Green/Red | 110 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
