Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRE22F4DBBNESWITCH ROCKER SPST 20A 125V |
22,160 | - |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
SRB22A2FBBNNSWITCH ROCKER SPST 10A 125V |
5,952 |
1+：$1.08800 10+：$0.94240 25+：$0.88896 50+：$0.85040 100+：$0.81344 300+：$0.75818 500+：$0.73371 1000+：$0.70174 |
|
Datasheet | SR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | - |
|
CRE22F4BBBNESWITCH ROCKER SPST 20A 125V |
7,511 |
1+：$1.48000 10+：$1.28000 25+：$1.20736 50+：$1.15488 100+：$1.10480 300+：$1.02968 500+：$0.99643 1000+：$0.95297 |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|

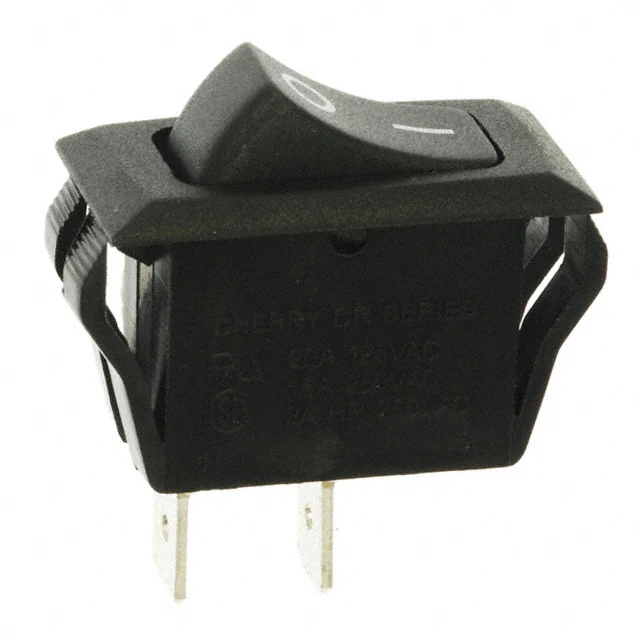

CRE22F2FBBNESWITCH ROCKER SPST 20A 125V |
5,858 |
1+：$1.36000 10+：$1.17440 25+：$1.10784 50+：$1.06000 100+：$1.01392 300+：$0.94496 500+：$0.91446 1000+：$0.87458 |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|

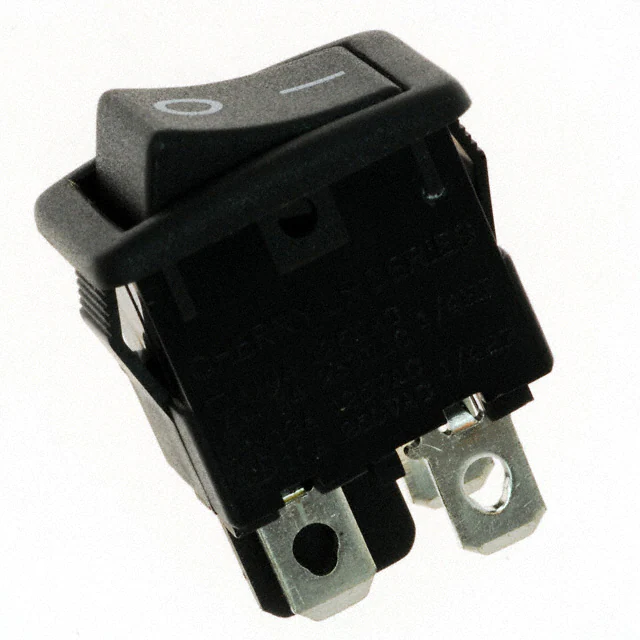

LRA32H2FBBNNSWITCH ROCKER DPST 10A 125V |
2,165 | - |
|
Datasheet | LR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|

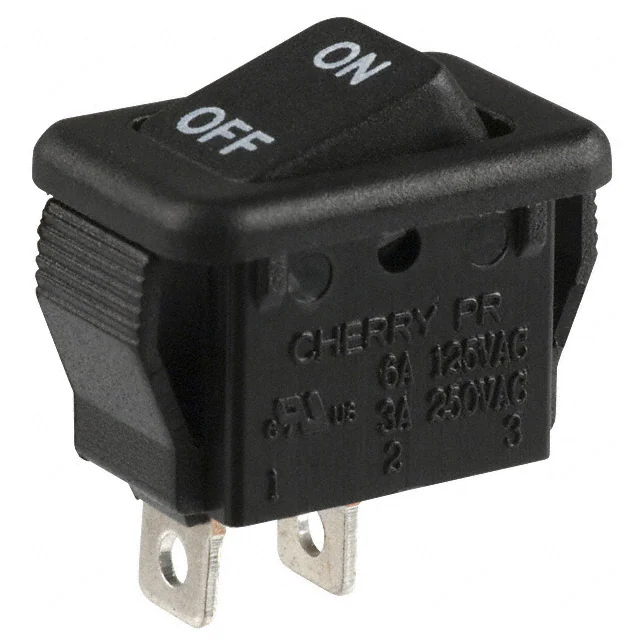

PRK22J5DBBNNSWITCH ROCKER SPST 6A 125V |
9,958 | - |
|
Datasheet | PR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Flat | Black | ON OFF, Vertical | - | - | Solder Lug | - | - | Rectangular - 13.60mm x 9.20mm | -20°C ~ 65°C | - |
|
CRE24F2HBBNESWITCH ROCKER SPDT 20A 125V |
3,978 |
1+：$1.96000 10+：$1.69200 25+：$1.59552 50+：$1.52640 100+：$1.46008 300+：$1.36066 500+：$1.31669 1000+：$1.25919 |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
CRE22F2BBRLESWITCH ROCKER SPST 20A 125V |
12,608 | - |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
WRG32F2FBBNNSWITCH ROCKER DPST 16A 125V |
12,463 | - |
|
Datasheet | WR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
KRE2ALA2RBBSWITCH ROCKER SPST 16A 125V |
8,168 | - |
|
Datasheet | KR | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 125 V | 28 V | Flat - Illuminated | Red | No Marking | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | - |
