Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

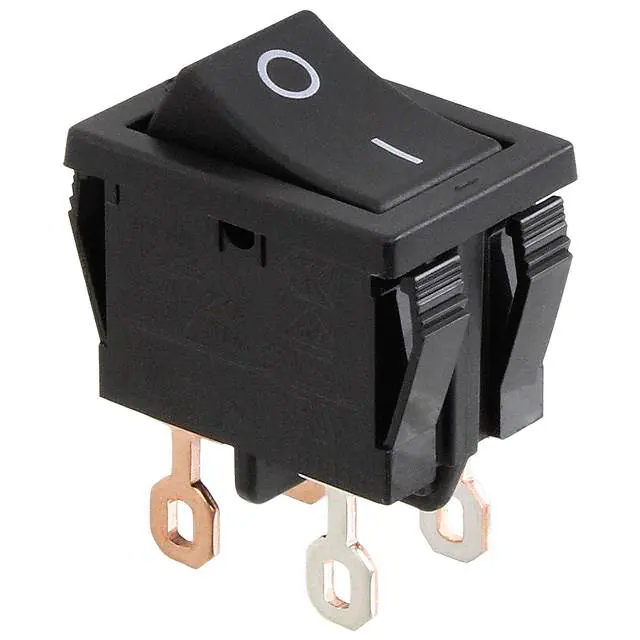

AJ7212BTVFSWITCH ROCKER DPST 10A 250V |
156 | - |
|
Datasheet | AJ7 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|
WB242D1100SWITCH ROCKER DPST 20A 125V |
889 | - |
|
Datasheet | WB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | CE, cULus, TUV |
|
400AWMSP4R2BLKM6QESWITCH ROCKER SPDT 3A 120V |
191 | - |
|
Datasheet | 400A | Tray | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
D501J12S2APQASWITCH ROCKER SPDT 10A 125V |
3,449 | - |
|
Datasheet | D | Tray | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

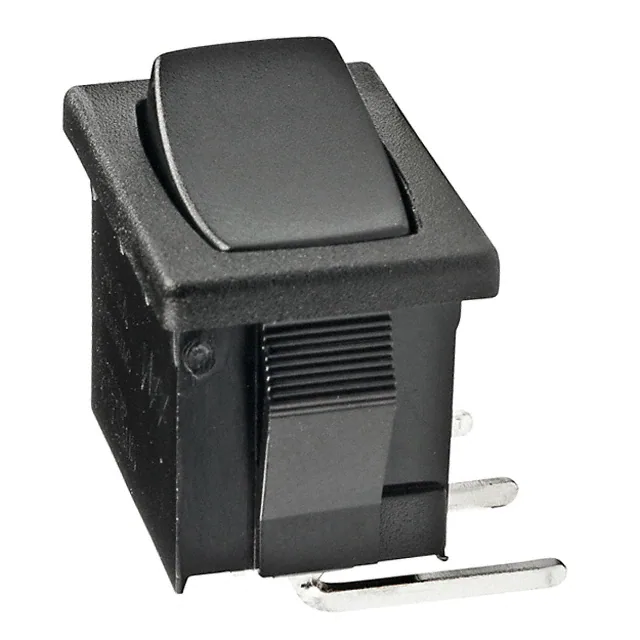

CWSA12AANHSWITCH ROCKER SPDT 6A 250V |
208 | - |
|
Datasheet | CWSA | Tray | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-On | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
400MSP4R6BLKM2QESWITCH ROCKER SPDT 3A 120V |
289 | - |
|
Datasheet | 400 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 7.11mm | -30°C ~ 85°C | cULus |
|
CWT12AAS1/USWITCH ROCKER SPDT 6A 125V |
1,690 | - |
|
Datasheet | CWT | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | Dust Proof | Epoxy Sealed Terminals | Rectangular - 19.20mm x 6.80mm | -25°C ~ 70°C | cULus |
|
D101J12S215QASWITCH ROCKER SPDT 4A 125V |
292 | - |
|
Datasheet | D | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 4A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

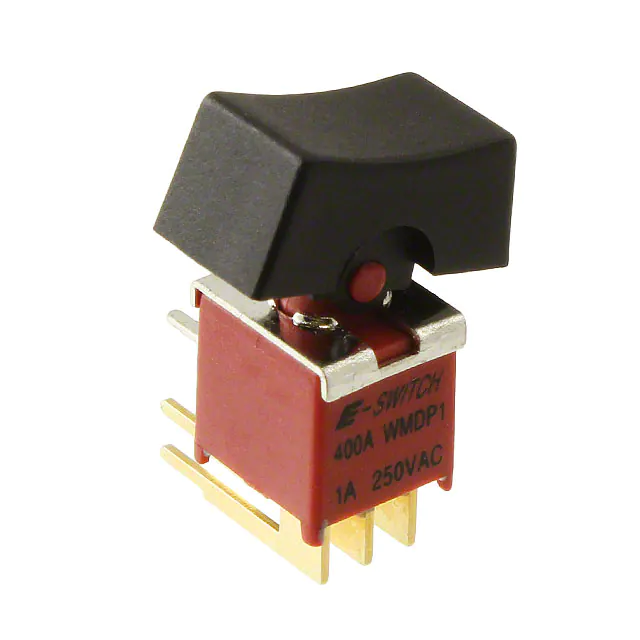

400AWMDP1R1M6QESWITCH ROCKER DPDT 3A 120V |
753 | - |
|
Datasheet | 400A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
400MDP3R1BLKM7QESWITCH ROCKER DPDT 3A 120V |
379 | - |
|
Datasheet | 400 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
GW22LCHSWITCH ROCKER DPDT 0.4VA 28V |
2,085 | - |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
GW22LHHSWITCH ROCKER DPDT 0.4VA 28V |
179 | - |
|
Datasheet | GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

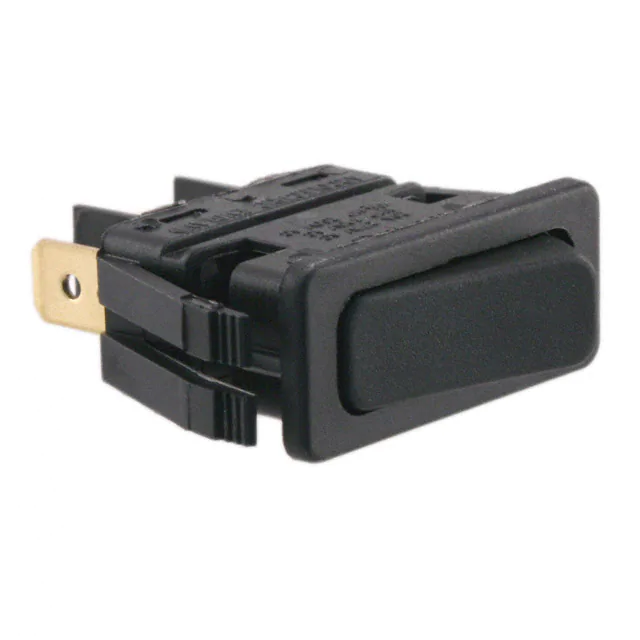

C6000ALBBSWITCH ROCKER SPST 20A 277V |
2,157 | - |
|
Datasheet | 6000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 277 V | - | Flat | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
1571095-5SWITCH ROCKER SPST 20A 125V |
820 | - |
|
Datasheet | PRC | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|
D102J12S215HQASWITCH ROCKER SPST 4A 125V |
205 | - |
|
Datasheet | D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
471NS03268640SWITCH ROCKER SPST 10A 250V |
94 |
1+：$3.60800 10+：$3.32240 100+：$3.15176 250+：$2.98074 500+：$2.80973 1000+：$2.46773 |
|
Datasheet | WS-RSTV | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 250 V | 28 V | Round - Illuminated | Amber | No Marking | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 85°C | CQC, ENEC, UL |
|
RMD1R102M6QESSWITCH ROCKER DPDT 3A 120V |
496 | - |
|
Datasheet | - | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | - |
|

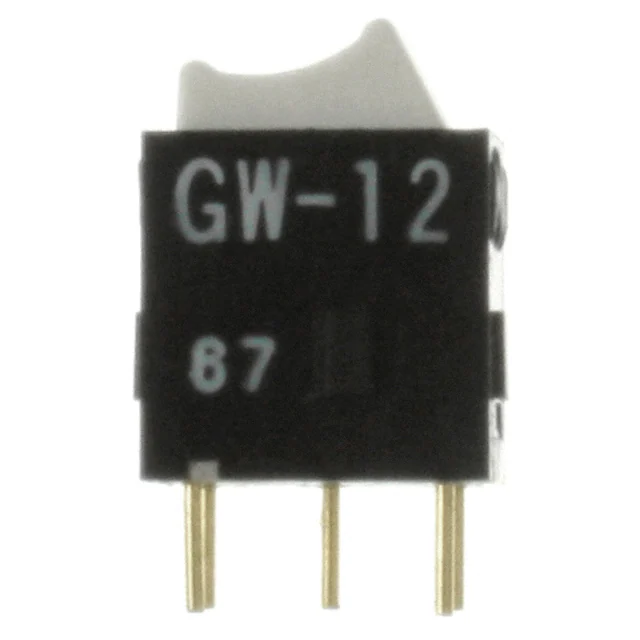

GW12RBPSWITCH ROCKER SPDT 0.4VA 28V |
133 | - |
|
Datasheet | GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
H8500VBBBSWITCH ROCKER SPST 15A 250V |
355 |
1+：$4.19200 10+：$3.61920 25+：$3.41280 50+：$3.26448 100+：$3.12232 250+：$2.94365 500+：$2.81501 1000+：$2.69177 |
|
Datasheet | 8500 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|

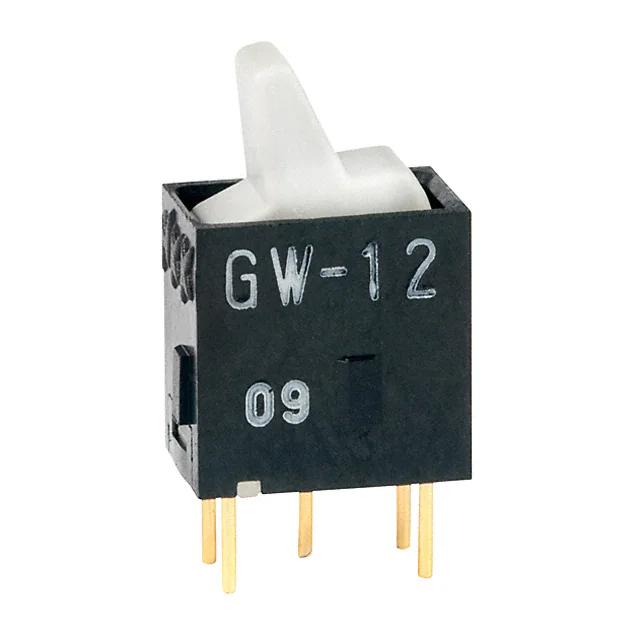

GW12LHPSWITCH ROCKER SPDT 0.4VA 28V |
111 | - |
|
Datasheet | GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
