Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1300ABAAASWITCH ROCKER SPST 20A 28V |
3,772 | - |
|
Datasheet | 1300 | - | Active | - | SPST | On-Off | 20A (DC) | - | 28 V | Concave (Curved) - Illuminated | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
H8550VBCBB-551WSWITCH ROCKER DPST 15A 250V |
3,839 | - |
|
Datasheet | 8500 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 12.90mm | - | CSA, UL |
|
|
R13112ABB-068WSWITCH ROCKER SPST 10A 125V |
1,177 | - |
|
Datasheet | R13 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | ON OFF, Horizontal | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|
|
C6050ALBB-1196WSWITCH ROCKER DPST 20A 277V |
2,163 | - |
|
Datasheet | 6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
R13112A2BBRSWITCH ROCKER SPST 10A 125V |
3,143 | - |
|
Datasheet | R13 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | - | CSA, UL |
|

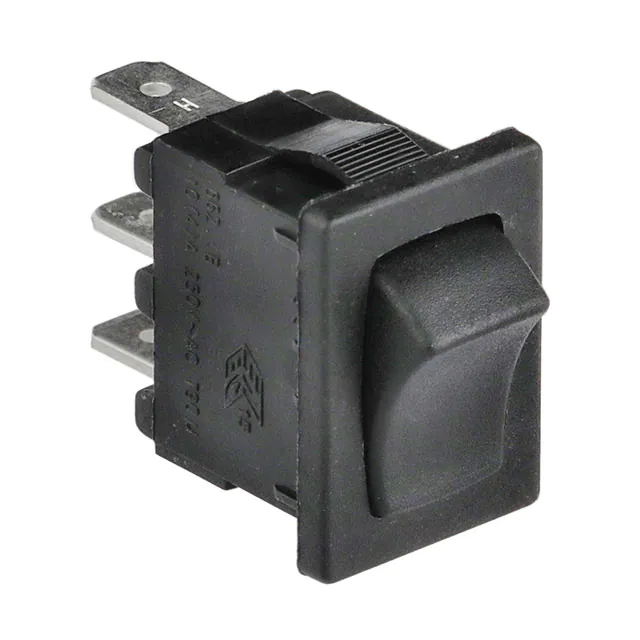

H8620VBAAASWITCH ROCK ON-OFF-ON |
4,943 | - |
|
Datasheet | - | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H8800VABB-132WSWITCH ROCKER SPST 15A 250V |
4,752 | - |
|
Datasheet | 8800 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 6.80mm | - | CSA, UL |
|
|
C1350AABB-1091WSWITCH ROCKER DPST-NO 20A 250V |
4,638 | - |
|
Datasheet | 1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
C6050ALBB-1229WSWITCH ROCKER DPST 20A 277V |
3,855 | - |
|
Datasheet | 6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

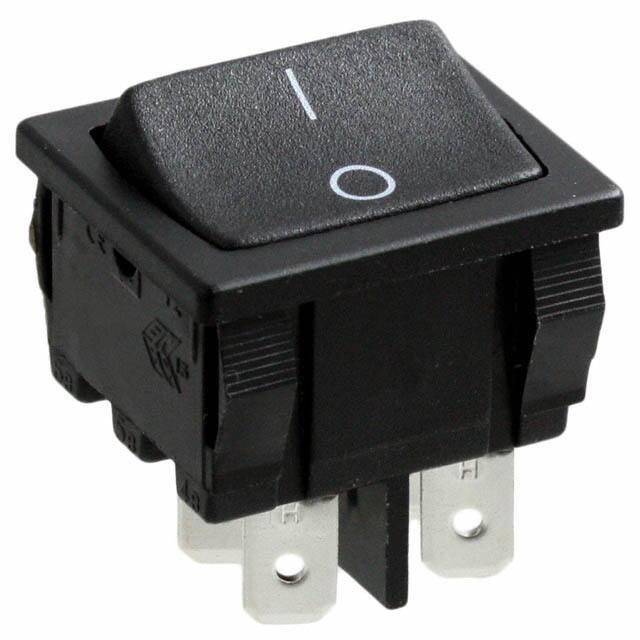

H8650VBBBEN577WSWITCH ROCKER DPST 10A 277V |
3,895 | - |
|
Datasheet | 8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 277 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
