Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

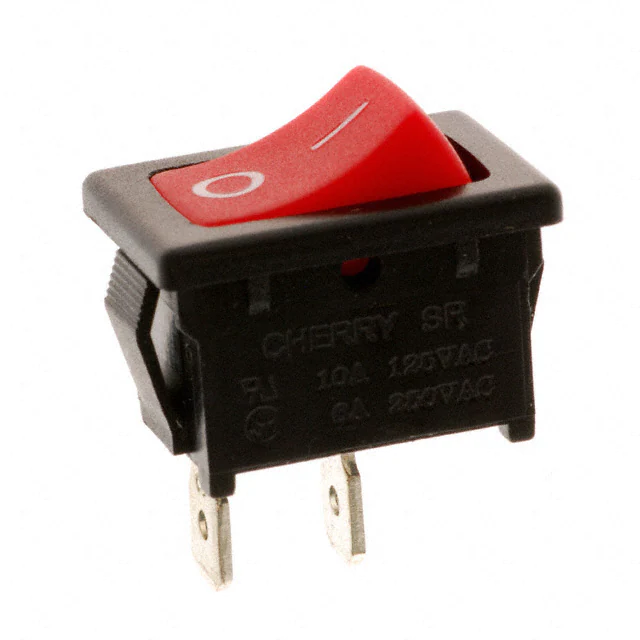

SRB22A2FBRNNSWITCH ROCKER SPST 10A 125V |
1,491 | - |
|
Datasheet | SR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | - |
|

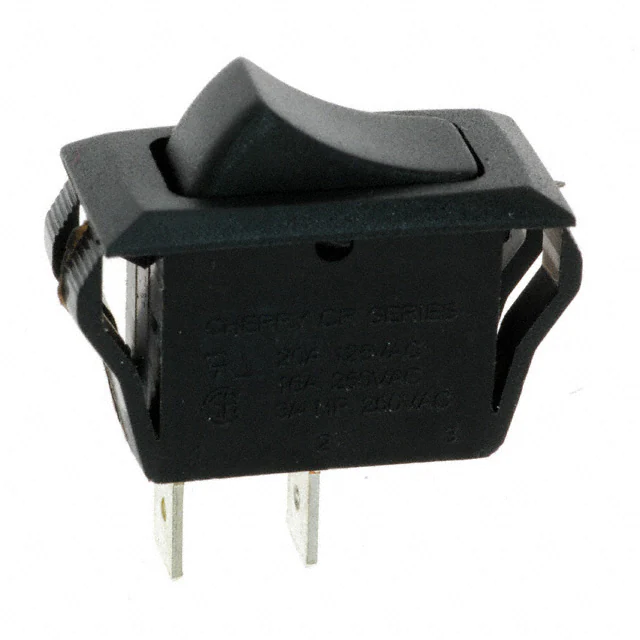

CRE22F2BBBNESWITCH ROCKER SPST 20A 125V |
4,309 | - |
|
Datasheet | CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|

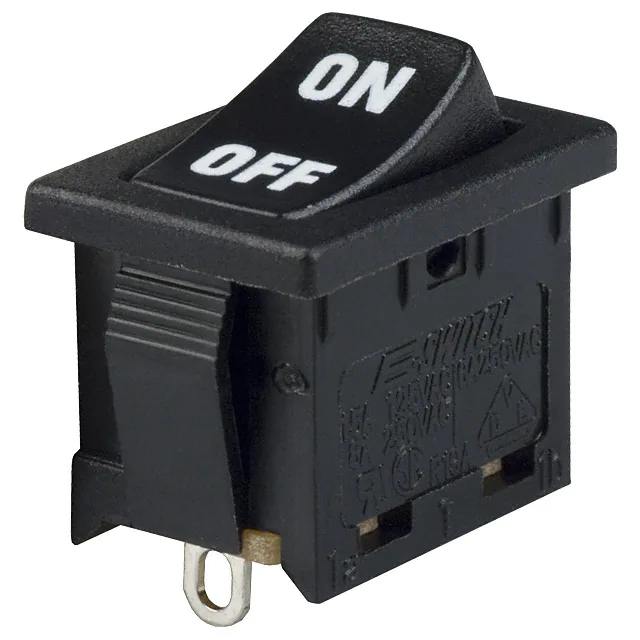

R1966ABLKBLKISSWITCH ROCKER SPST 15A 125V |
2,205 | - |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

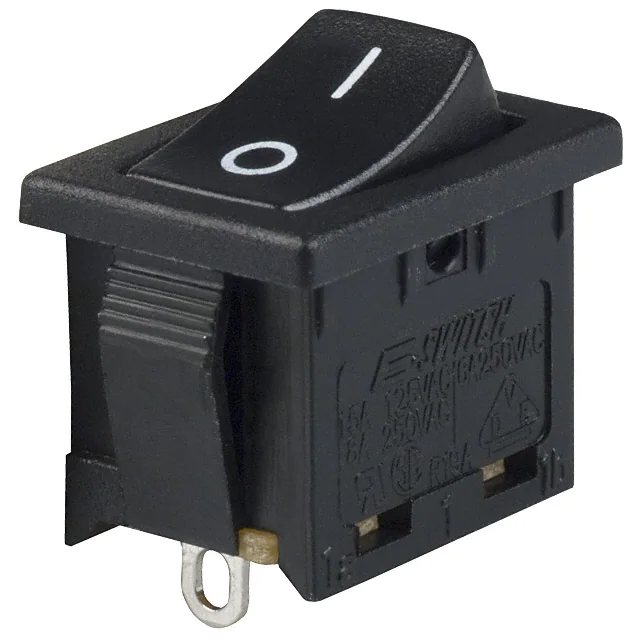

R1966ABLKBLKFSSWITCH ROCKER SPST 15A 125V |
2,058 | - |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

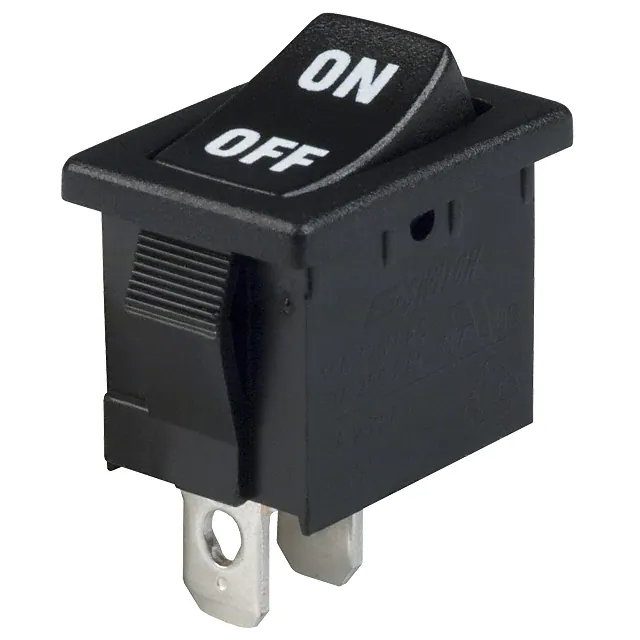

R1966ABLKBLKIFSWITCH ROCKER SPST 15A 125V |
1,161 | - |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

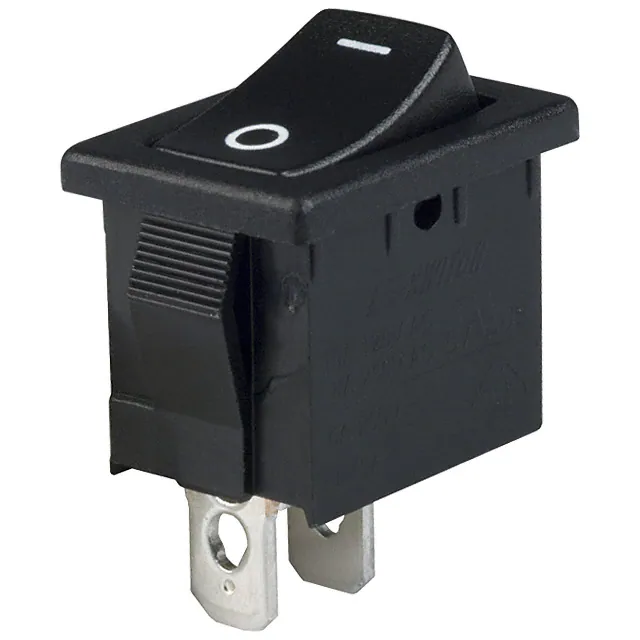

R1966ABLKBLKGFSWITCH ROCKER SPST 15A 125V |
480 | - |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
COM-11477SWITCH ROCKER SPST 6A 250V |
167 | - |
|
Datasheet | - | Bulk | Active | - | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | - | No Marking | - | - | Solder Lug | - | Tactile/Audible Feedback | - | - | - |
|
RR812C1121SWITCH ROCKER DPST 16A 125V |
5,656 | - |
|
Datasheet | RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
RB141D1121SWITCH ROCKER SPST 20A 125V |
2,443 | - |
|
Datasheet | RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|

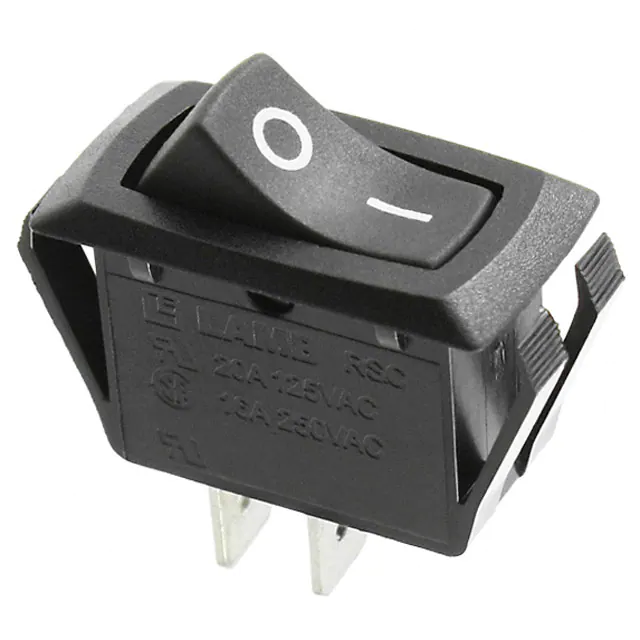

RSC141D1121SWITCH ROCKER SPST 20A 125V |
1,498 | - |
|
Datasheet | RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
RR3112ABLKBLKNFF0SWITCH ROCKER SPST 16A 125V |
982 | - |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|

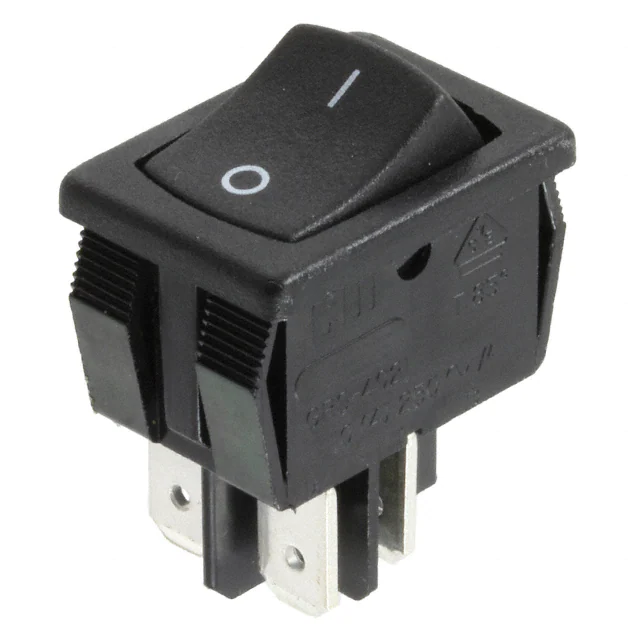

GRSV-4021-0006SWITCH ROCKER DPST 16A 125V |
3,584 | - |
|
Datasheet | 4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 10A (DC) | 125 V | 14 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

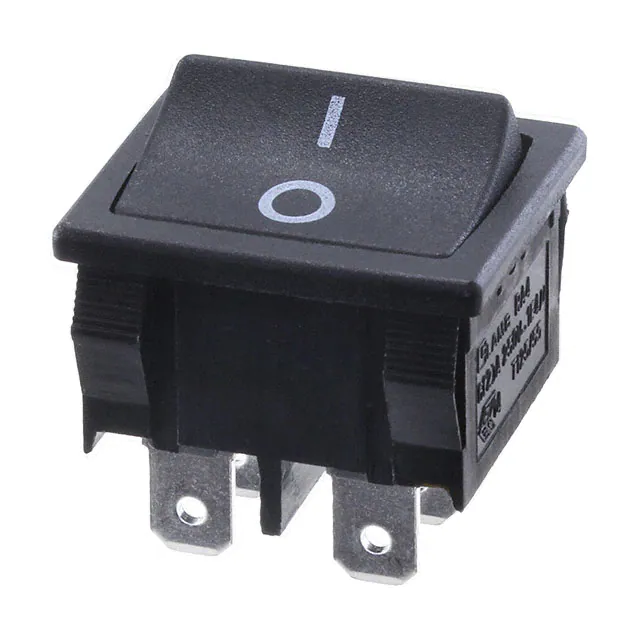

RA41231121SWITCH ROCKER DPST 10A 125V |
681 | - |
|
Datasheet | RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|

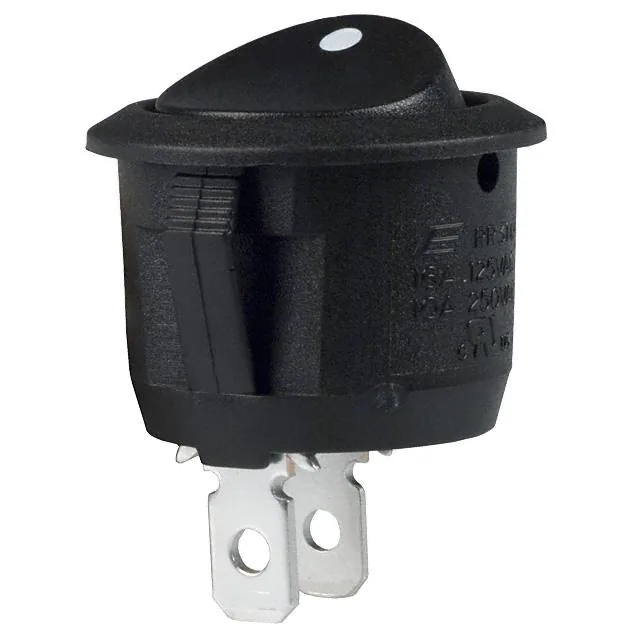

RR3112ABLKBLKNAF0SWITCH ROCKER SPST 16A 125V |
518 | - |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|

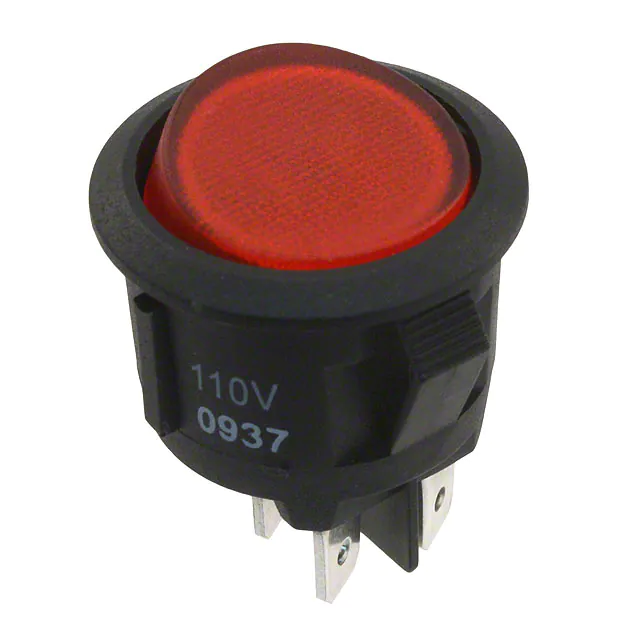

RRA12C1000-116SWITCH ROCKER DPST 15A 125V |
2,774 | - |
|
Datasheet | RRA, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL |
|

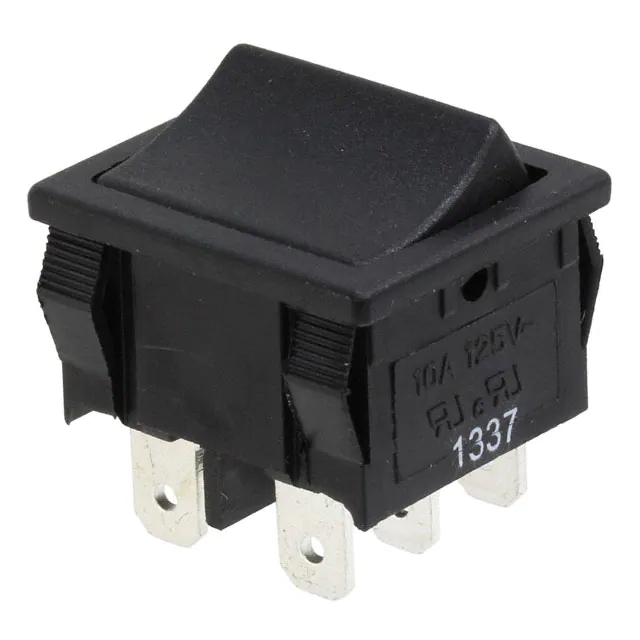

RA41G31100SWITCH ROCKER DPDT 10A 125V |
3,068 | - |
|
Datasheet | RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|

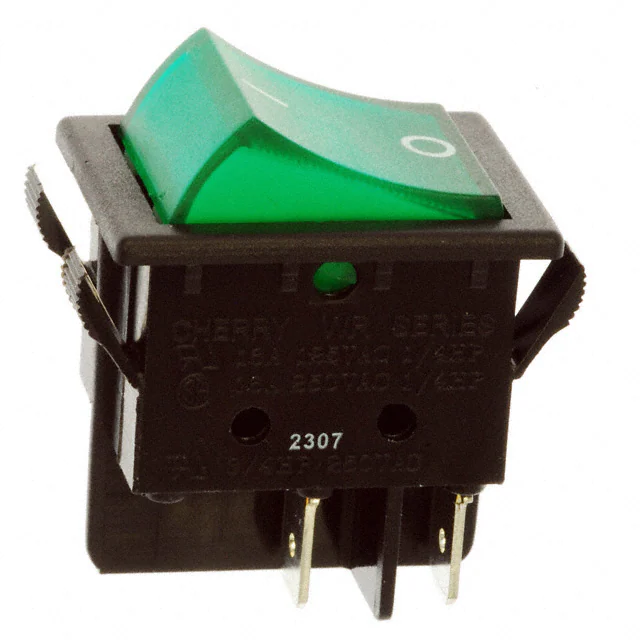

WRG32F2FBGLNSWITCH ROCKER DPST 16A 125V |
5,333 | - |
|
Datasheet | WR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
RB143D1100SWITCH ROCKER SPDT 20A 125V |
3,498 | - |
|
Datasheet | RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
RC1122DWCSWITCH ROCKER SPST 12A 250VAC |
665 |
1+：$1.32800 10+：$1.14800 25+：$1.08288 50+：$1.03584 200+：$0.94792 400+：$0.90666 600+：$0.88334 1000+：$0.85477 |
|
Datasheet | RC | Tray | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.50mm x 13.00mm | -40°C ~ 85°C | cURus |
|

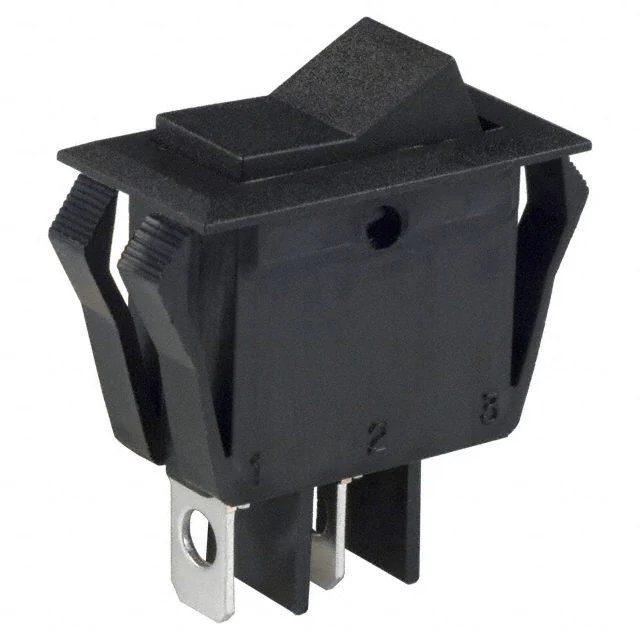

CL102J72S205QASWITCH ROCKER SPST 16A 125V |
210 | - |
|
Datasheet | CL | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.80mm x 14.00mm | -20°C ~ 80°C | cULus |
