Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSN23ASW40MINIATURE SLIDE |
3,895 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MSSA2350RGSWITCH SLIDE DP3T 0.4VA 20V |
4,846 | - |
|
Datasheet | MSSA | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.02mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
TSS11EG1PCSWITCH SLIDE SPDT 0.4VA 20V |
3,548 | - |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
TSS11EGPCSWITCH SLIDE SPDT 0.4VA 20V |
2,201 | - |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MS13LNW03FSWITCH SLIDE SPDT 6A 125V |
1,319 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

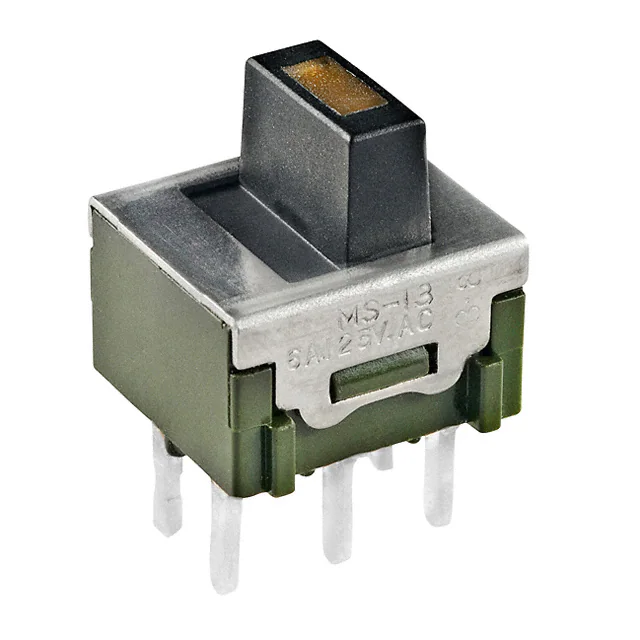

MS13LNW03ESWITCH SLIDE SPDT 6A 125V |
3,101 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1201M2S3CRE2SWITCH SLIDE DPDT 6A 120V |
3,363 | - |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
GH46S000001SLIDE SWITCH G TELECOM GRADE |
1,212 | - |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Panel Mount | Solder Lug | - |
|
|
GH49P010001SWITCH SLIDE DPDT 3A 30V |
2,970 | - |
|
Datasheet | G | Tube | Active | DPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSN24ASW13MINIATURE SLIDE |
2,216 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1825010-7SWITCH SLIDE 4PDT 0.4VA 20V |
1,169 | - |
|
Datasheet | ASE | Bulk | Active | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Surface Mount | Gull Wing | - |
|
|
MSN24AFG01SWITCH SLIDE |
2,199 | - |
|
Datasheet | MS | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Panel Mount | Solder Lug | - |
|
|
4-1825010-4SWITCH SLIDE 6PDT 300MA 115V |
2,490 | - |
|
Datasheet | ASE | Tube | Active | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Surface Mount | J Lead | - |
|
|
MSN22BSG30SWITCH SLIDE |
4,852 | - |
|
Datasheet | MS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
MSN23BSG13MINIATURE SLIDE |
3,791 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSN22ASG30MINIATURE SLIDE |
3,398 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GB36W010001SWITCH SLIDE SPDT 3A 30V |
4,618 | - |
|
Datasheet | G | Tube | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 7.25mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH46W080000SLIDE SWITCH G TELECOM GRADE |
3,899 | - |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
MSN24ASW30MINIATURE SLIDE |
4,639 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TSS11EG1RASWITCH SLIDE SPDT 0.4VA 20V |
2,498 | - |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
