Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25146NAH6SLIDE SWITCH 25000N PCB MOUNT |
1,574 | - |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | Flush | Silver | - | Through Hole | PC Pin | - |
|
|
MSN24ANG03MINIATURE SLIDE |
3,378 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSN24BNG03MINIATURE SLIDE |
3,167 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSSA4350RSWITCH SLIDE 4P3T 300MA 125V |
4,703 | - |
|
Datasheet | MSSA | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 9.02mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

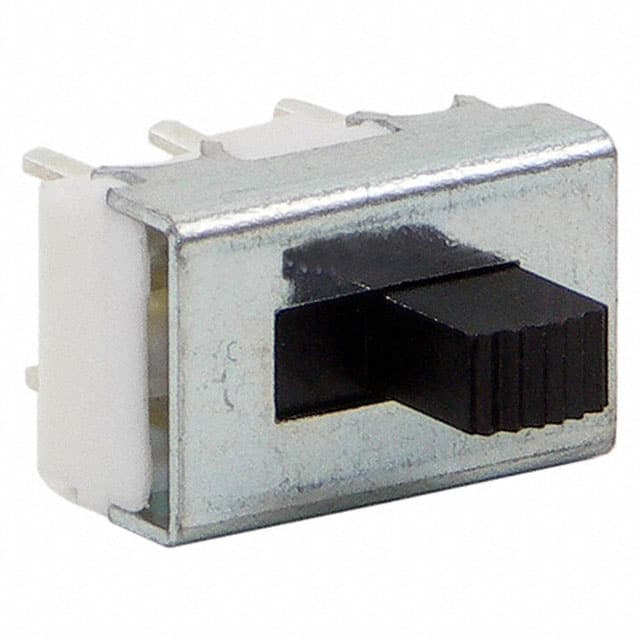

C56206L2XSWITCH SLIDE DPDT 500MA 125V |
1,013 | - |
|
Datasheet | 56200 | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
MSSA211NGSWITCH SLIDE DPDT 0.4VA 20V |
1,957 | - |
|
Datasheet | MSSA-01 | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSN23BSG30MINIATURE SLIDE |
1,745 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSN23ASG30SWITCH SLIDE |
1,854 | - |
|
Datasheet | MS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
1825014-1SWITCH SLIDE SPDTX2 0.4VA 20V |
3,036 | - |
|
Datasheet | TSS | Tube | Active | SPDT x 2 | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
4-1825010-0SWITCH SLIDE 6PDT |
4,619 | - |
|
Datasheet | ASE | Bulk | Active | 6PDT | - | On-On | - | - | - | Standard | - | - | - | Through Hole, Right Angle | PC Pin | - |
|
|
GH49P000001SLIDE SWITCH G TELECOM GRADE |
4,989 | - |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
MSN22BSG40SWITCH SLIDE |
2,088 | - |
|
Datasheet | MS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
GH46P011201SWITCH SLIDE DPDT 3A 30V |
2,473 | - |
|
Datasheet | G | Tube | Active | DPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
TSD21DDG1RASWITCH SLIDE SPDTX2 0.4VA 20V |
1,100 | - |
|
Datasheet | TSS | Bulk | Active | SPDT x 2 | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSN12LFW01FMINIATURE ILLUMINATED SLIDE |
1,084 | - |
|
Datasheet | M | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
MSN12LFW01CMINIATURE ILLUMINATED SLIDE |
1,118 | - |
|
Datasheet | M | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
MSSA4350SWITCH SLIDE 4P3T 300MA 125V |
1,341 | - |
|
Datasheet | MSSA | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25149NAHSWITCH SLIDE DPDT 4A 125V |
2,349 | - |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
GH46Y010001SLIDE SWITCH G TELECOM GRADE |
2,725 | - |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | - |
|
|
25549NA6SWITCH SLIDE DPDT 4A 125V |
1,577 | - |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
