Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825010-7SWITCH SLIDE DPDT 0.4VA 20V |
3,552 | - |
|
Datasheet | ASE | Tube | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Surface Mount | J Lead | - |
|

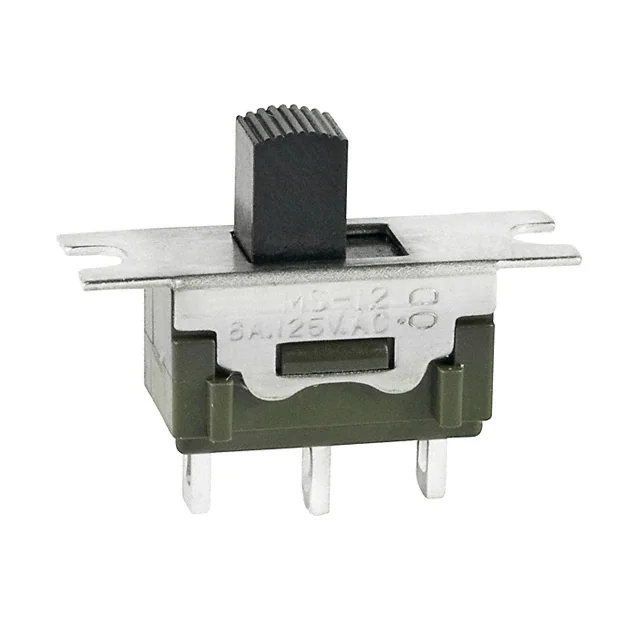

MS12AFW01SWITCH SLIDE SPDT 6A 125V |
2,317 | - |
|
Datasheet | MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
1825289-9SWITCH SLIDE DP3T 0.4VA 20V |
1,830 | - |
|
Datasheet | MHS | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825011-4SWITCH SLIDE DPDT 0.4VA 20V |
3,927 | - |
|
Datasheet | ASF | Tube | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
ASE 1 D-RASWITCH SLIDE 1-POLE ON-ON |
444 | - |
|
Datasheet | ASE | Box | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard | 2.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|
AS12AWSWITCH SLIDE SPDT 0.4VA 28V |
3,687 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

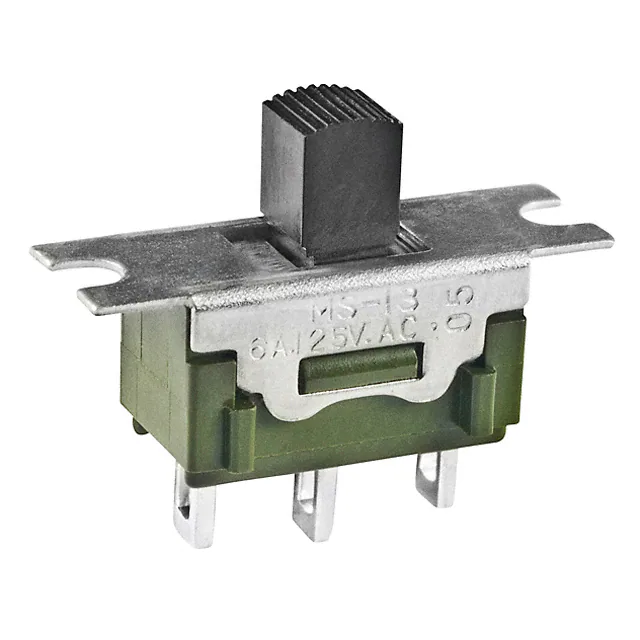

MS13AFW01SWITCH SLIDE SPDT 6A 125V |
1,655 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
AS12CWSWITCH SLIDE SPDT 0.4VA 28V |
4,215 | - |
|
Datasheet | AS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
|
AS12ABSWITCH SLIDE SPDT 0.4VA 28V |
3,108 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS12CBSWITCH SLIDE SPDT 0.4VA 28V |
1,898 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

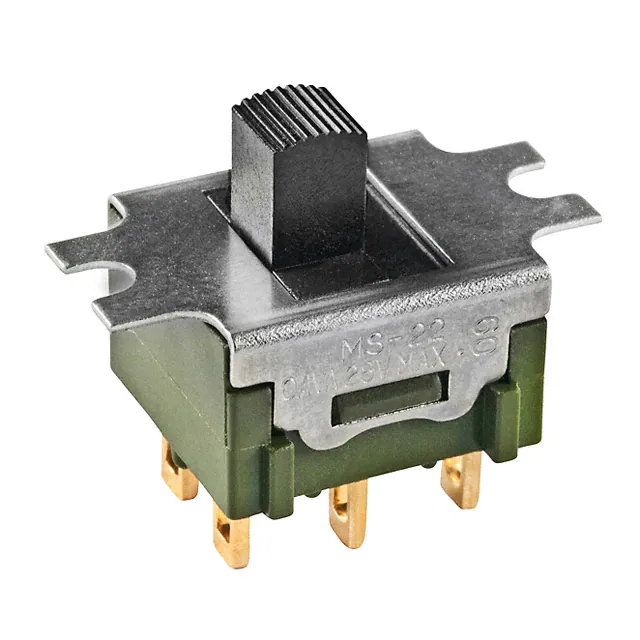

MS22AFG01SWITCH SLIDE DPDT 0.4VA 28V |
125 | - |
|
Datasheet | MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
AS13CPSWITCH SLIDE SPDT 0.4VA 28V |
3,168 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS13CWSWITCH SLIDE SPDT 0.4VA 28V |
1,143 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
MS12ANG03SWITCH SLIDE SPDT 0.4VA 28V |
3,212 | - |
|
Datasheet | MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS12CV1SWITCH SLIDE SPDT 0.4VA 28V |
3,630 | - |
|
Datasheet | A | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.81mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
AS13ABSWITCH SLIDE SPDT 0.4VA 28V |
3,516 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS13CBSWITCH SLIDE SPDT 0.4VA 28V |
1,692 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
GH36Y010001SWITCH SLIDE SPDT 3A 30V |
1,290 |
50+：$7.26768 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS13CHSWITCH SLIDE SPDT 0.4VA 28V |
2,487 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MS12ASG13SWITCH SLIDE SPDT 0.4VA 28V |
105 | - |
|
Datasheet | MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
