Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS22SDH2LESWITCH SLIDE DPDT 100MA 30V |
477 | - |
|
Datasheet | SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
AS24AVSWITCH SLIDE SP3T 0.4VA 28V |
2,766 | - |
|
Datasheet | AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Jumper needed to achieve triple throw |
|

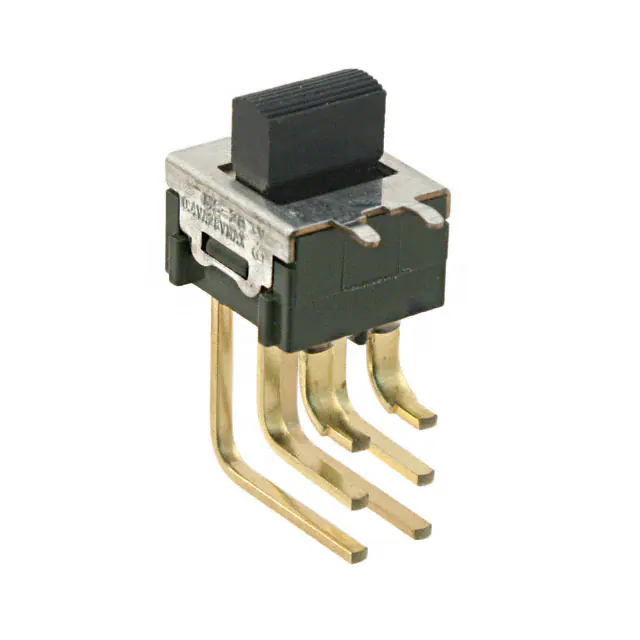

MS20BSG40SWITCH SLIDE SP3T 0.4VA 28V |
450 | - |
|
Datasheet | MS | Tray | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Jumper needed to achieve triple throw |
|
MS22BSW40SWITCH SLIDE DPDT 6A 125V |
1,227 | - |
|
Datasheet | MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
1825160-2SWITCH SLIDE SP3T 300MA 125V |
4,837 | - |
|
Datasheet | STS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825194-1SWITCH SLIDE SP3T 300MA 125V |
3,505 | - |
|
Datasheet | MSSA | Bulk | Active | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 10.16mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MSSA3350SWITCH SLIDE 3P3T 300MA 125V |
2,014 | - |
|
Datasheet | MSSA | Bulk | Obsolete | 3P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

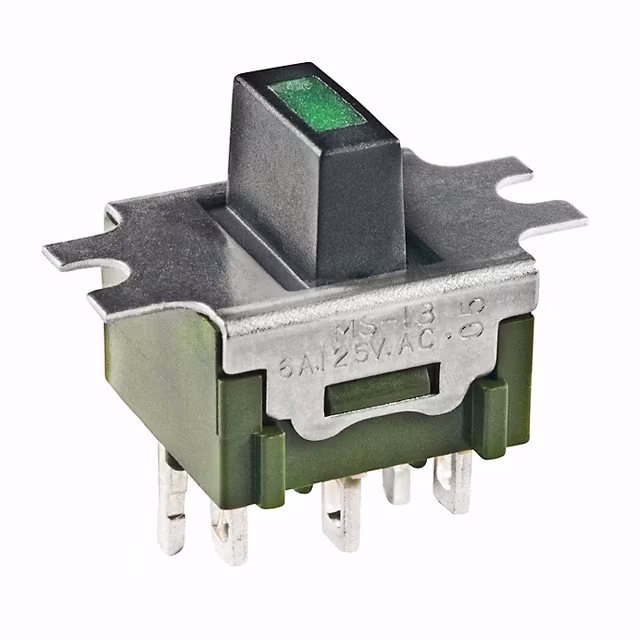

MS13LFW01FSWITCH SLIDE SPDT 6A 125V |
2,555 | - |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
4-1437508-6SWITCH SLIDE |
113 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSSA2450SWITCH SLIDE DP4T 300MA 125V |
1,734 | - |
|
Datasheet | MSSA | Bulk | Obsolete | DP4T | Shorting (MBB) | On-On-On-On | 300mA (AC) | 125 V | - | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA4450SWITCH SLIDE 4P4T 300MA 125V |
4,003 | - |
|
Datasheet | MSSA | Bulk | Obsolete | 4P4T | Shorting (MBB) | On-On-On-On | 300mA (AC) | 125 V | - | Standard | 10.41mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSS430004Slide Switch, 4P3T, On-on-on, La |
577 | - |
|
Datasheet | MSS | Bulk | Active | 4P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 5.50mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MHS133GRA04Slide Switches SP3T SLIDE SWITCH |
440 | - |
|
Datasheet | - | Tray | Active | SP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
1101M2S3CQE1SWITCH SLIDE SPDT 6A 120V |
460 | - |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
TS01CBESLIDE |
435 | - |
|
Datasheet | TS | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
ASE2204SWITCH SLIDE DPDT 0.3A 115V |
2,745 | - |
|
Datasheet | ASE/F | Tray | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
1-1437579-0SWITCH SLIDE SPDT 0.4VA 20V |
707 | - |
|
Datasheet | TSS | Box | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
TSS21NGPCSWITCH SLIDE DPDT 0.4VA 20V |
500 | - |
|
Datasheet | - | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
|
1-1437579-9SWITCH SLIDE DPDT 0.4VA 20V |
500 | - |
|
Datasheet | - | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
|
|
1-1437579-9SWITCH SLIDE DPDT 0.4VA 20V |
340 | - |
|
Datasheet | TSS | Box | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | - |
