Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

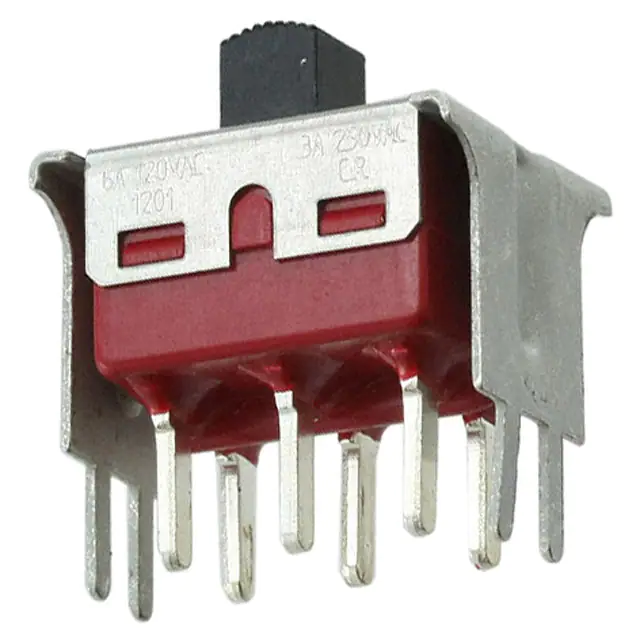

1201M2S3V3QE2SWITCH SLIDE DPDT 6A 120V |
4,431 | - |
|
Datasheet | 1000 | Tray | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
25346NA6SWITCH SLIDE DPDT 4A 125V |
4,027 | - |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
SQR31103WHSWITCH SLIDE SPST 2.5A 120V |
1,975 | - |
|
Datasheet | Square D, X | Box | Active | SPST | Not Specified | - | 2.5A (AC) | 120 V | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
|
SQR31103BKSWITCH SLIDE SPST 2.5A 120V |
1,811 | - |
|
Datasheet | Square D, X | Box | Active | SPST | Not Specified | - | 2.5A (AC) | 120 V | - | Flush | - | - | - | Panel Mount | Screw Terminal | - |
|
GF-126-0119SWITCH SLIDE DPDT 500MA 125V |
228 | - |
|
Datasheet | GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

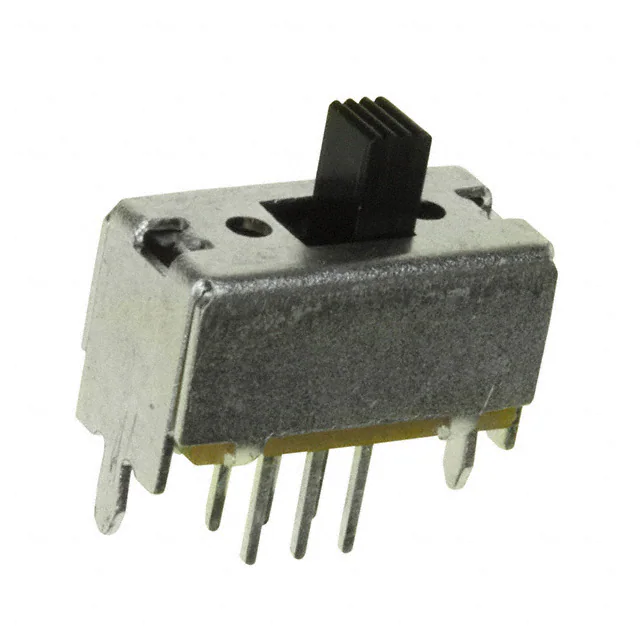

OS202011MV4QS1SWITCH SLIDE DPDT 100MA 30V |
864 | - |
|
Datasheet | OS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

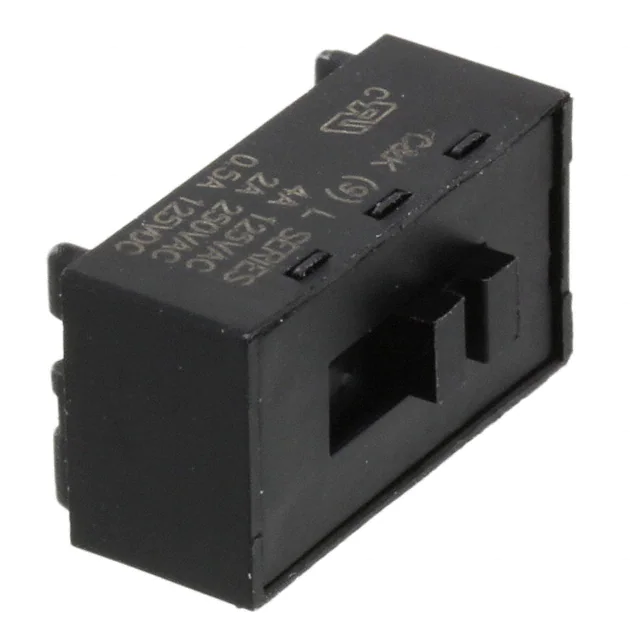

L101121MS02QSWITCH SLIDE SPST 4A 125V |
2,383 | - |
|
Datasheet | L | Bulk | Active | SPST | Not Specified | On-Off | 4A (AC/DC) | 125 V | 28 V | Screwdriver Slot | 1.65mm | Copper | Silver | Through Hole | PC Pin | - |
|
NK236WSWITCH SLIDE SPDT 500MA 12V |
3,429 | - |
|
Datasheet | NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Flush | - | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|
|
500SDP1S4M1REBSWITCH SLIDE DPDT 0.4VA 20V |
2,479 | - |
|
Datasheet | 500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.56mm | Copper Alloy | Gold | Panel Mount | Solder Lug | - |
|
48ASSP3S1M2QBTSWITCH SLIDE SPDT 5A 125V |
3,977 | - |
|
Datasheet | 48A | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
48ASSP1S2M6RBTSWITCH SLIDE SPDT 0.4VA 20V |
1,262 | - |
|
Datasheet | 48A | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 7.24mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
V70212SS05QESWITCH SLIDE SPDT 10A 125V |
1,505 | - |
|
Datasheet | V | Tray | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | 115V-230V Marking, Epoxy Sealed Terminals |
|
L212132MV02QESWITCH SLIDE DPDT 4A 125V |
4,402 | - |
|
Datasheet | L | Bulk | Active | DPDT | Not Specified | On-Mom | 4A (AC/DC) | 125 V | 28 V | Plunger for Cap | 8.38mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
L102011ML04BSWITCH SLIDE SPDT 0.4VA 20V |
3,052 | - |
|
Datasheet | L | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|
S602131MS02QSWITCH SLIDE DPDT 12A 125V |
3,452 | - |
|
Datasheet | S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 12A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole | PC Pin | No Marking |
|

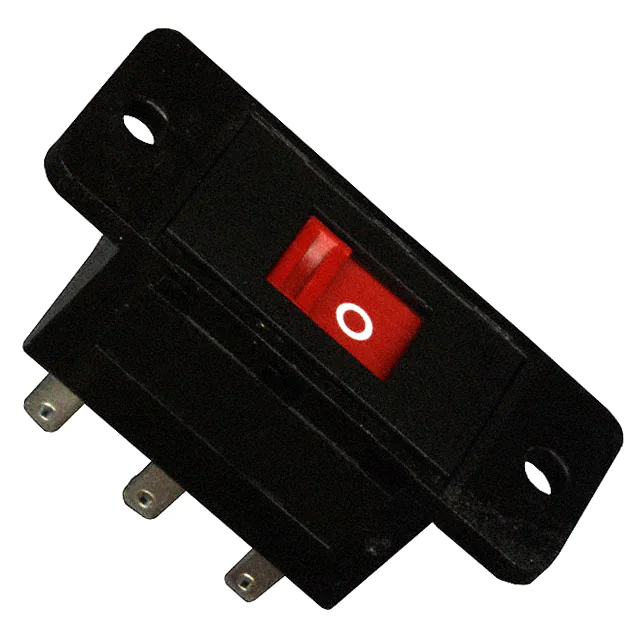

V80214SS05QSWITCH SLIDE DPDT 10A 125V |
100 | - |
|
Datasheet | V | Bulk | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | O - Marking |
|
L203121TS03QSWITCH SLIDE DP3T 4A 125V |
1,166 | - |
|
Datasheet | L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Screwdriver Slot | 1.65mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
1101M2S3V4BE2SWITCH SLIDE SPDT 0.4VA 20V |
2,890 | - |
|
Datasheet | 1000 | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
1103M2S4CQE2SWITCH SLIDE SPDT 6A 120V |
2,113 | - |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

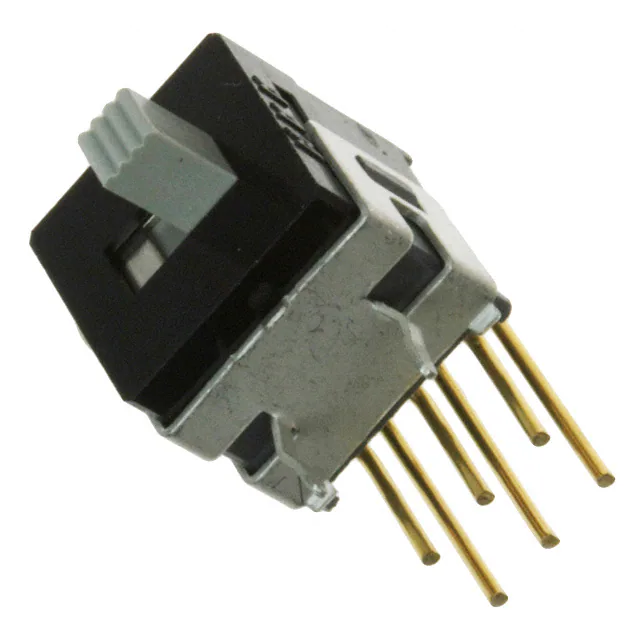

AS22CHSWITCH SLIDE DPDT 0.4VA 28V |
3,573 | - |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
