Slide Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S202031SSWCQSWITCH SLIDE DPDT 6A 125V |
3,083 | - |
|
Datasheet | S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Silver | Panel Mount | Wire Leads | - |
|
AS13AHSWITCH SLIDE SPDT 0.4VA 28V |
2,347 | - |
|
Datasheet | AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

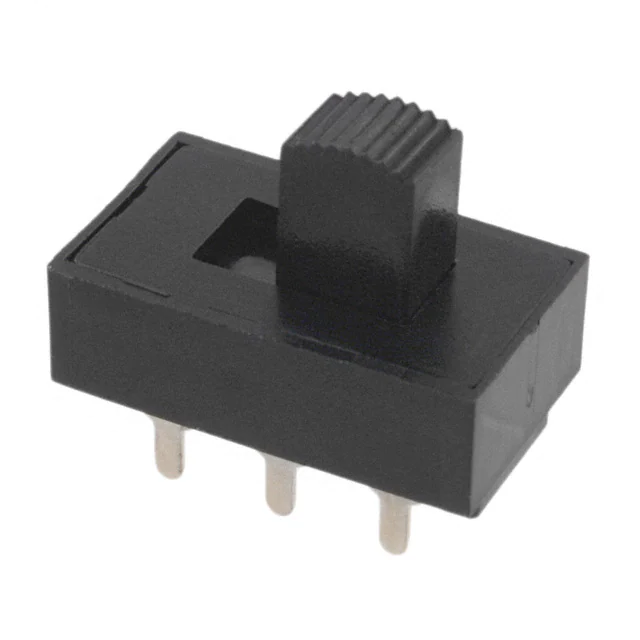

S202031MS02QESWITCH SLIDE DPDT 6A 125V |
2,813 | - |
|
Datasheet | S | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1101M2S5CBE2SWITCH SLIDE SPDT 0.4VA 20V |
3,442 | - |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.40mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

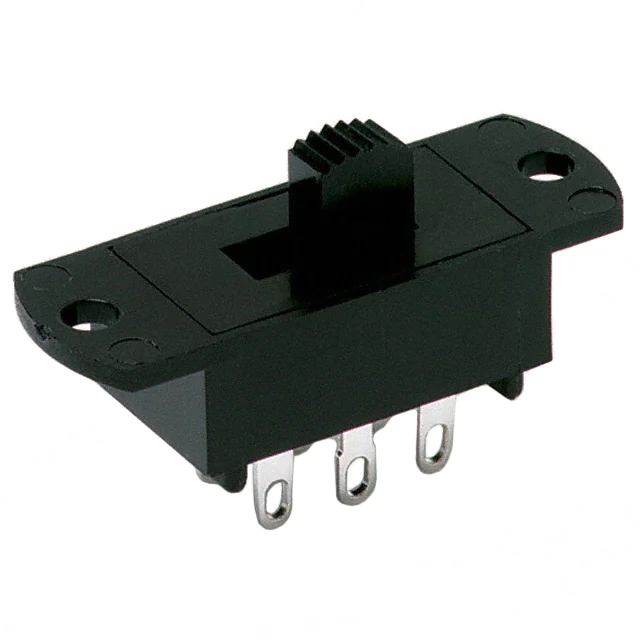

L202011SS03QSWITCH SLIDE DPDT 4A 125V |
1,061 | - |
|
Datasheet | L | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

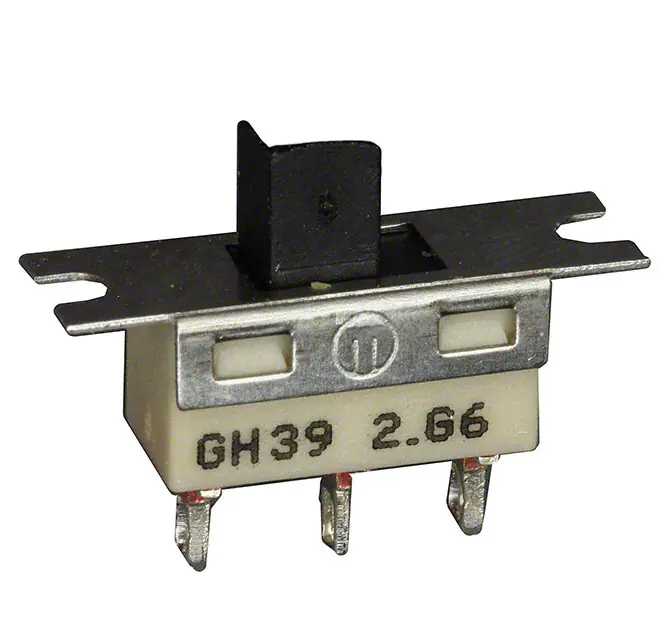

GH39S010001SWITCH SLIDE SPDT 3A 30V |
1,041 | - |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
1101M1S3ZGE2SWITCH SLIDE SPDT 6A 120V |
3,422 | - |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Gold | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|

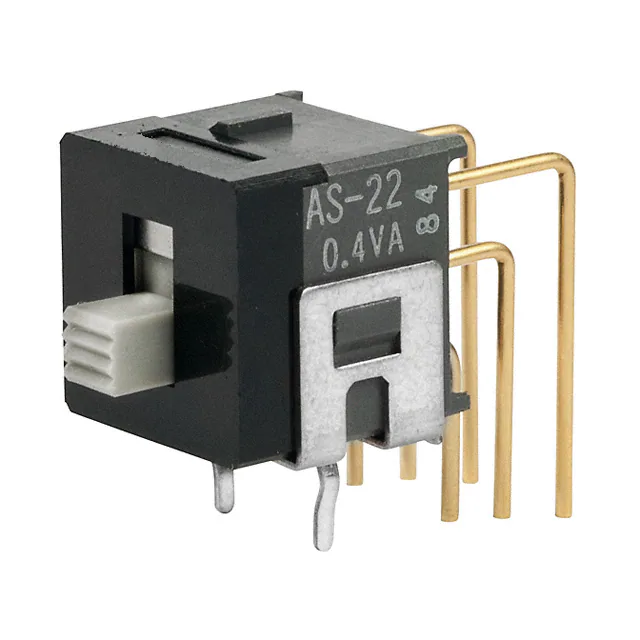

AS22AVSWITCH SLIDE DPDT 0.4VA 28V |
4,108 | - |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
AS23BBSWITCH SLIDE DPDT 0.4VA 28V |
4,449 | - |
|
Datasheet | AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
V80214MS02QESWITCH SLIDE DPDT 10A 125V |
2,909 | - |
|
Datasheet | V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Through Hole | PC Pin | O - Marking, Epoxy Sealed Terminals |
|

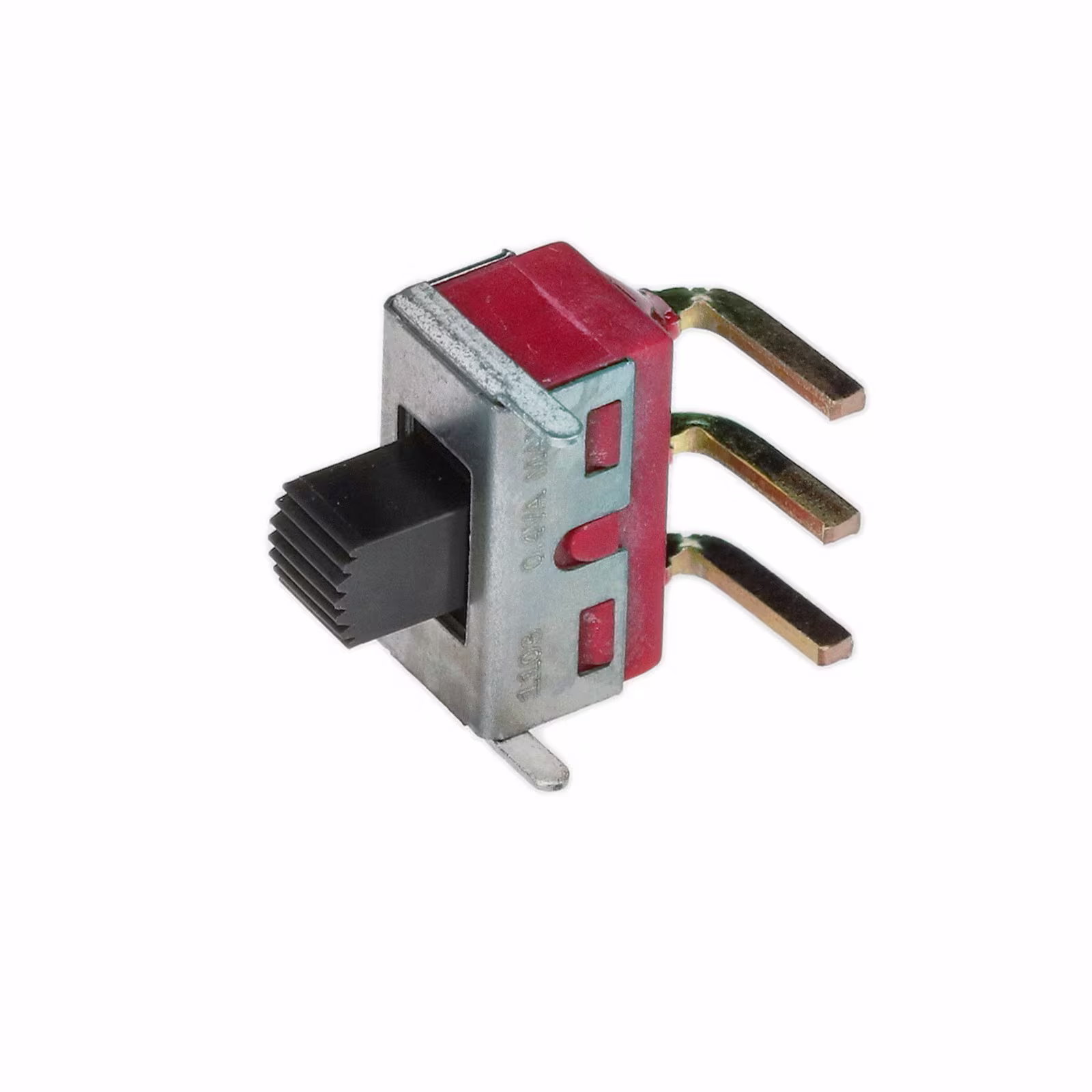

1103M2S3ABE2SWITCH SLIDE SPDT 0.4VA 20V |
2,680 | - |
|
Datasheet | 1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
1101M2S3WBE2SWITCH SLIDE SPDT 0.4VA 20V |
3,025 | - |
|
Datasheet | 1000 | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Through Hole | Wire Wrap | Black Actuator, Epoxy Sealed Terminals |
|
TS01AGESWITCH SLIDE SPDT 3A 120V |
3,088 | - |
|
Datasheet | TS | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

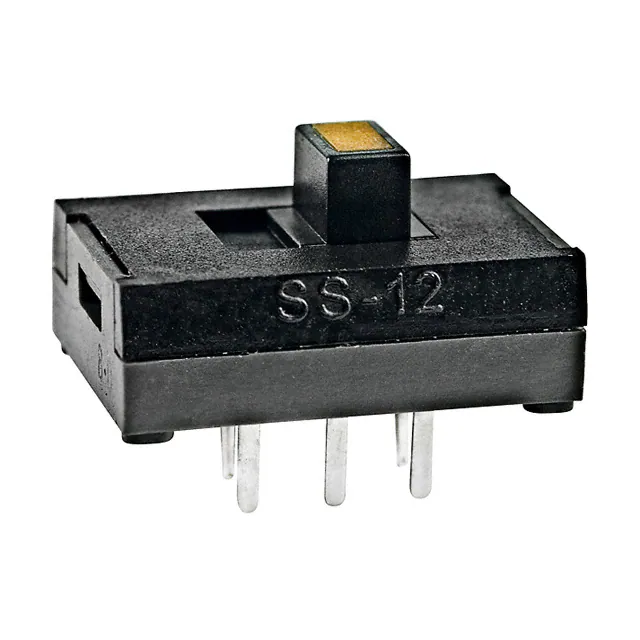

SS12SDP2LESWITCH SLIDE SPDT 100MA 30V |
3,023 | - |
|
Datasheet | SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

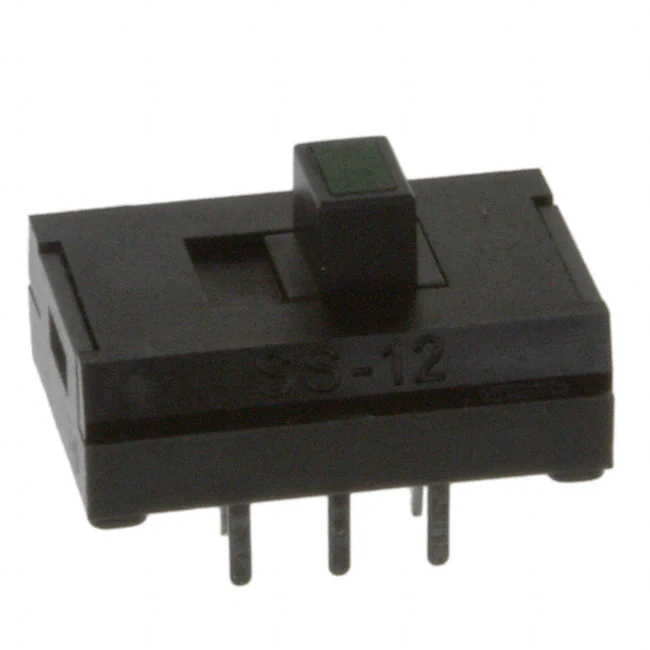

SS12SDP2LFSWITCH SLIDE SPDT 100MA 30V |
2,489 | - |
|
Datasheet | SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

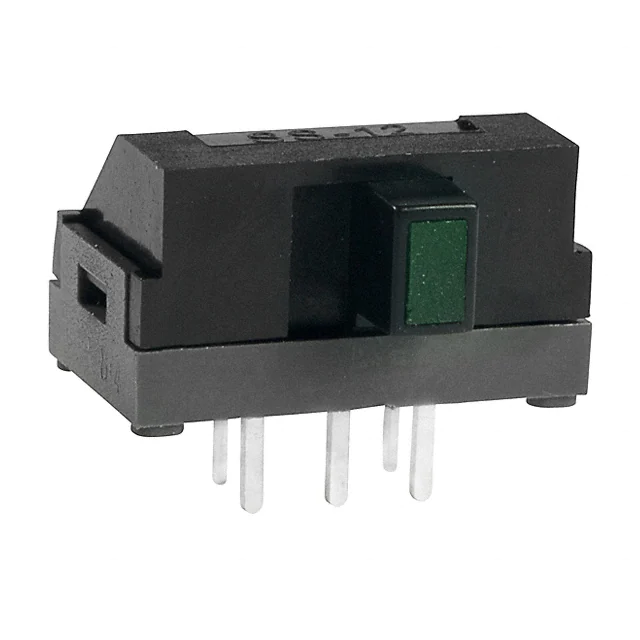

SS12SDH2LFSWITCH SLIDE SPDT 100MA 30V |
4,685 | - |
|
Datasheet | SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|

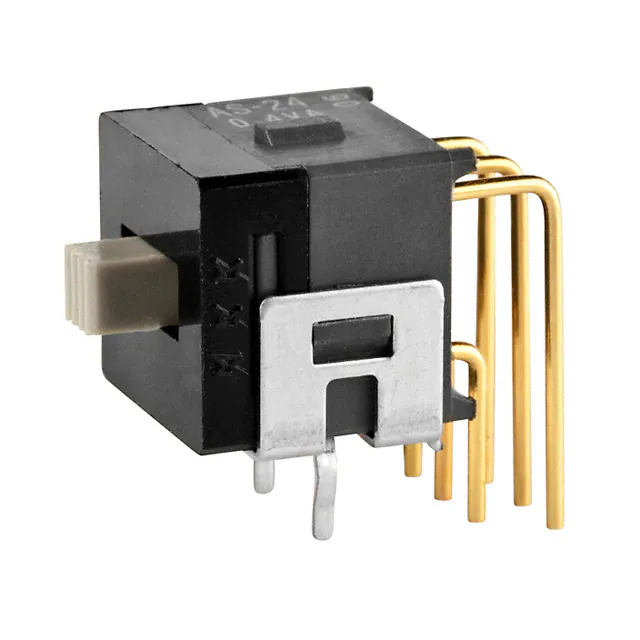

AS24AHSWITCH SLIDE SP3T 0.4VA 28V |
1,116 | - |
|
Datasheet | AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Jumper needed to achieve triple throw |
|
1201M2S4AQE2SWITCH SLIDE DPDT 6A 120V |
3,394 | - |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper | Silver | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

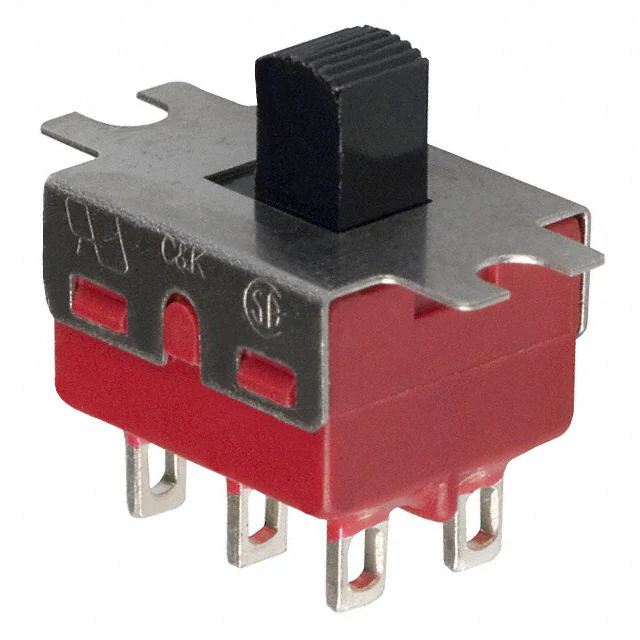

1201M1S3ZQE2SWITCH SLIDE DPDT 6A 120V |
4,318 | - |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
1201M2S3ABE2SWITCH SLIDE DPDT 0.4VA 20V |
1,691 | - |
|
Datasheet | 1000 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
