Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

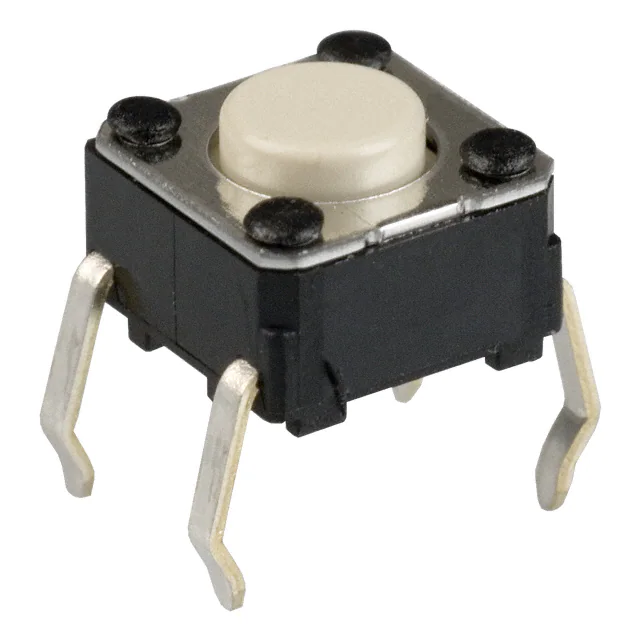

B3F-1000SWITCH TACTILE SPST-NO 0.05A 24V |
26,273 |
1+：$0.28000 10+：$0.23920 25+：$0.22400 100+：$0.20048 250+：$0.18579 500+：$0.17533 1500+：$0.16020 3000+：$0.15167 6000+：$0.14395 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|

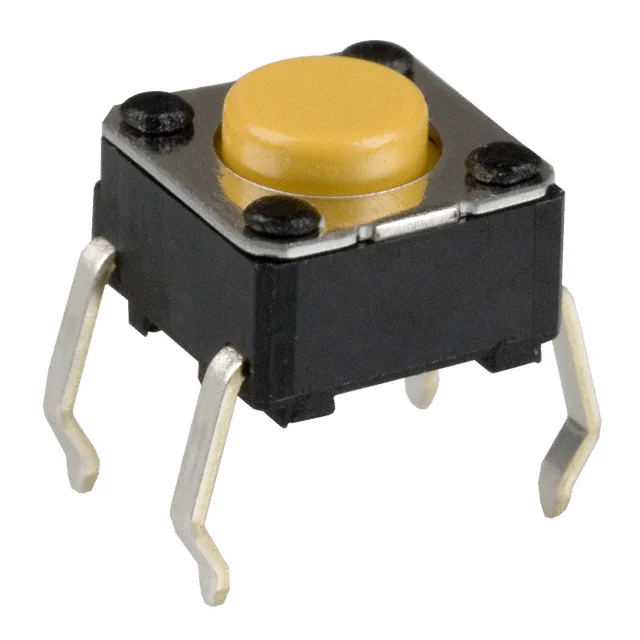

B3F-1002SWITCH TACTILE SPST-NO 0.05A 24V |
56,844 |
1+：$0.35200 10+：$0.30720 25+：$0.28704 100+：$0.25688 250+：$0.23795 500+：$0.22458 1500+：$0.20532 3000+：$0.19450 6000+：$0.18474 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|

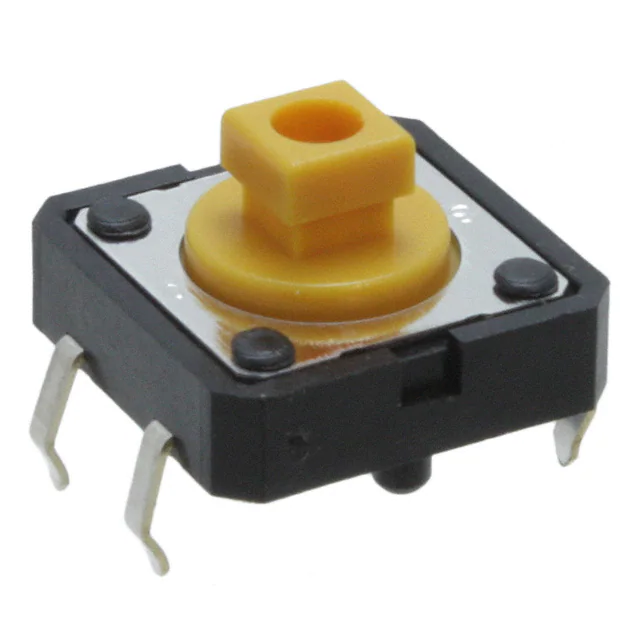

B3F-4055SWITCH TACTILE SPST-NO 0.05A 24V |
453,805 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
B3F-4050SWITCH TACTILE SPST-NO 0.05A 24V |
32,650 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | - | -25°C ~ 70°C |
|
B3F-6000SWITCH TACTILE SPST-NO 0.05A 24V |
14,092 | - |
|
Datasheet | B3F | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|

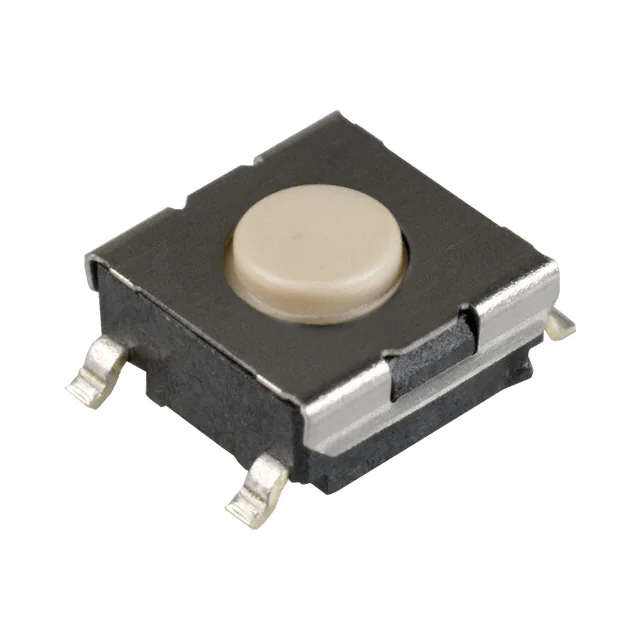

B3FS-1002PSWITCH TACTILE SPST-NO 0.05A 24V |
3,110 | - |
|
Datasheet | B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
B3SL-1002PSWITCH TACTILE SPST-NO 0.05A 12V |
74,068 | - |
|
Datasheet | B3SL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 90°C |
|

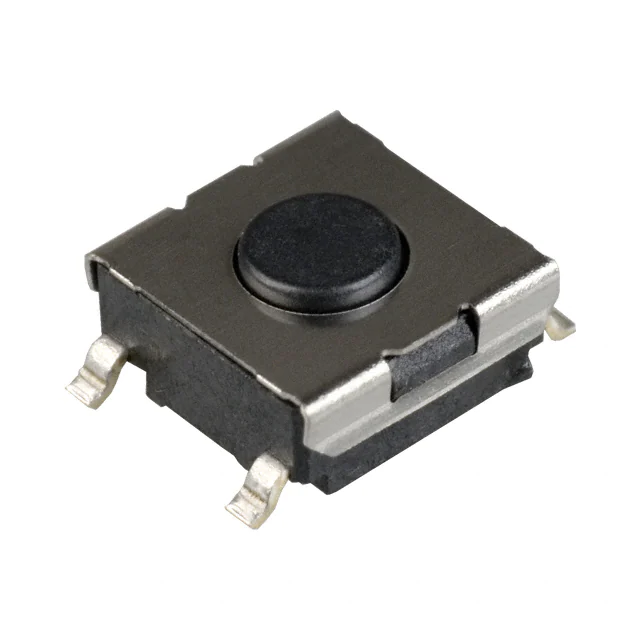

B3FS-1000PSWITCH TACTILE SPST-NO 0.05A 24V |
48,509 | - |
|
Datasheet | B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|

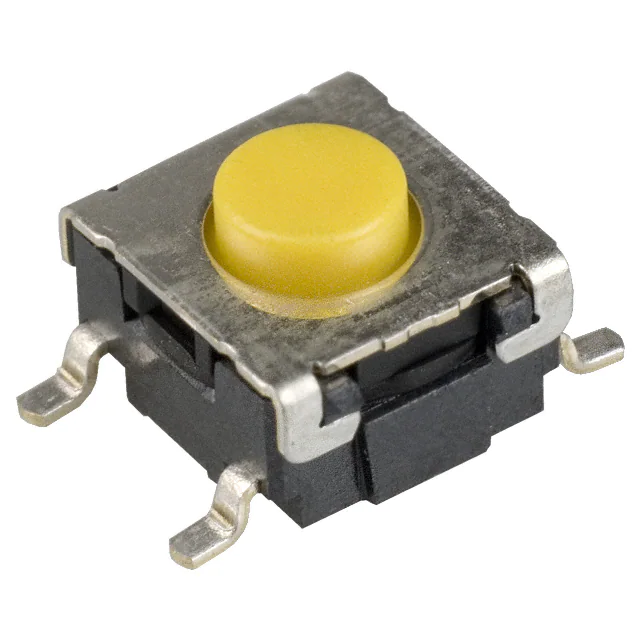

B3S-1002PSWITCH TACTILE SPST-NO 0.05A 24V |
44,330 |
1+：$0.79200 10+：$0.67200 25+：$0.62528 100+：$0.55760 250+：$0.51654 500+：$0.48803 |
|
Datasheet | B3S | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.60mm x 6.00mm | Non-Illuminated | - | - | 230gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 70°C |
|

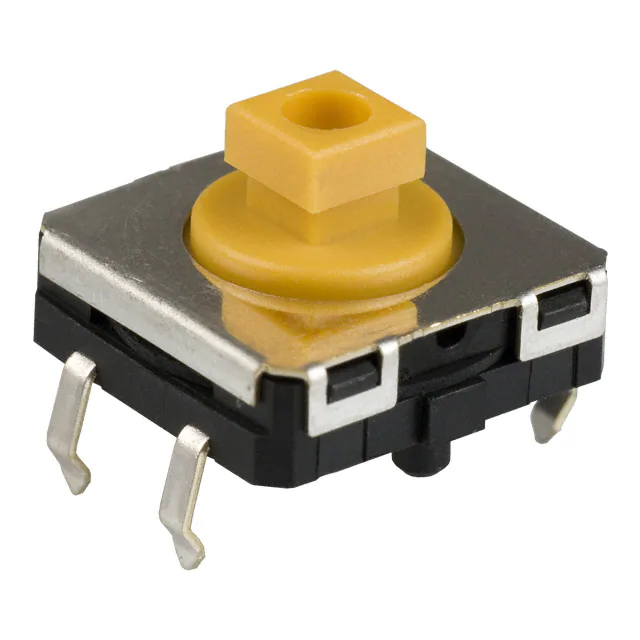

B3W-4055SWITCH TACTILE SPST-NO 0.05A 24V |
92,169 | - |
|
Datasheet | B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
