Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

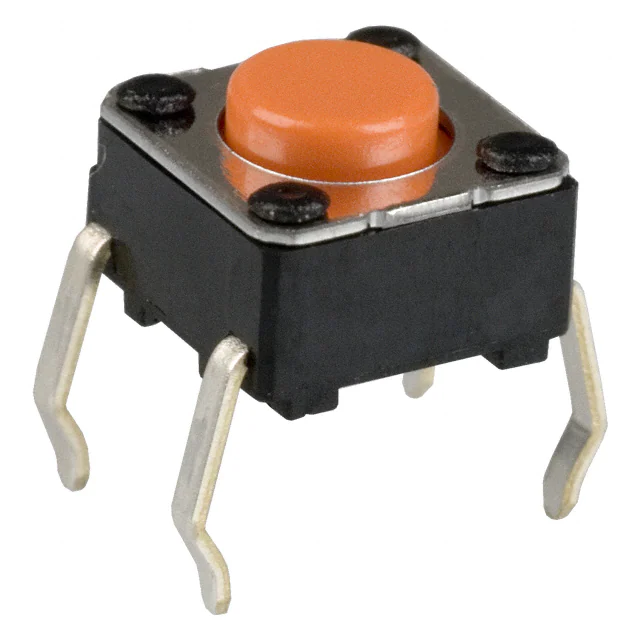

B3F-1005SWITCH TACTILE SPST-NO 0.05A 24V |
7,812 |
1+：$0.32800 10+：$0.28320 25+：$0.26432 100+：$0.23632 250+：$0.21898 500+：$0.20666 1500+：$0.18892 3000+：$0.17895 6000+：$0.16996 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
B3F-1102SWITCH TACTILE SPST-NO 0.05A 24V |
1,109 | - |
|
Datasheet | B3F | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | Grounding Pin | -25°C ~ 70°C |
|
B3F-1060SWITCH TACTILE SPST-NO 0.05A 24V |
5,121 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
B3F-1075SWITCH TACTILE SPST-NO 0.05A 24V |
17,397 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|

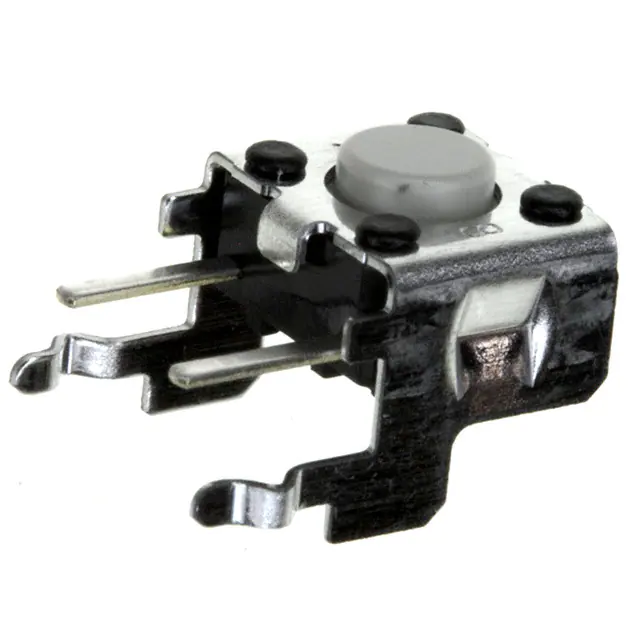

B3F-3100SWITCH TACTILE SPST-NO 0.05A 24V |
12,230 |
1+：$0.45600 10+：$0.39360 25+：$0.36704 100+：$0.32800 250+：$0.30387 500+：$0.28683 1000+：$0.27106 3000+：$0.24884 5000+：$0.23970 |
|
Datasheet | B3F | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -25°C ~ 70°C |
|

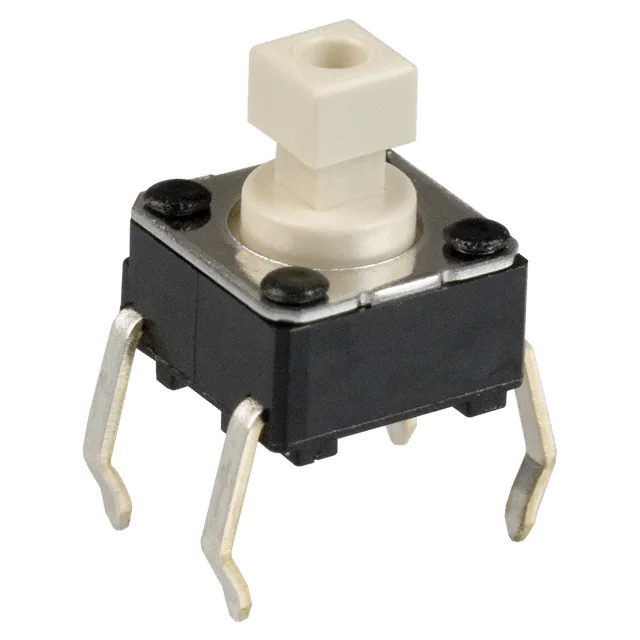

B3F-1050SWITCH TACTILE SPST-NO 0.05A 24V |
5,640 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
B3F-6020SWITCH TACTILE SPST-NO 0.05A 24V |
4,124 | - |
|
Datasheet | B3F | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|

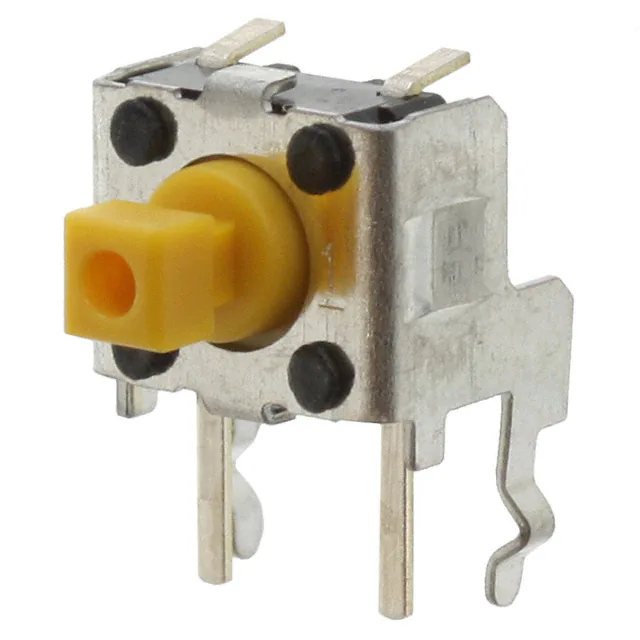

B3F-3152SWITCH TACTILE SPST-NO 0.05A 24V |
55,783 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 150gf | - | Grounding Pin | -25°C ~ 70°C |
|
B3S-1100PSWITCH TACTILE SPST-NO 0.05A 24V |
51,681 | - |
|
Datasheet | B3S | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.60mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Grounding Pin, Sealed - Fully | -25°C ~ 70°C |
|
B3F-1006SWITCH TACTILE SPST-NO 0.05A 24V |
13,072 | - |
|
Datasheet | B3F | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 500gf | - | - | -25°C ~ 70°C |
